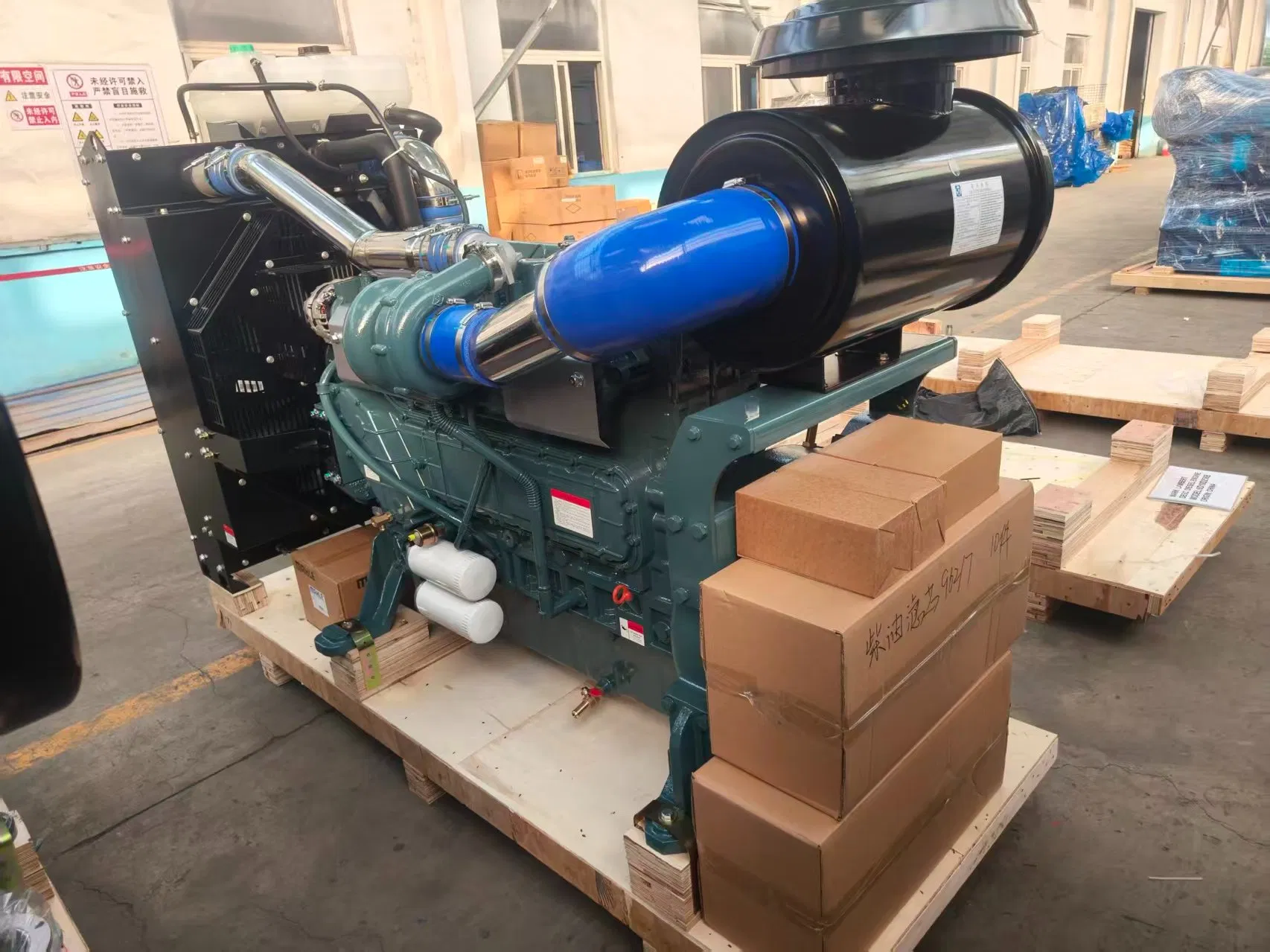

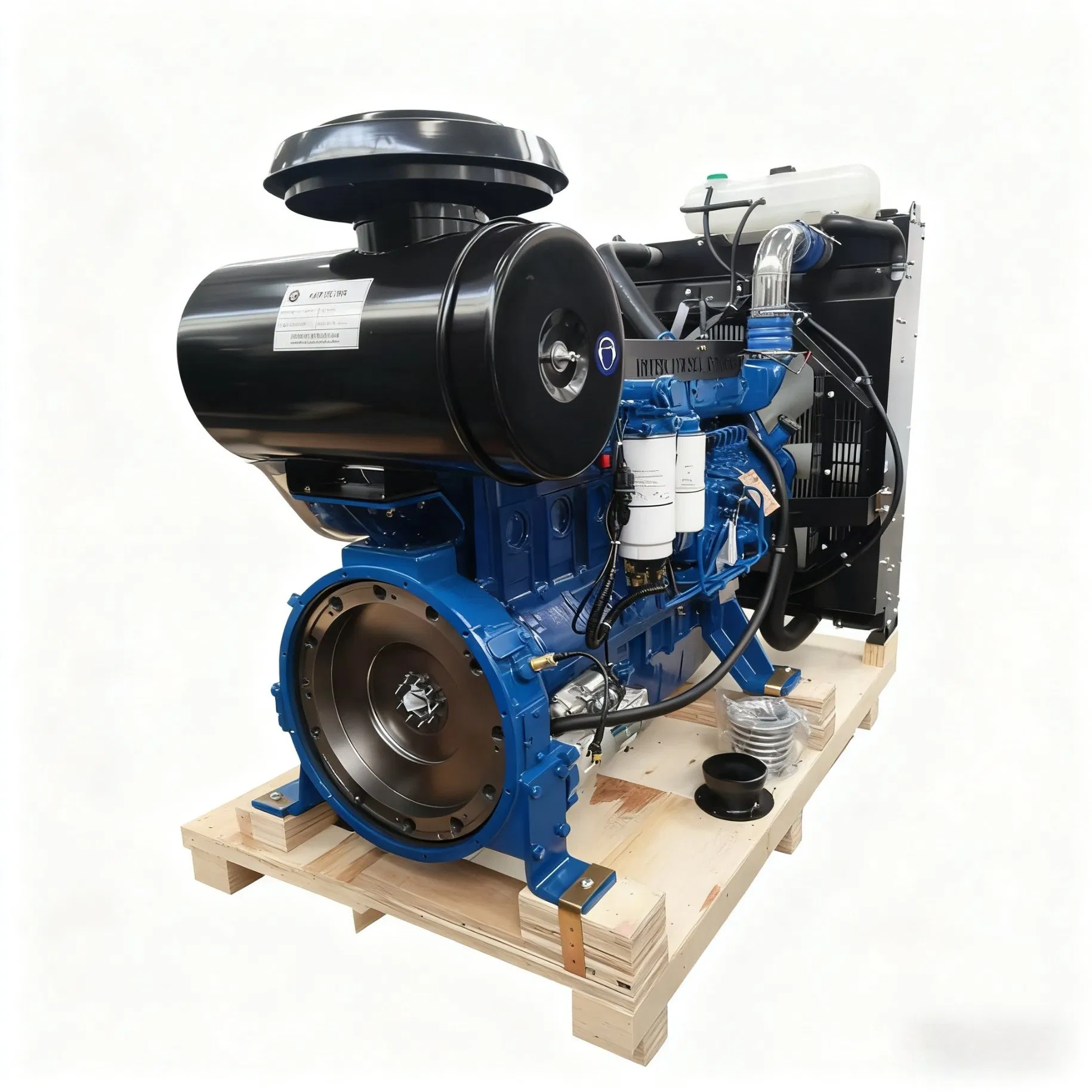

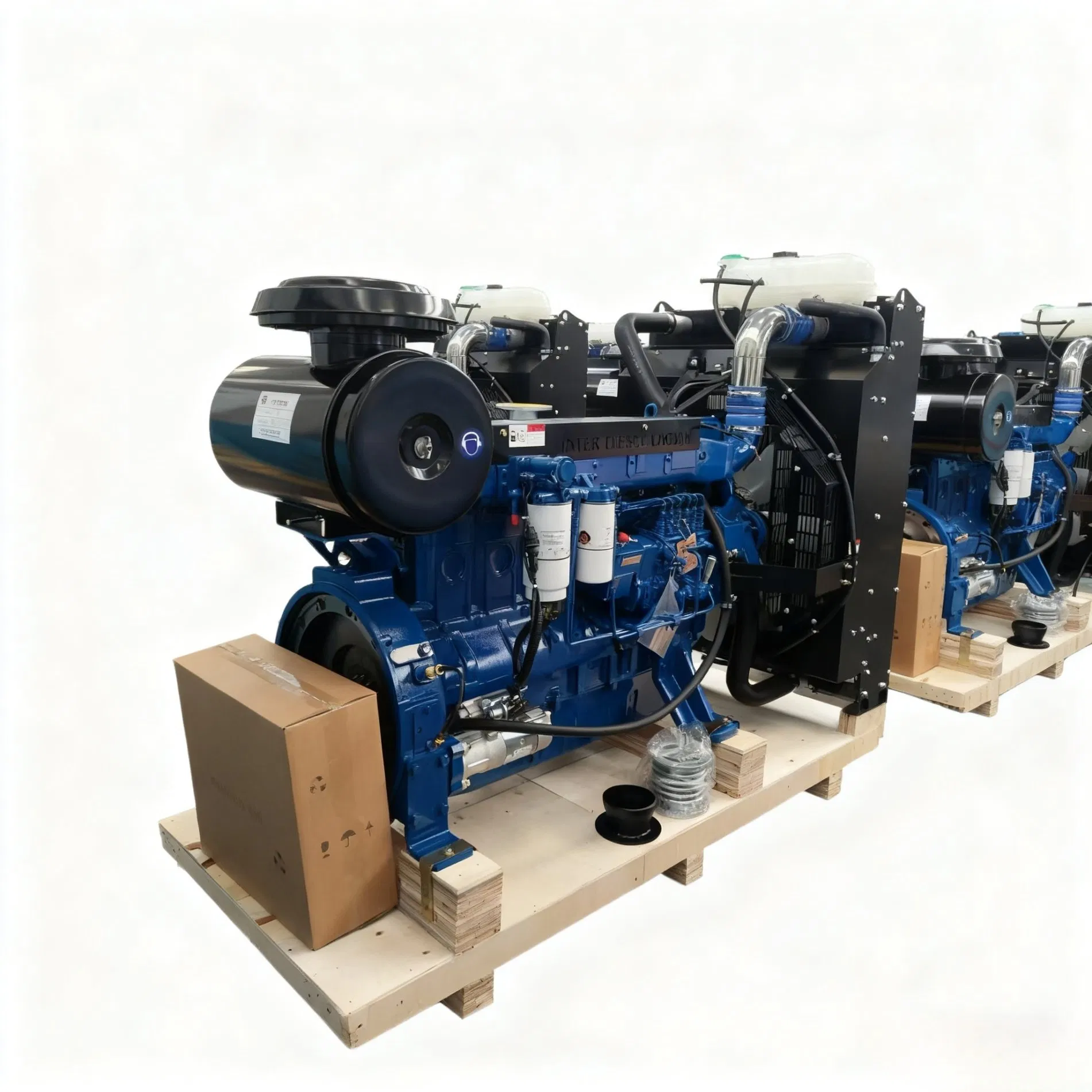

CE-Certified Inline Diesel Engine. Features a Dependable Water-Cooling System and a Smooth 6-Cylinder Configuration for Heavy-Duty Applications

Customization: Available
After-sales Service: We Offer Installation,Repair and Maintain Service
Warranty: One Year

Product Description

Basic Info & Overview
Model NO.
6D10D258A
Ignition Mode
Compression-Ignition
Cooling Cylinder
Water-Cooled
Intake Pressure
Supercharged
Fuel
Diesel
Cylinders
6-Cylinder
Number of Strokes
Four-Stroke
Production Capacity
5000 Pieces/Year

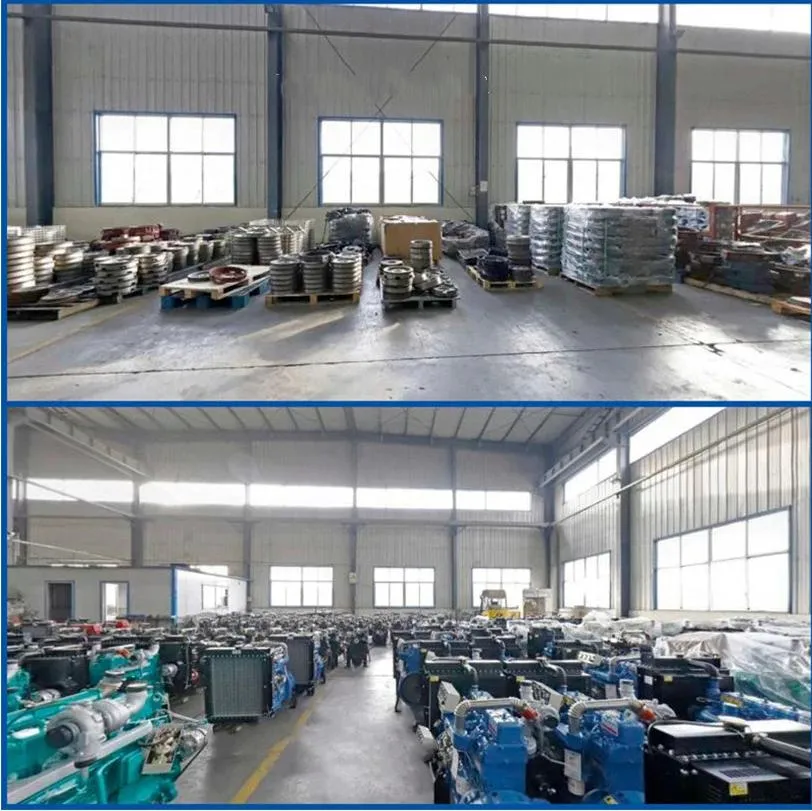

Packaging & Delivery
Package Size
940.00cm * 620.00cm * 1350.00cm
Gross Weight
1150.000kg
Transport Package
Plywood Case
Diesel Engine Technical Specifications
Power Range: 162KW-385KW
Model 6D10D200A 6D10D258A 6D10D283A 6D10D315A 6D12D317A 6D12D355A 6D12D363B D2655A385
Type Water-cooling, In-line, 4-stroke, Direct injection and Dry liner
Rated Output(KW) 182/200 235/258 258/283 286/315 288/317 323/355 330/363 350/385
RPM 1500/1800 (Interchangeable) 1800 1500/1800
Cylinder No. 6
Bore*Stroke (mm) 126*130 126*155
Displacement (L) 9.7 11.6
Net Weight (kg) 1180 1260 1320

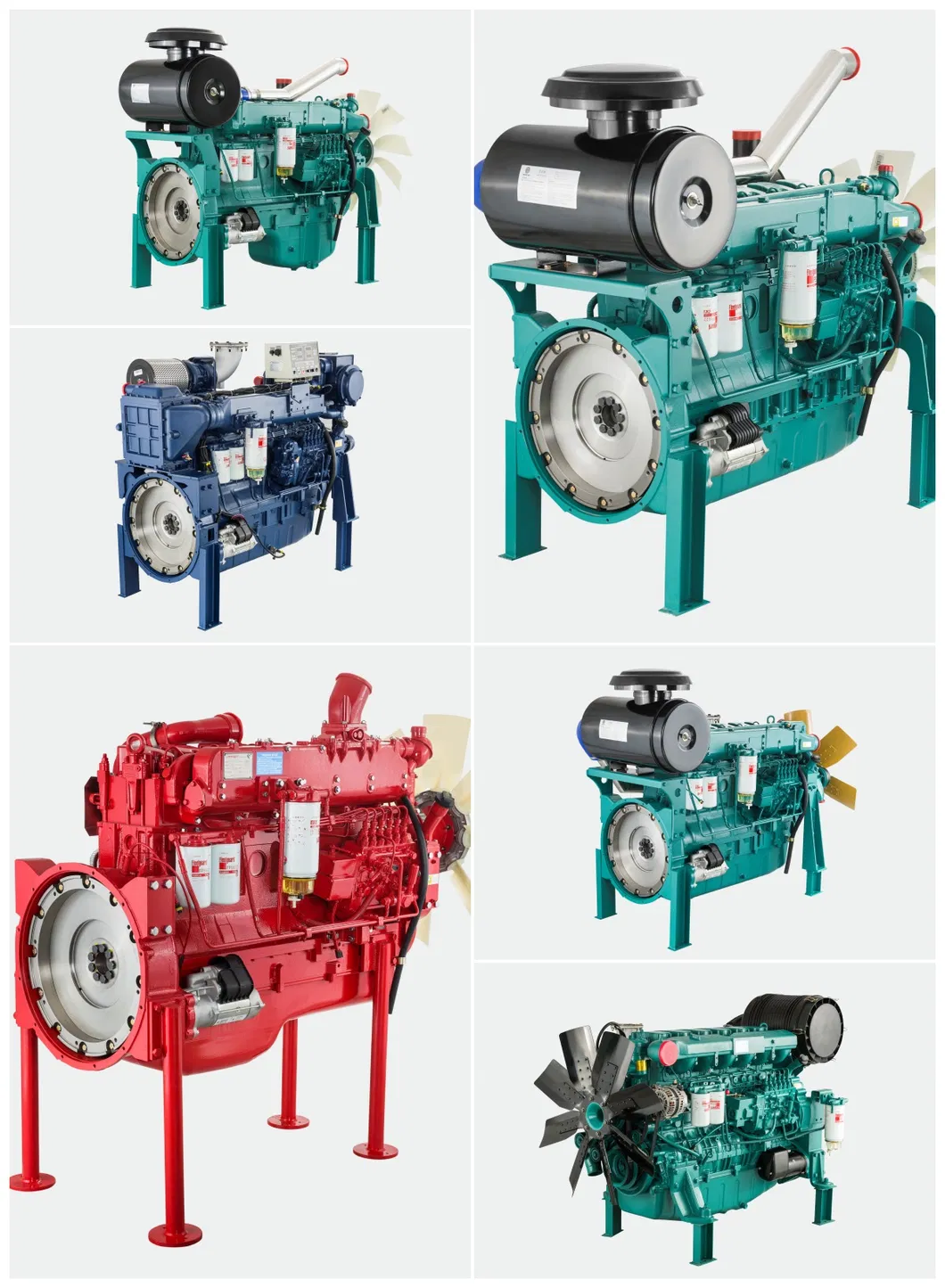

Product Gallery

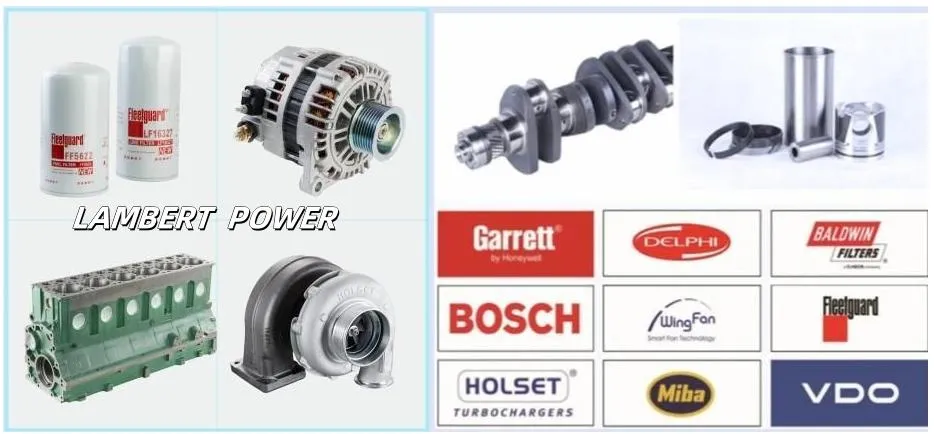

Premium Components & Features
🔹 High-Performance Filter Fleetguard Filter with a replacement cycle up to 1500 hours. Equipped with diesel dewatering and reassuring filters.
🔹 Efficient Alternator Lightweight design for improved heat dissipation, reducing power consumption by 15% compared to similar products.
🔹 Advanced Turbocharger Equipped with Tyen (200KW-300KW) or Holset (320KW-350KW) systems for maximum efficiency.
🔹 Durable Silicone Hose High resistivity and scalability, extending engine life and simplifying installation.
🔹 Electronic Governor Ensures speed stability (≤3%) for consistent performance across various loads.
🔹 Forged Steel Crankshaft Constructed from high-strength forged steel instead of standard casting for superior durability.

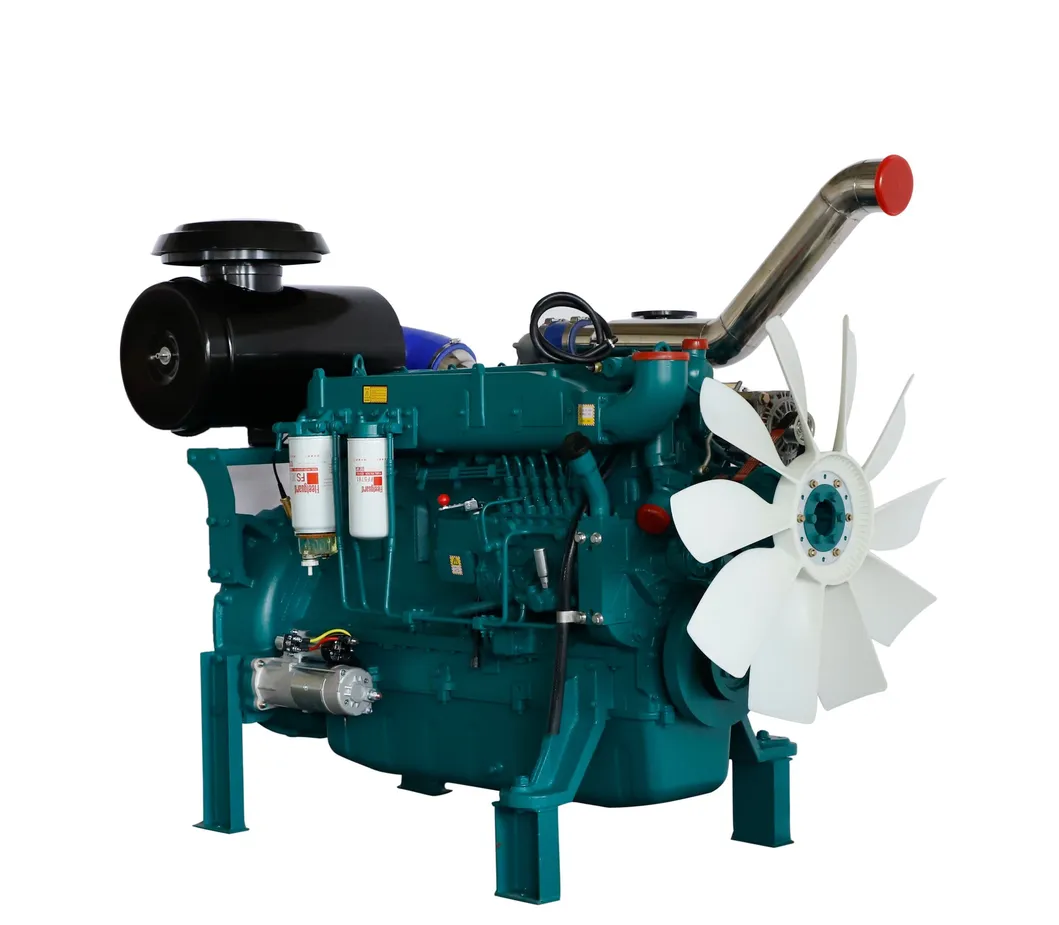

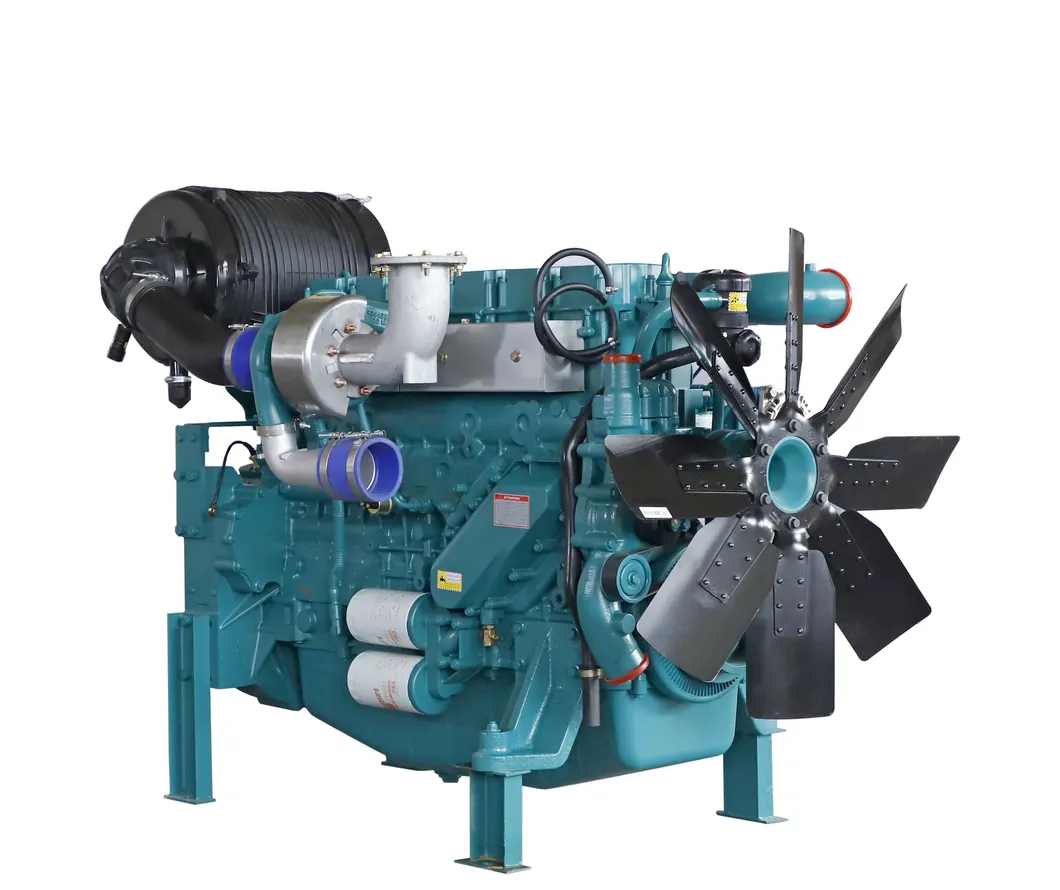

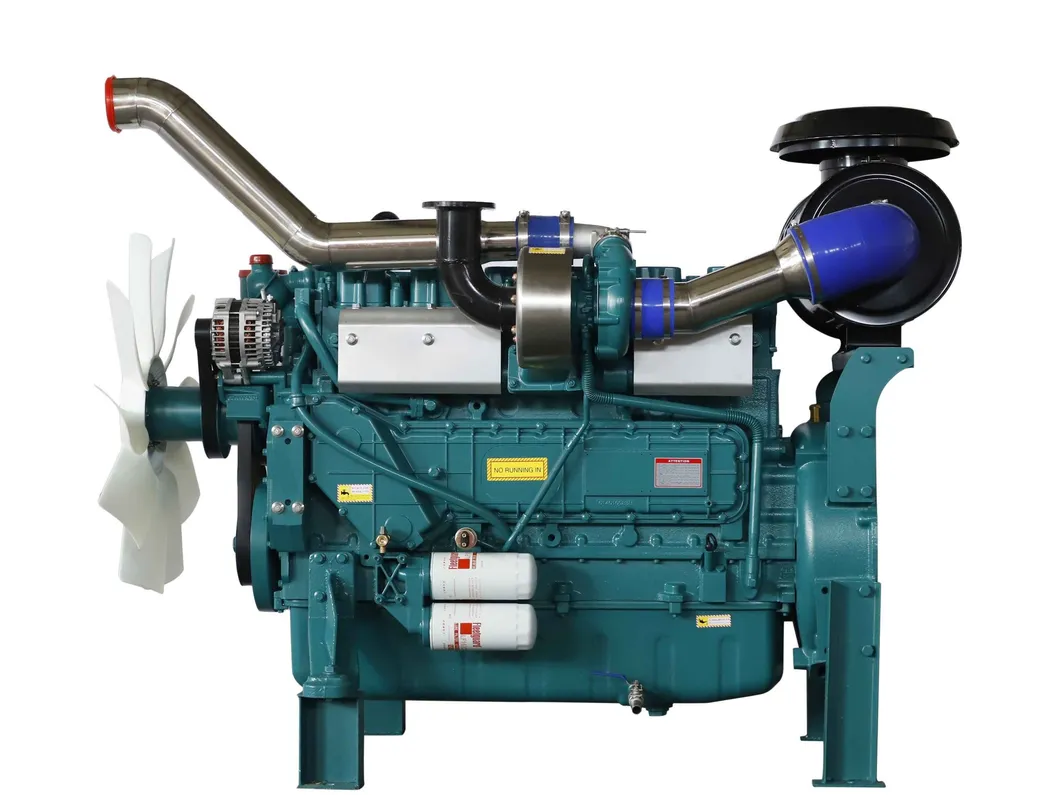

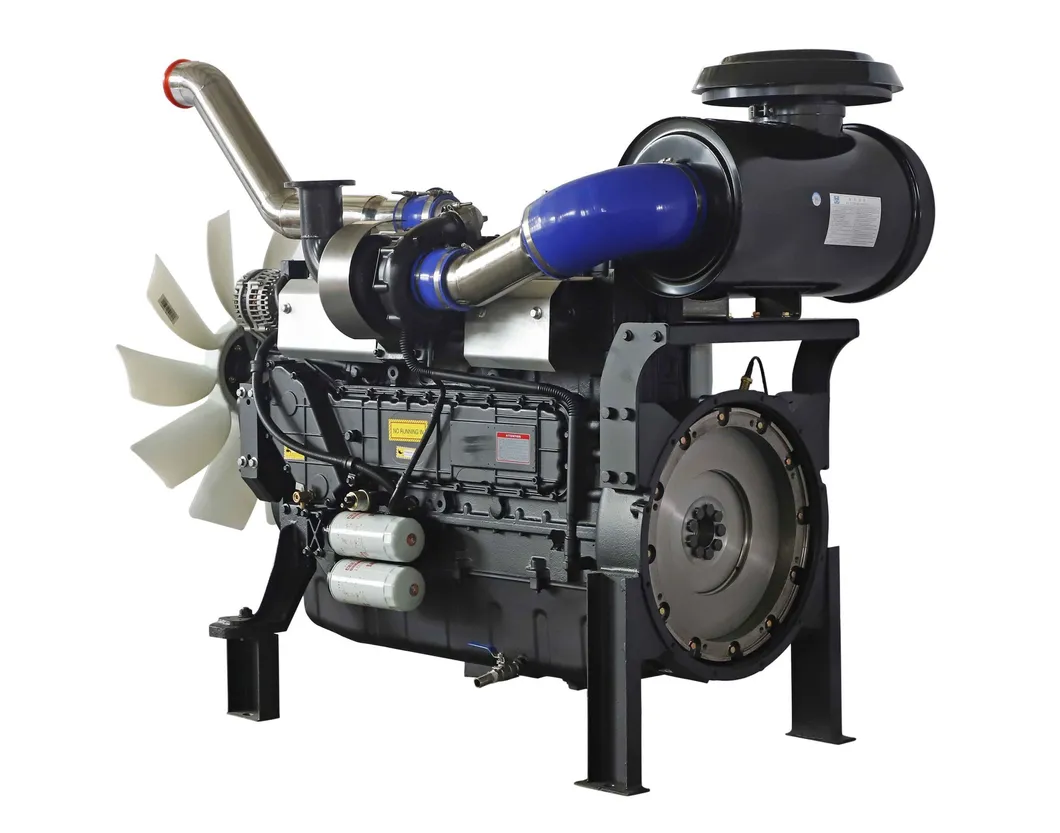

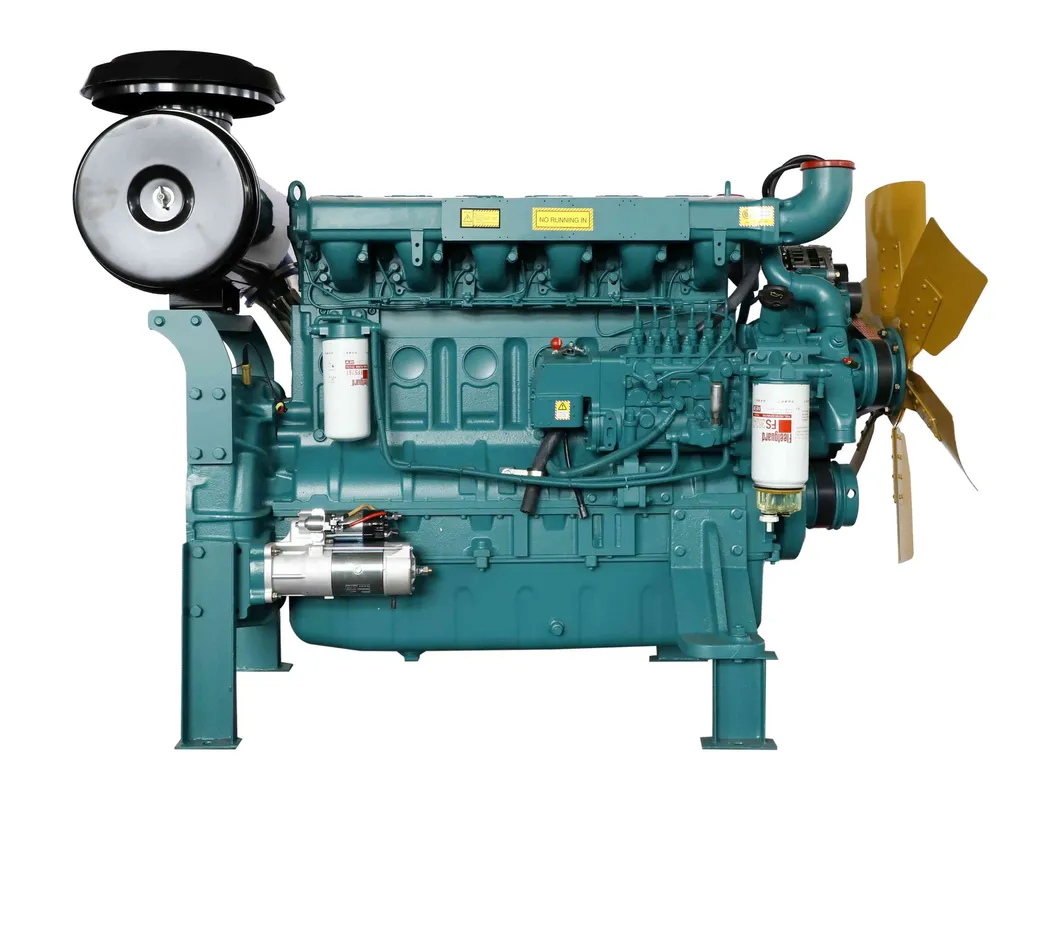

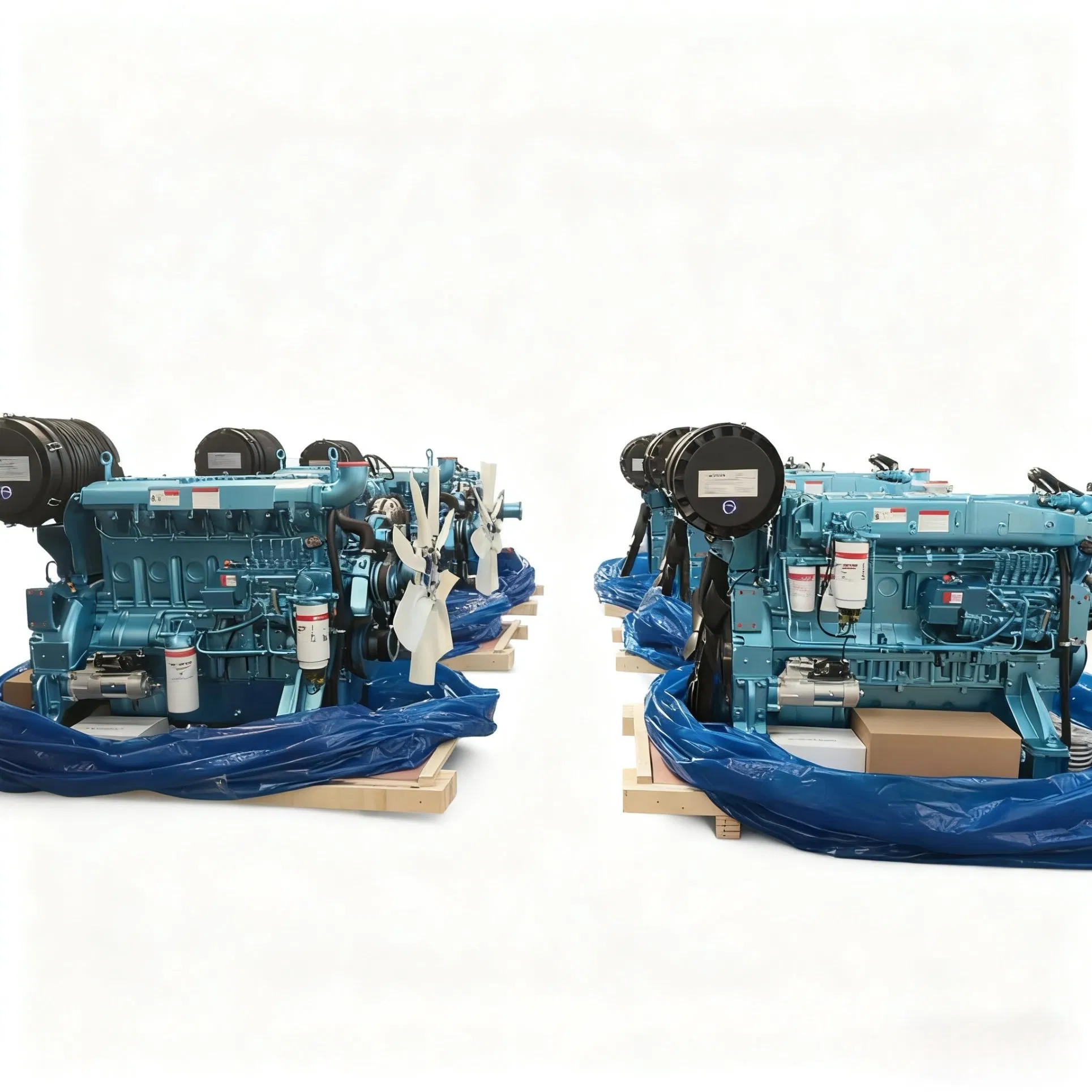

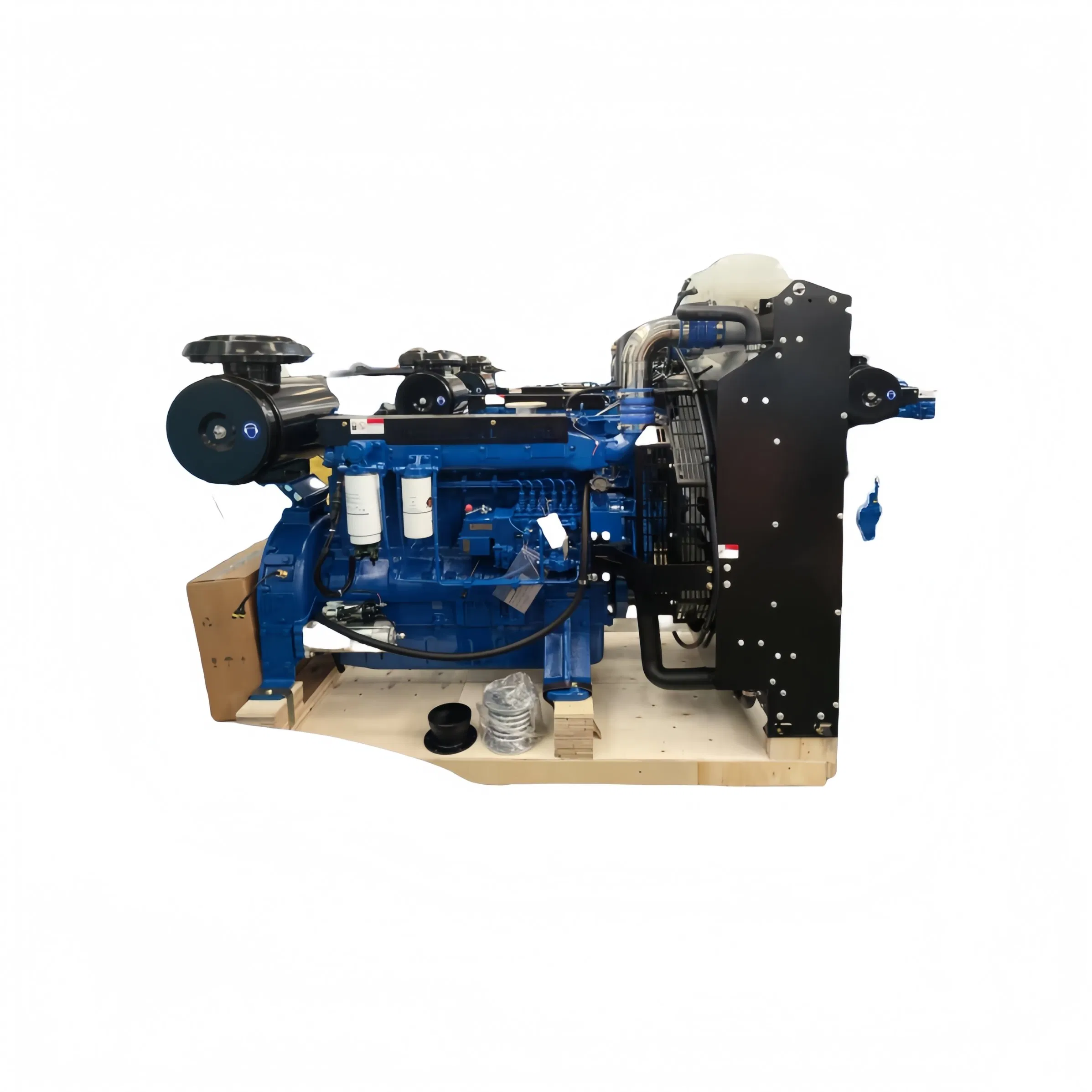

Product Photographs
Manufacturing & Quality Control

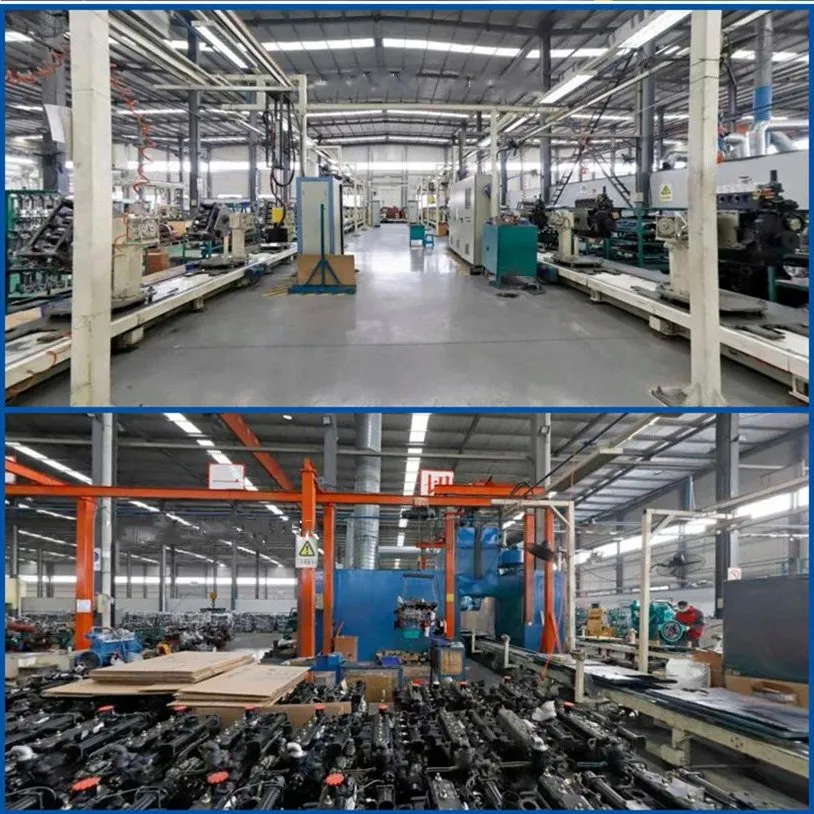

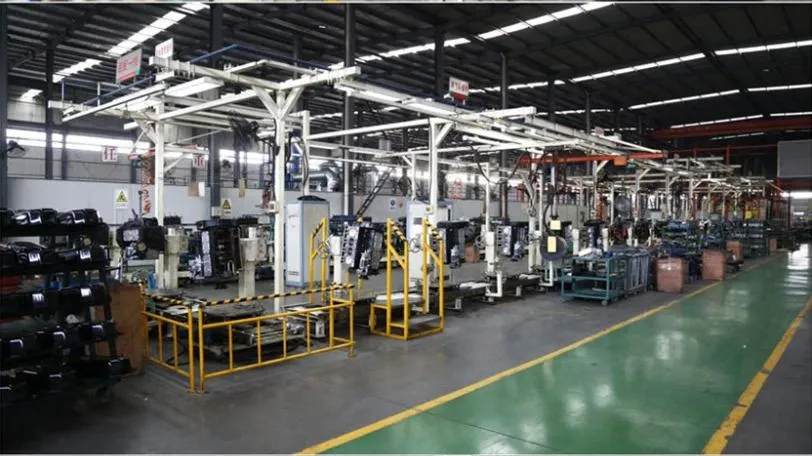

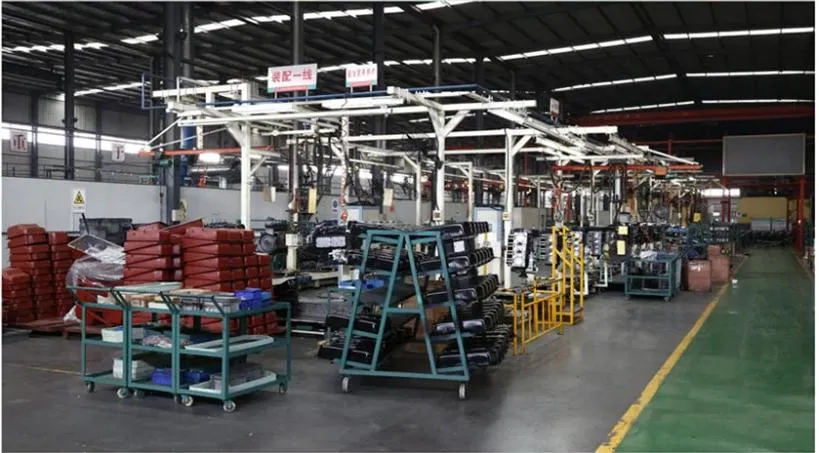

Our production facility operates three advanced assembly lines and specialized packaging lines. With automated operations and skilled technicians, we ensure a production capacity of 130 diesel engines per 8-hour shift.

Quality is verified via four advanced test stands featuring automatic temperature control systems for water, oil, and intercooling air, ensuring measurement accuracy within 0.5%.

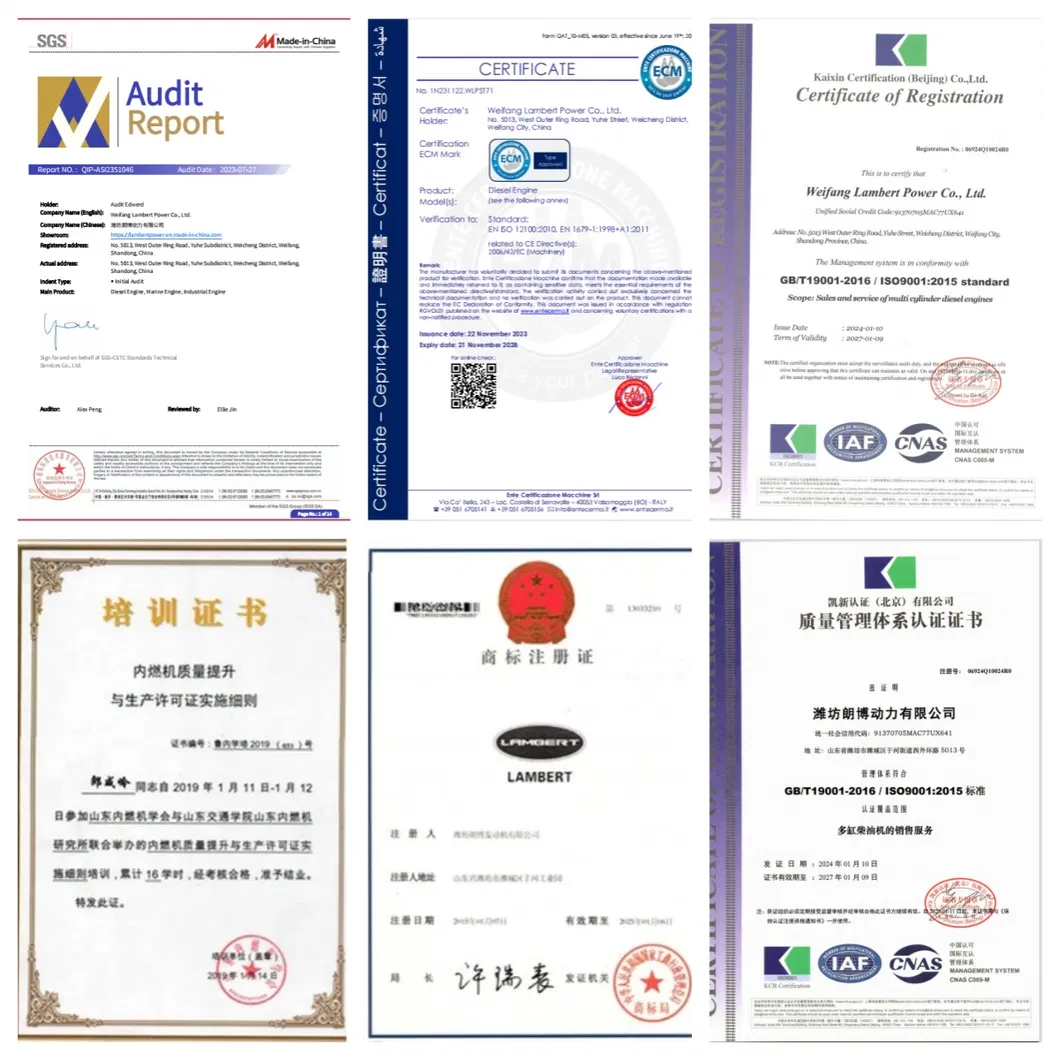

Certifications & Global Presence

Our products are ISO9001 and CE certified. We actively participate in international exhibitions like the Middle East Electricity Show (MEE) in Dubai and the Canton Fair.

About Our Technology

Focusing on 'TECHNOLOGY IN MOTION', we provide high-reliability diesel and gas engines, generating sets, and industrial pump equipment. Our R&D centers in the UK and Australia support the development of market-leading solutions with unparalleled customer support.

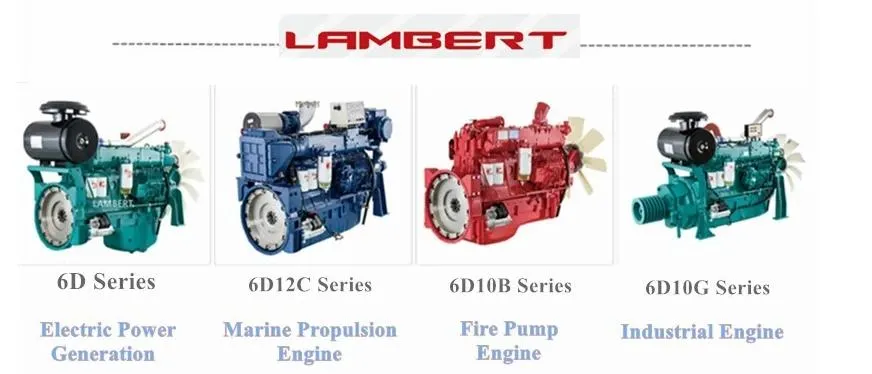

Technology Summary
Frequently Asked Questions
What is the power range of these industrial diesel engines?
The engines cover a wide power range from 162KW up to 385KW, suitable for various heavy-duty industrial applications.
What cooling system do these engines utilize?
All models in this series use a highly efficient water-cooling system combined with an in-line configuration for optimal temperature management.
Are the engine speeds adjustable for different markets?
Yes, many models feature interchangeable speeds of 1500 RPM and 1800 RPM to meet different regional power frequency requirements.
How stable is the engine speed under varying loads?
Equipped with an electronic governor, the engine maintains high speed stability with a regulation rate of ≤3%.
What certifications ensure the quality of these engines?
Our manufacturing processes and products are fully certified by ISO9001 and CE standards, ensuring international quality compliance.
Are the engine components compatible with international standards?
Yes, the assembly type conforms to SAE standards, which ensures excellent interchangeability and commonality in the global market.
