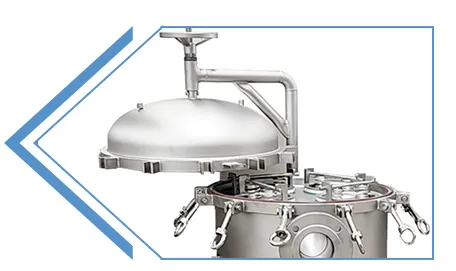

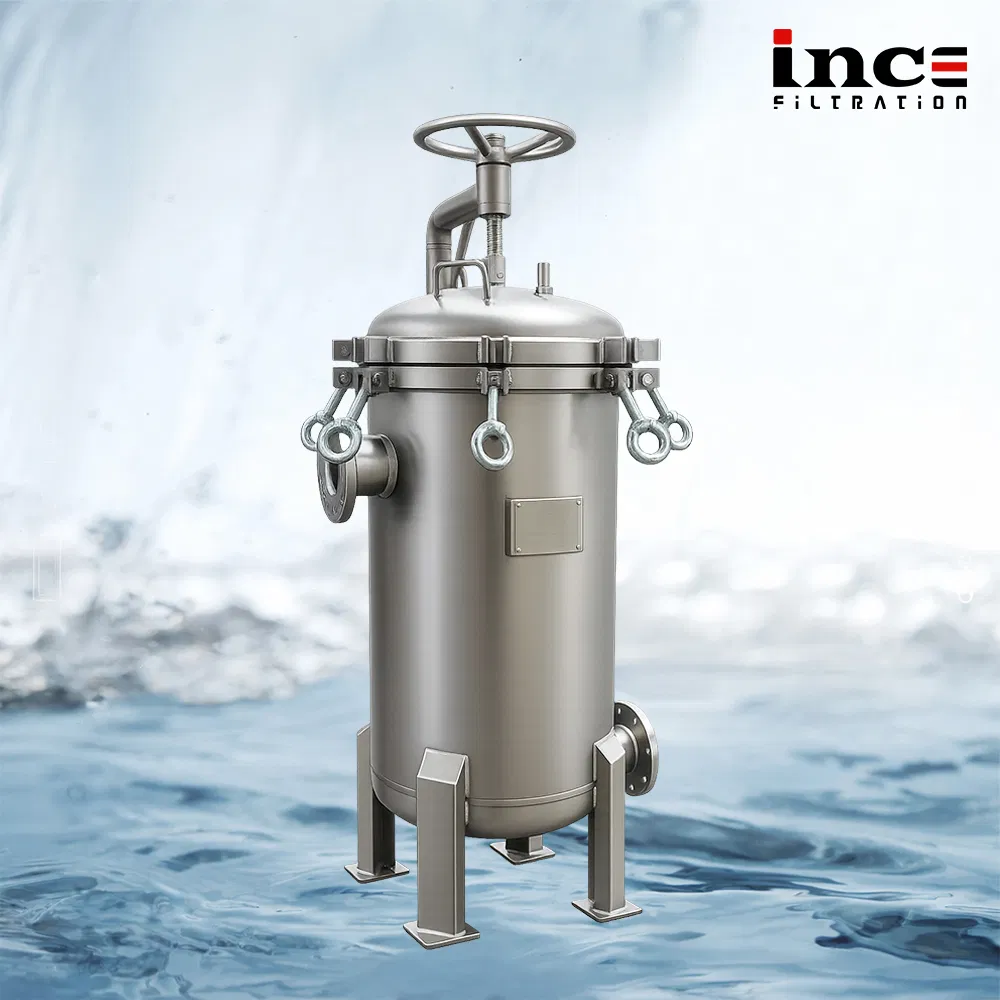

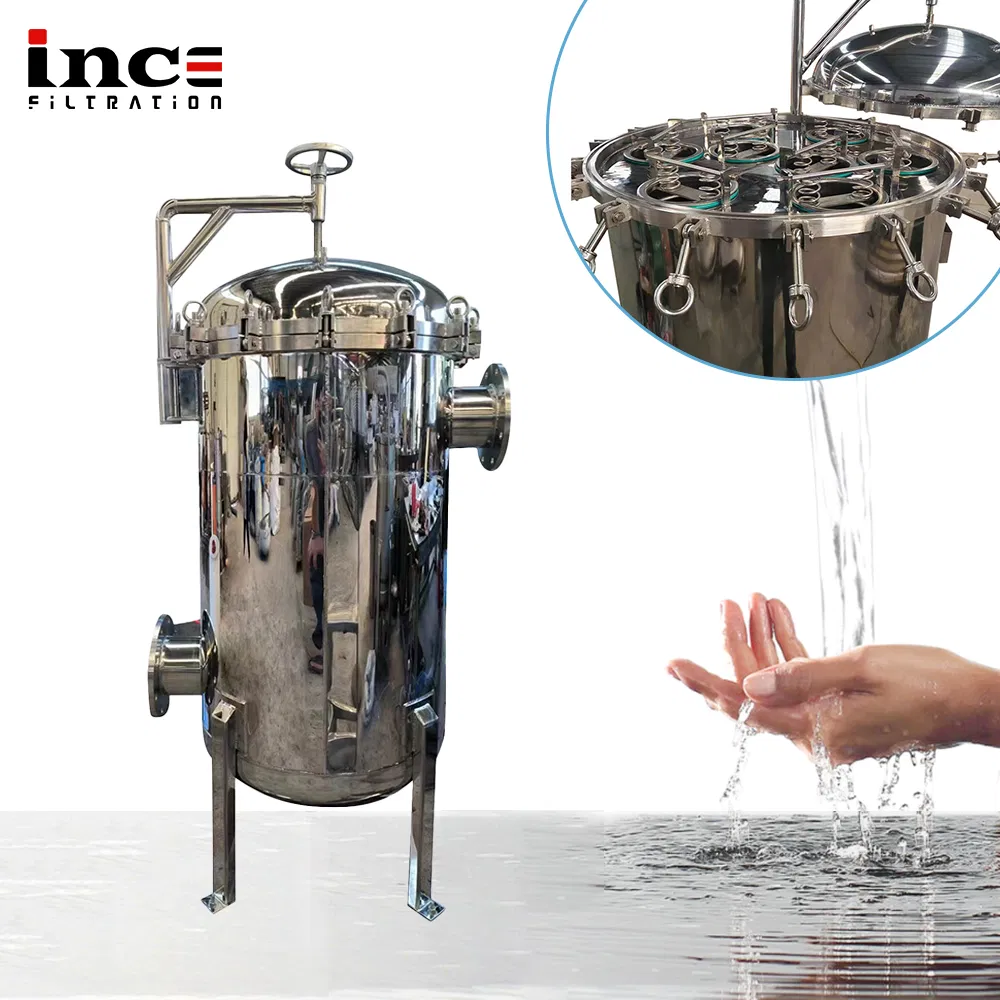

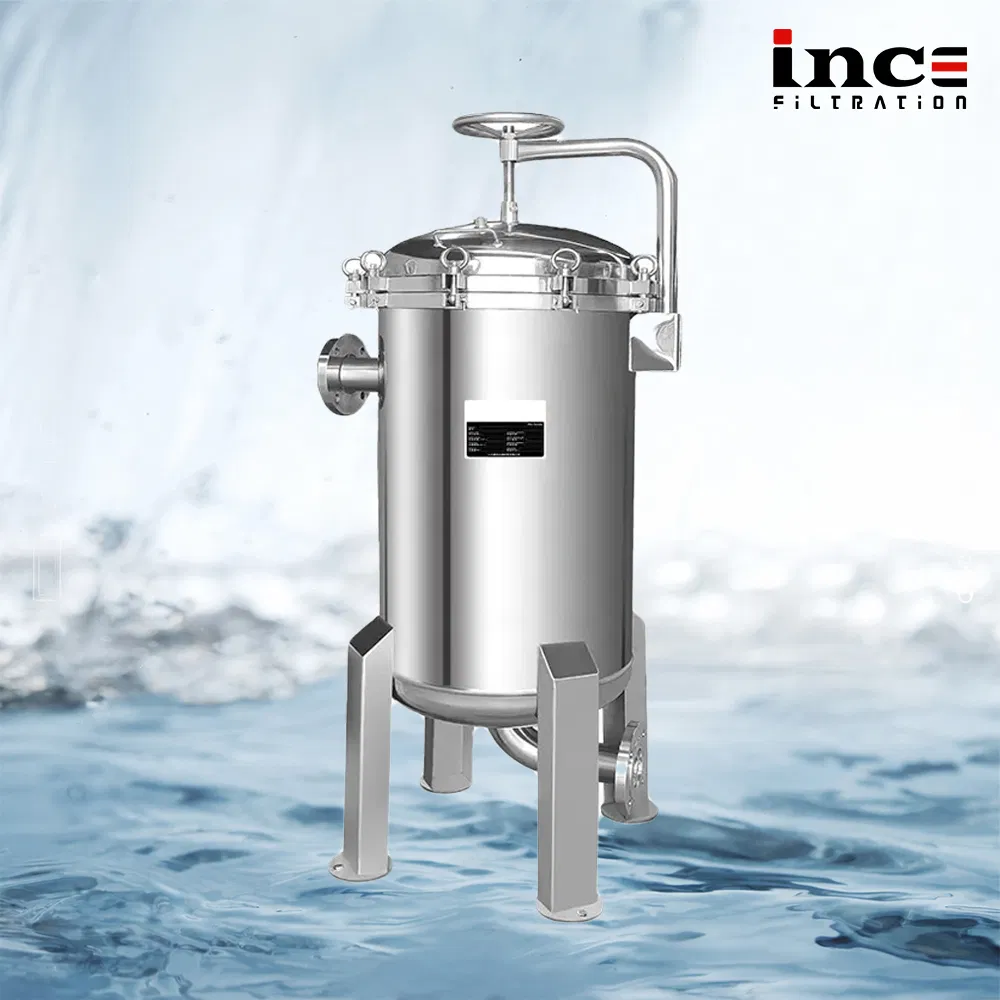

The filter housing features an optional davit arm for quick and easy opening of the cover. Made of stable stainless steel, it offers excellent corrosion resistance against a wide range of liquids. Its reliable and robust construction is suitable for high-flow filtration systems, while the compact housing design minimizes liquid loss. High-strength M16–M24 lifting rings guarantee tight sealing and safe operation.

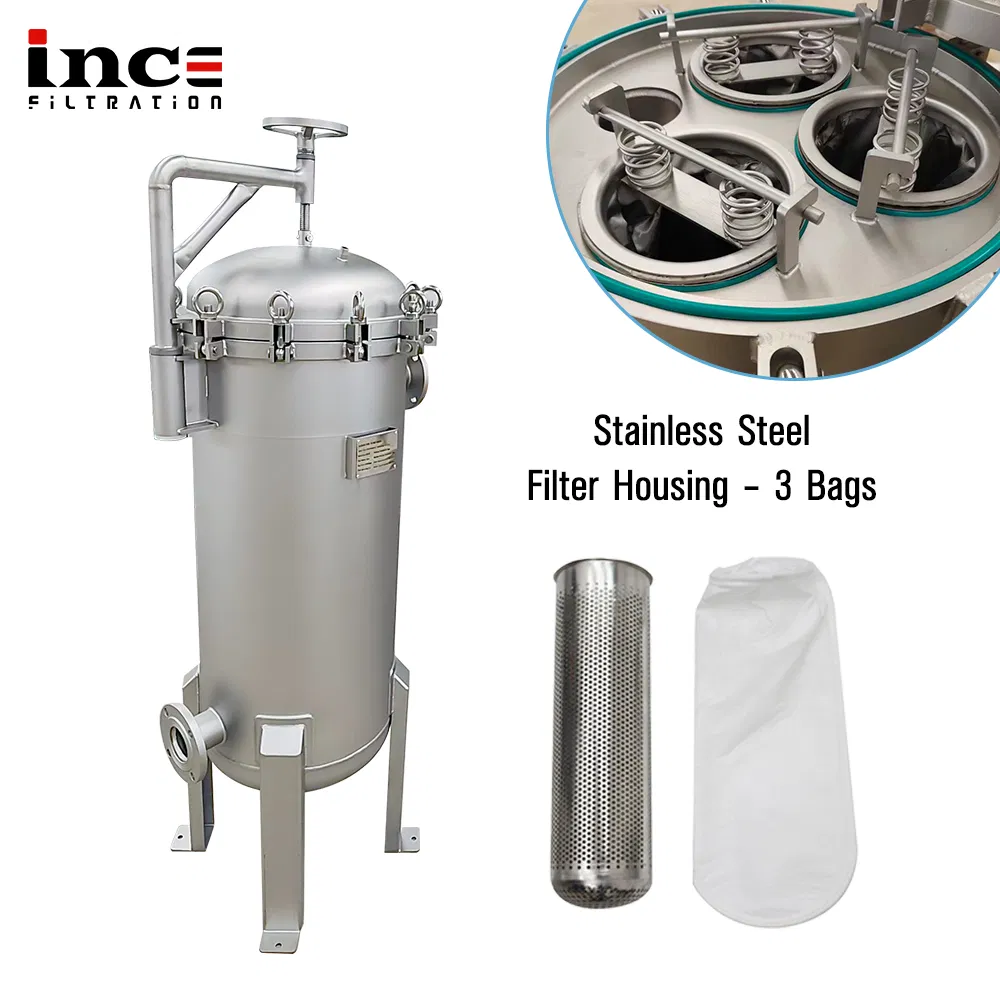

Available in 2–24 bag configurations, with customized designs supported to meet specific application requirements.
| Model | Barrel Diameter | Inlet/Outlet | Flow Rate | Thickness |
|---|---|---|---|---|
| INCE-MB-02 | φ400 | DN80 Flange | 60T/H | 3.0mm |
| INCE-MB-04 | Φ500 | DN125 Flange | 120T/H | 3.0mm |
| INCE-MB-08 | Φ800 | DN200 Flange | 240T/H | 3.0mm |
| INCE-MB-12 | Φ950 | DN200 Flange | 360T/H | 4.0mm |
| INCE-MB-24 | Φ1300 | DN250 Flange | 720T/H | 4.0mm |

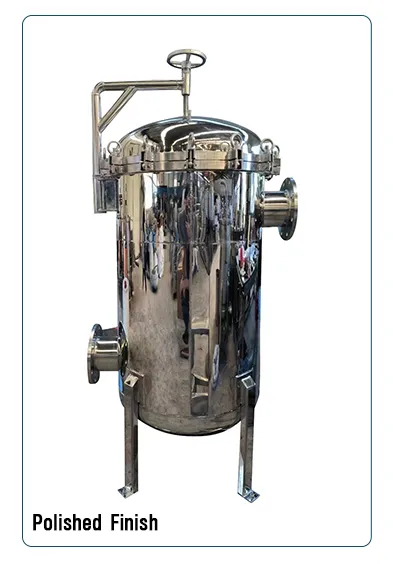

Smooth mirror or semi-mirror finish. Ideal for Food, Beverage, and Pharmaceutical industries where hygiene and easy cleaning are critical.

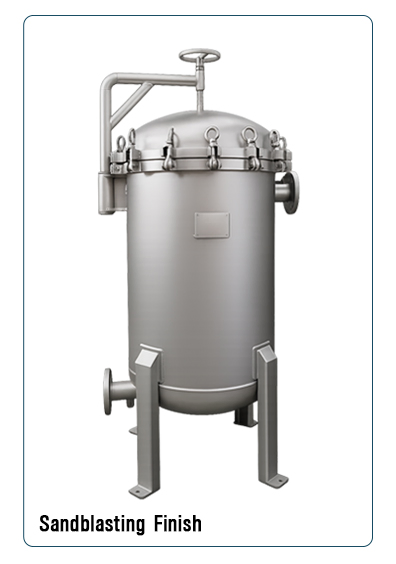

Uniform matte texture. Best for industrial systems (chemical, petroleum) where durability and practical maintenance are prioritized.
We offer flexible shipping options including sea freight, air freight, and international express. For standard products, production starts after order confirmation. For customized units, lead times are determined based on specific technical requirements.

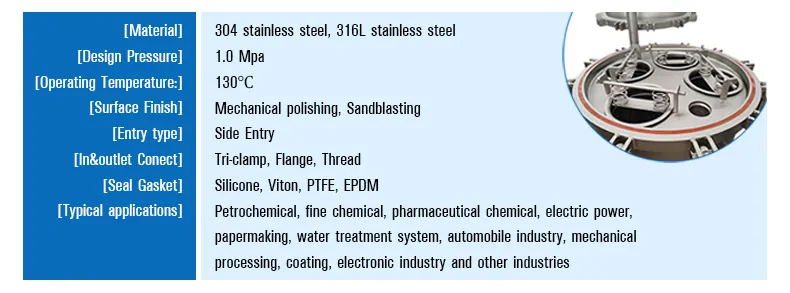

We primarily use high-grade 304 and 316L stainless steel to ensure excellent corrosion resistance and durability in various liquid environments.

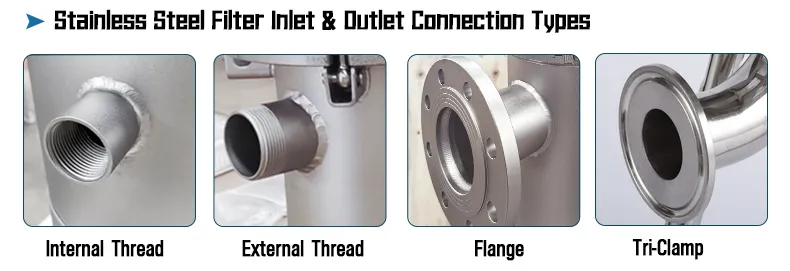

Yes, we support multiple connection types including Internal Thread, External Thread, Flange, and Tri-Clamp to suit your specific piping requirements.
Our multi-bag housings can handle flow rates ranging from 60T/H (for 2-bag models) up to 720T/H (for 24-bag models).

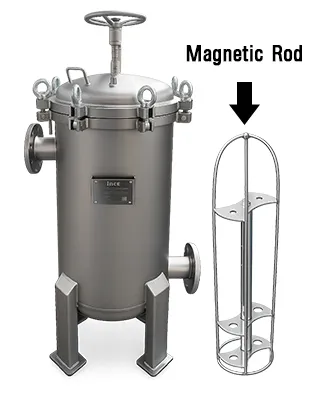

The magnetic rod helps remove fine ferromagnetic impurities that traditional filter bags might miss, protecting downstream equipment like pumps and valves.
Absolutely. We offer high-level mechanical polishing and tri-clamp connections that meet the strict hygiene and cleanliness standards of the food, beverage, and pharmaceutical industries.

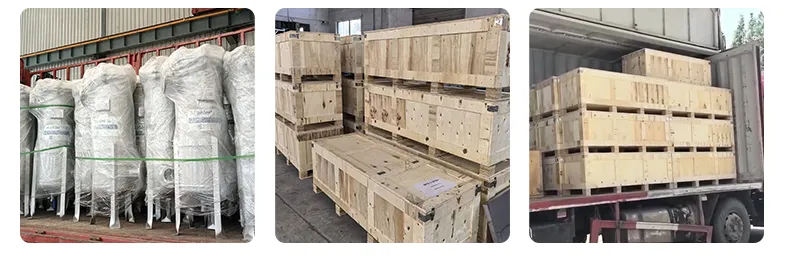

All units are packed in export-standard wooden crates to prevent damage during transit via sea, air, or express freight.
