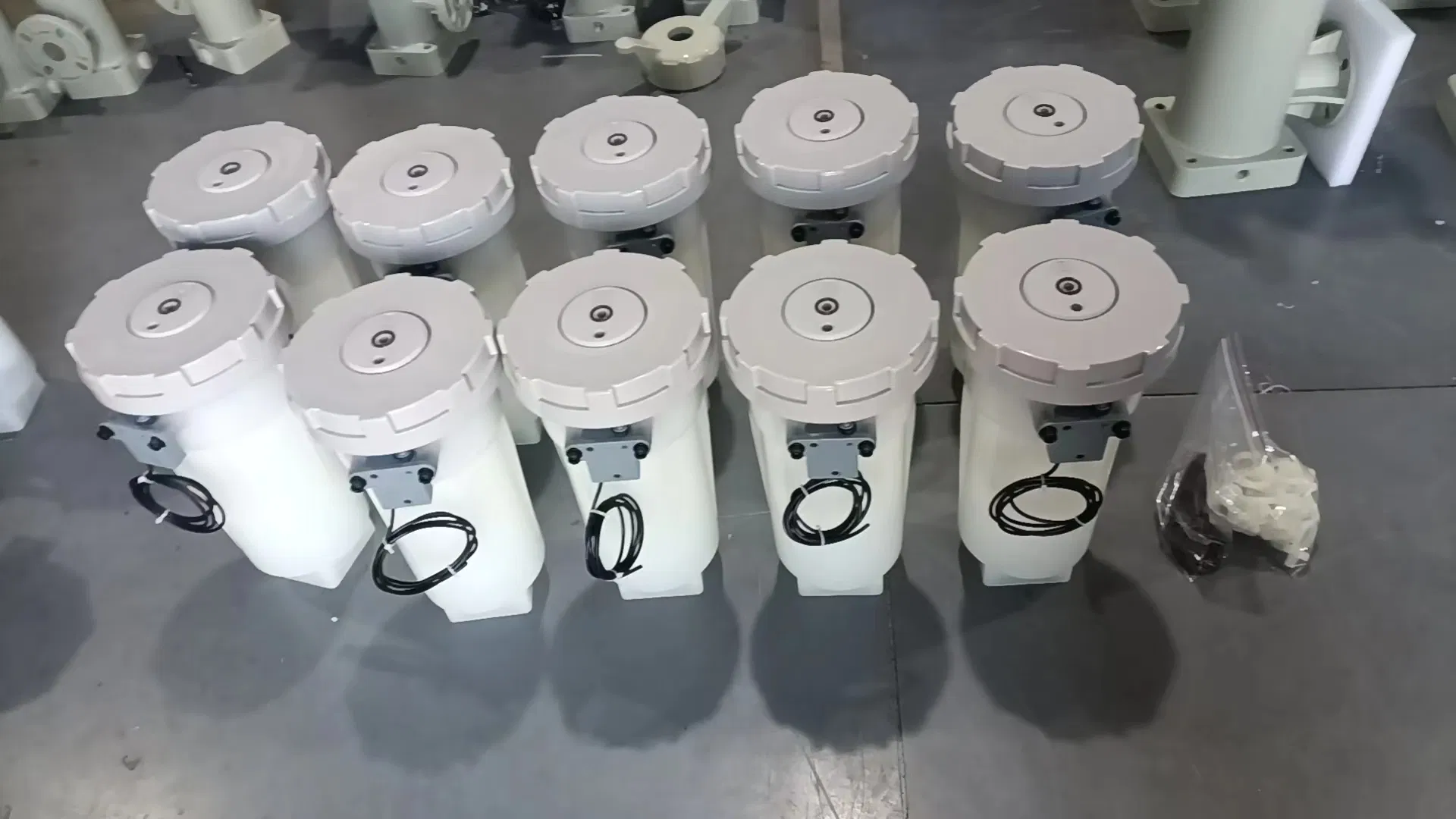

The PP bag filter housing is specifically engineered for chemical liquid filtration across various industries including electroplating, PCB manufacturing, and advanced water treatment. Constructed from premium polypropylene, it offers unparalleled durability in aggressive environments.
Utilizes high-quality PP material with excellent resistance to strong acids, alkalis, and complex chemical solutions.
Fully compatible with various filter bags to meet diverse precision requirements from coarse to fine filtration.

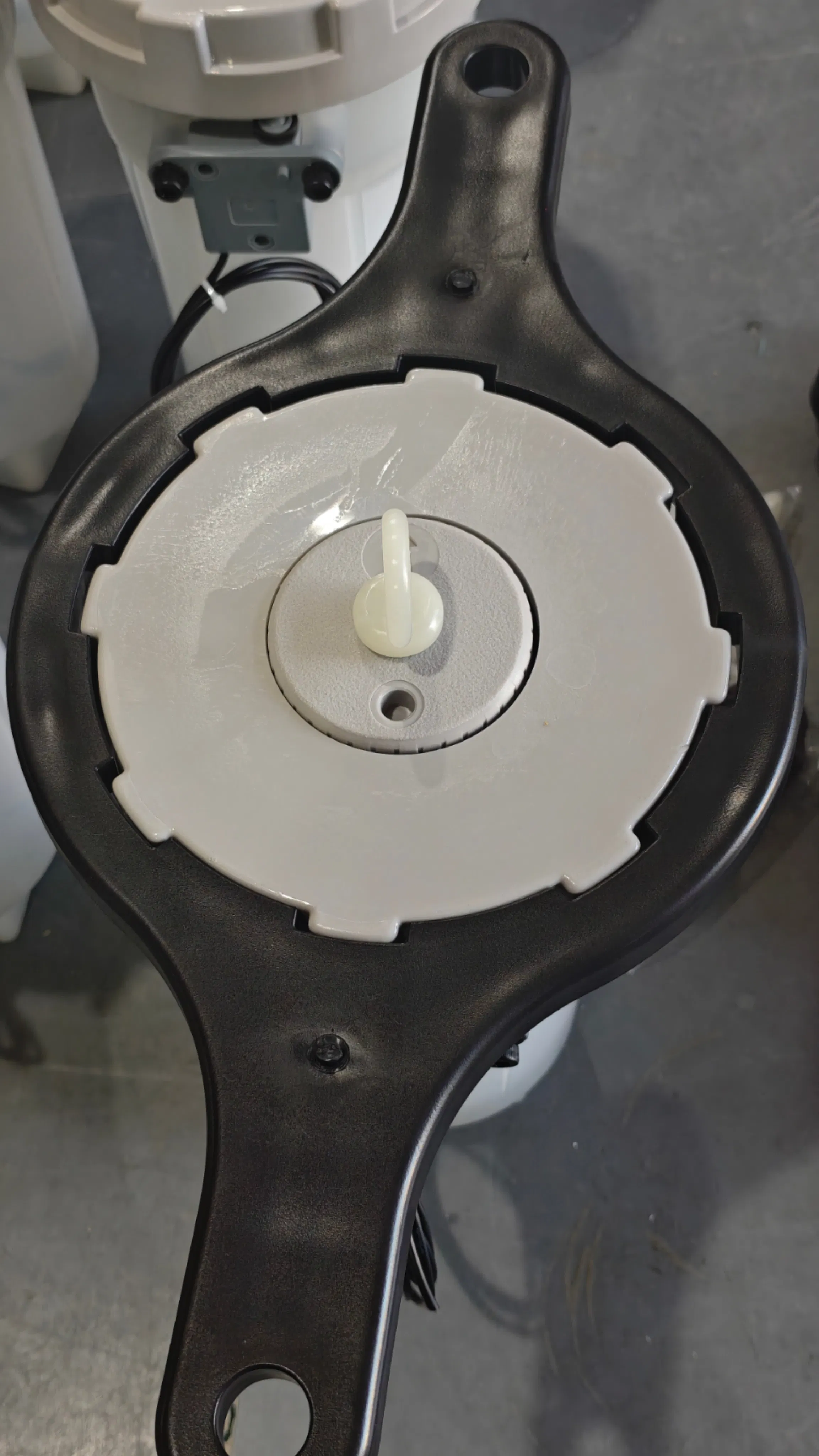

The ergonomic top cover design allows for rapid filter bag replacement and straightforward operational maintenance.
Equipped with professional-grade sealing rings to ensure zero leakage during high-pressure industrial operations.

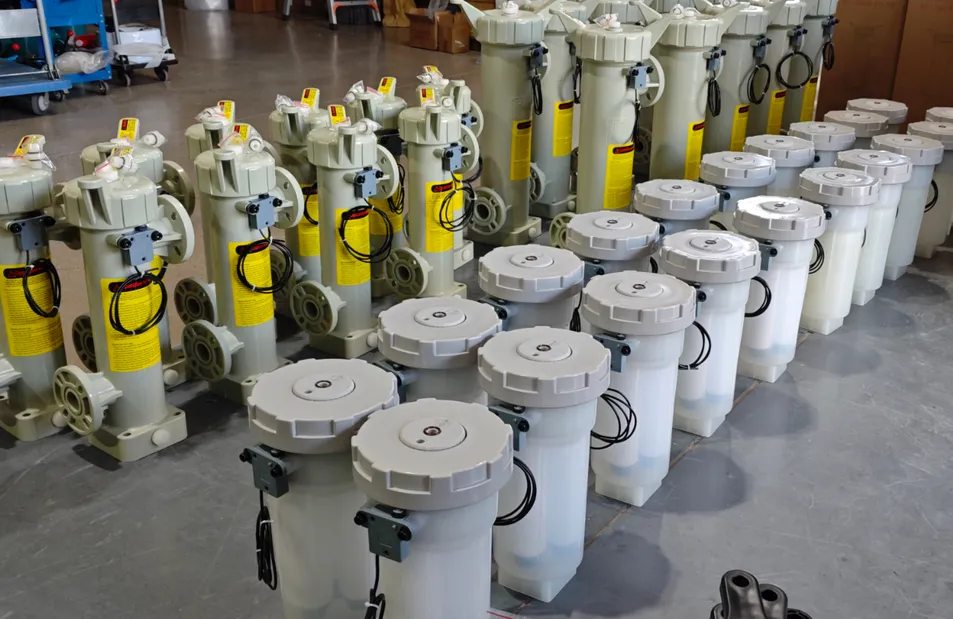

Liquid enters the filter housing through the inlet and flows through the internal filter bag. Solid particles and impurities are trapped securely within the bag, while the purified liquid flows out through the outlet. When the bag reaches saturation, it can be quickly replaced to restore full system efficiency.
| Model | Max Pressure | Max Flow (m³/h) | Filtration Area (m²) | Precision (µm) | Material | Max Temp (℃) |
|---|---|---|---|---|---|---|
| CB-1BF-P1 | 0.6 Mpa | 22 | 0.25 | 0.2-500 | PP | 80 |
| CB-2BF-P1-500 | 0.6 Mpa | 30 | 0.30 | 0.2-500 | PP | 80 |
| CB-2BF-P1-720L | 0.6 Mpa | 40 | 0.50 | 0.2-500 | PP | 80 |

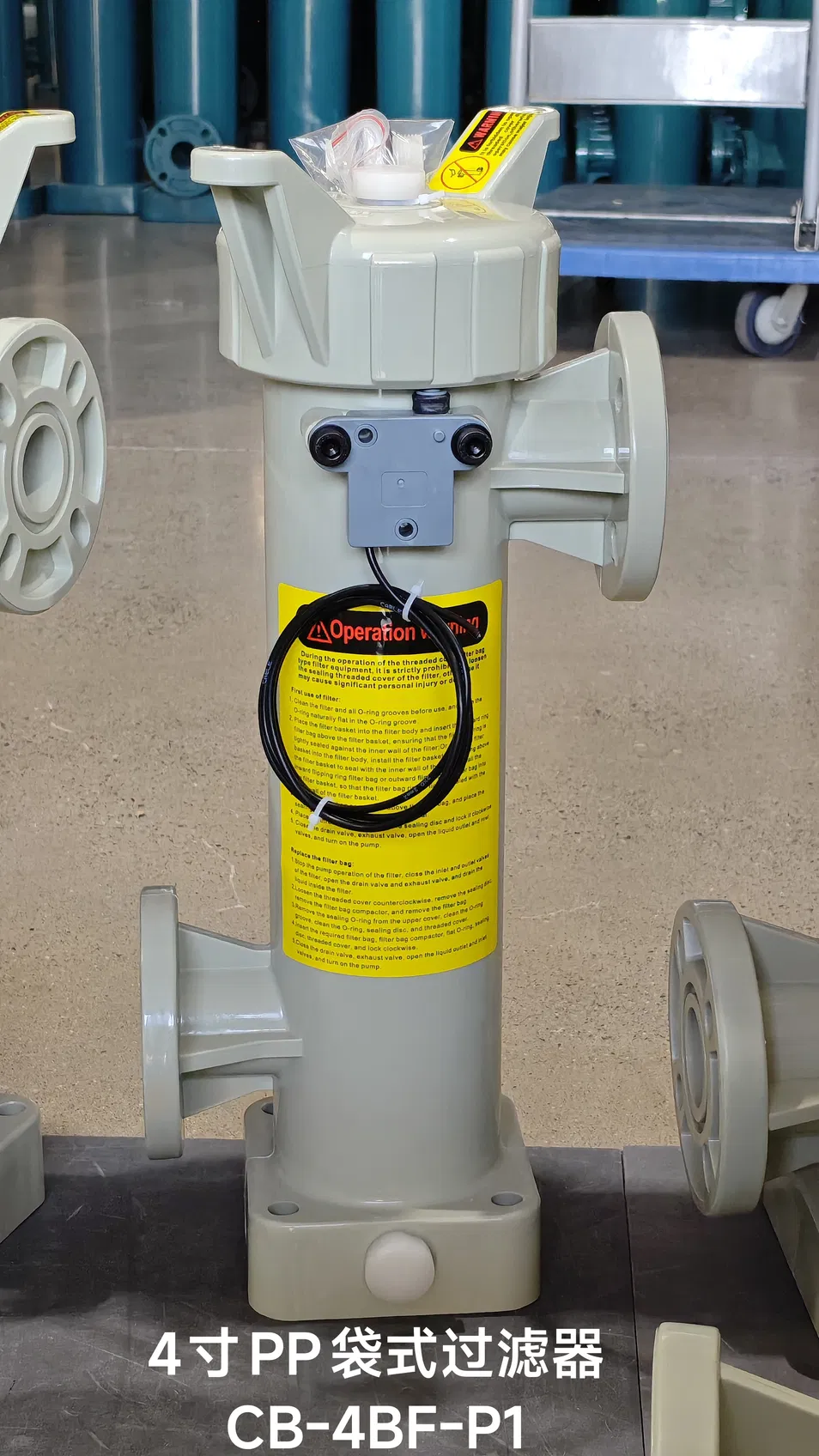

| CB-4BF-P1 | 0.6 Mpa | 12 | 0.12 | 0.2-500 | PP | 80 |

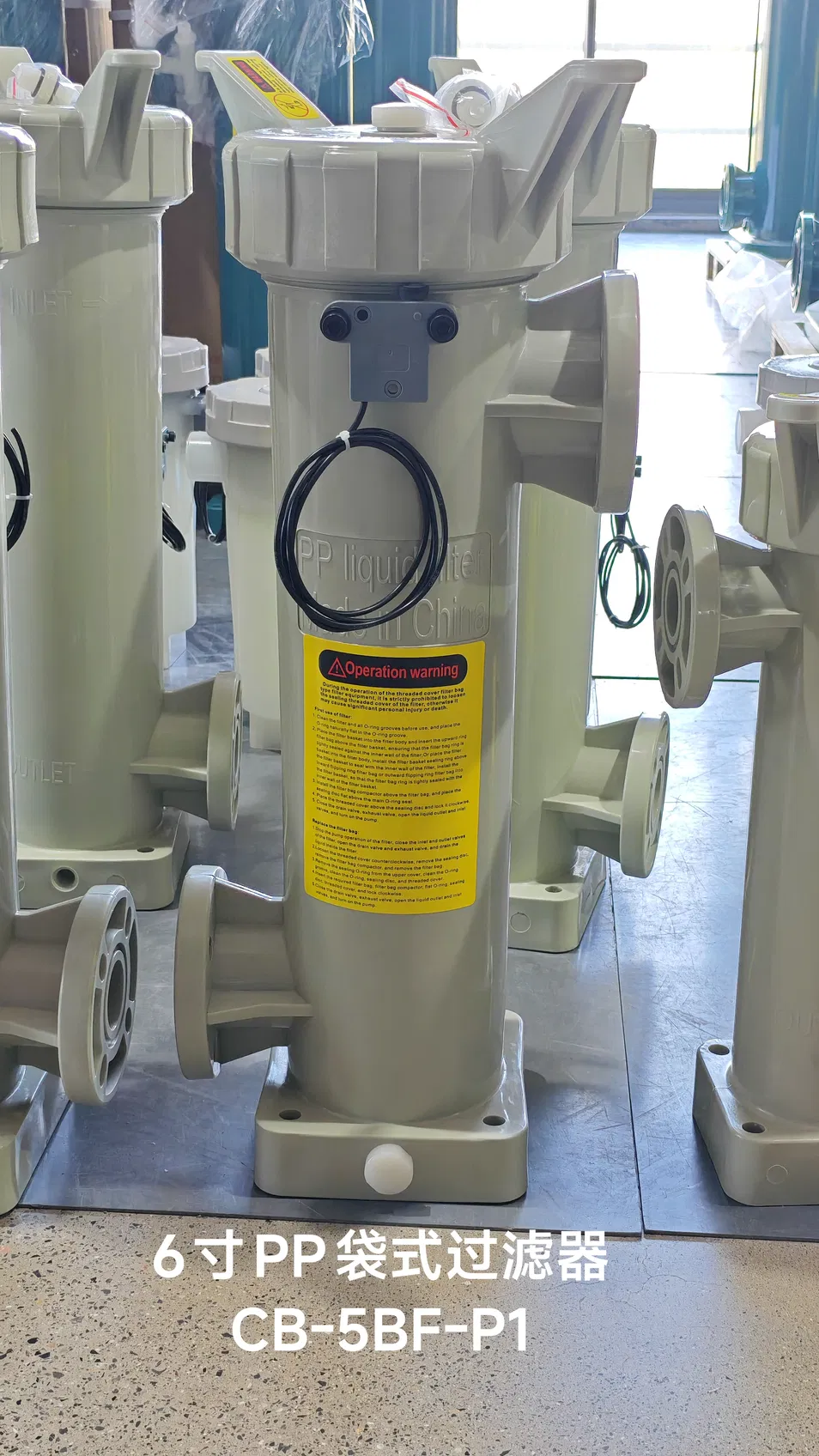

| CB-5BF-P1 | 0.6 Mpa | 22 | 0.25 | 0.2-500 | PP | 80 |
