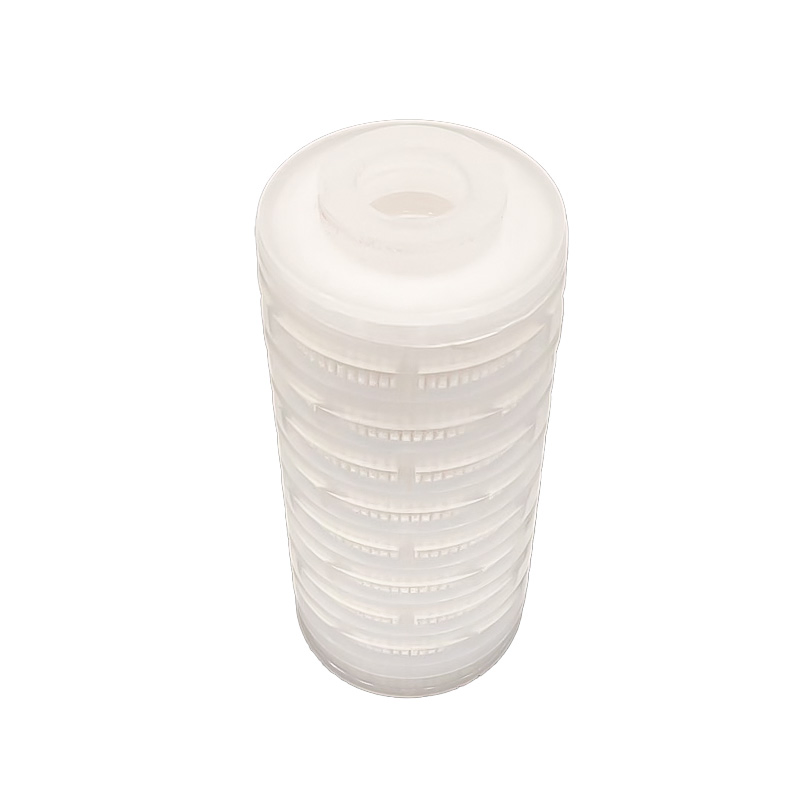

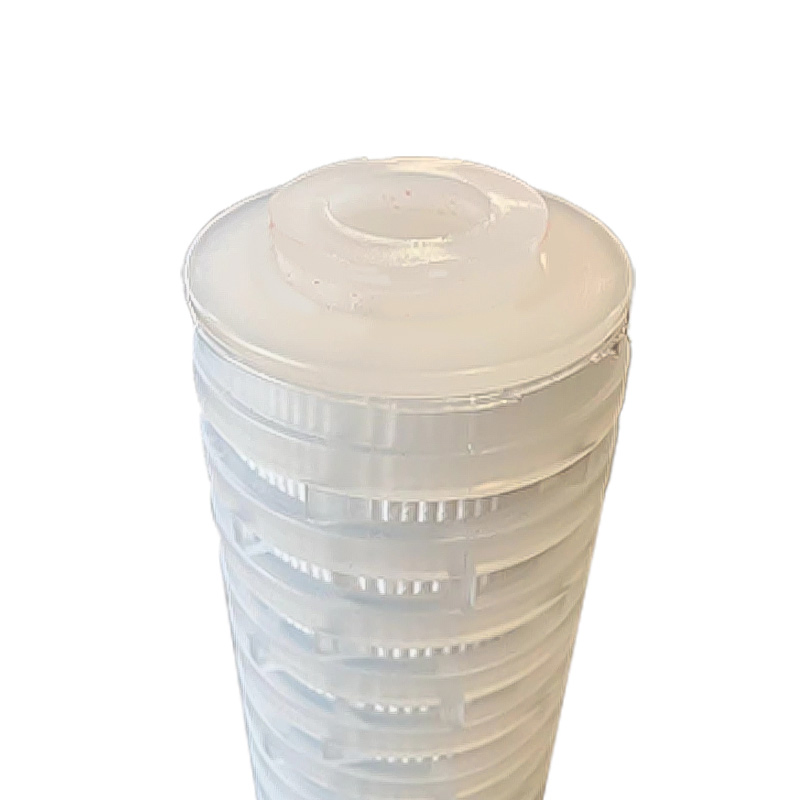

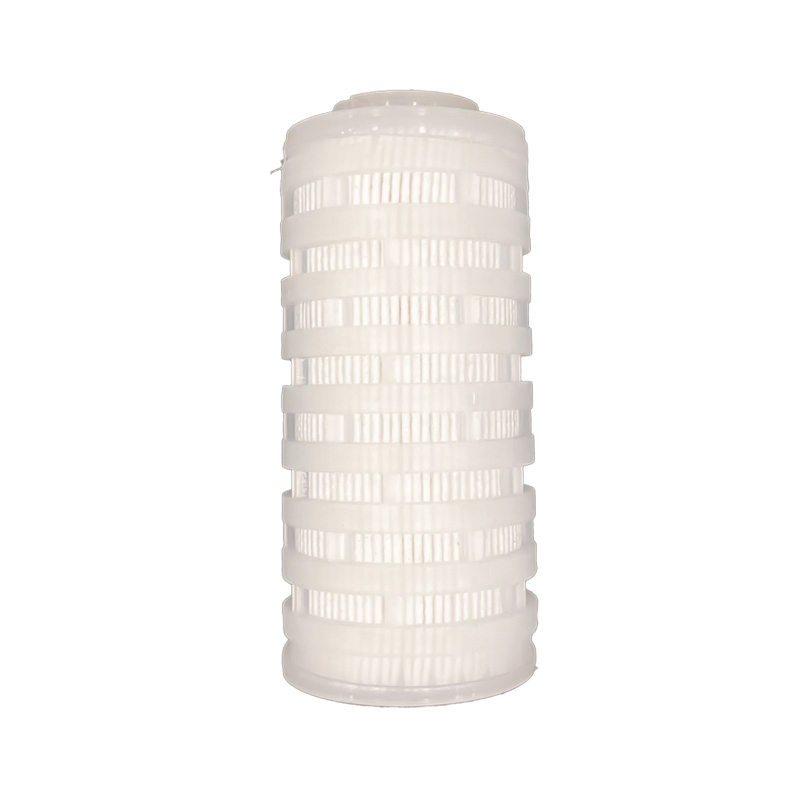

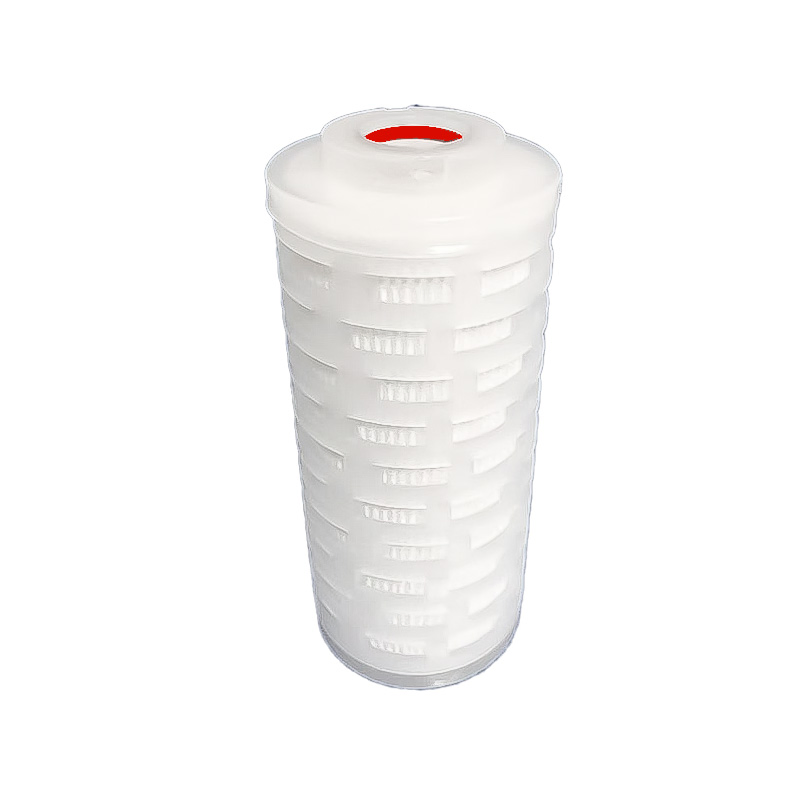

High Flow Electronic Grade Air Filter Factory Price Hydrophilic PTFE Filter Cartridge Pleated Air Filter Cartridge

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Efficiency
F9
Filtration Grade
HEPA Filter
Type
Folded Filter
Name
PTFE Air Filter
O-Ring
Silicone, EPDM, Nitrile
Size
5inch to 40inch
Useful
Filter Air
Peculiarity
Hydrophobicity
Product Name
High Flow Filter Cartridge
Capacity
25-100 L/Min
Filtration Media
Hydrophobic PTFE
Effective Area
0.60m2
Porosity
0.2um
pH Value
1-14
Max Temp
90℃
Capacity
50000 Piece/Month
Packaging & Delivery
Package Size
13.00cm * 70.00cm * 15.00cm
Gross Weight
0.120kg
Product Description

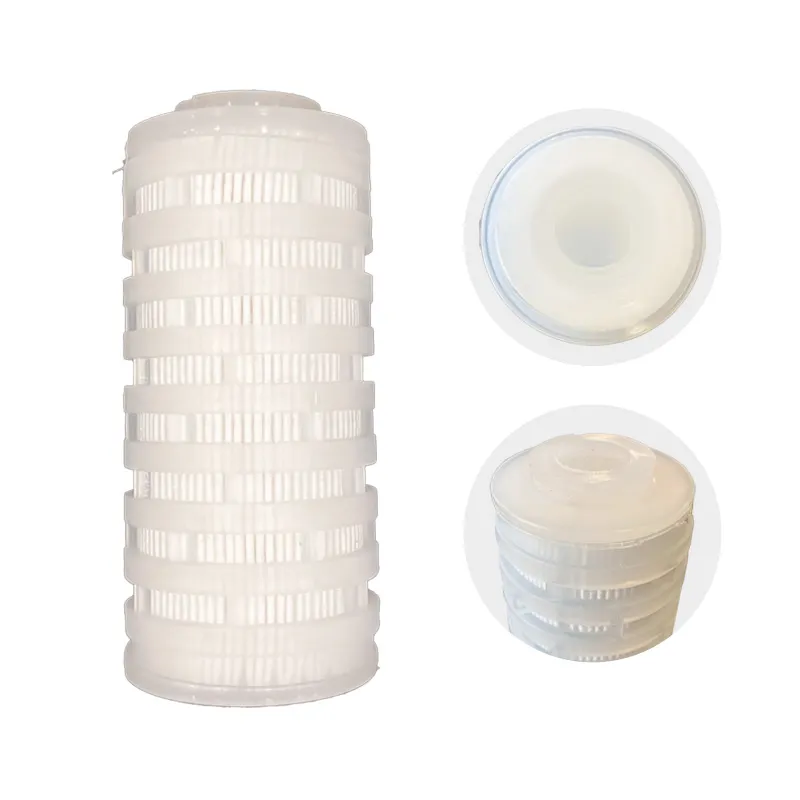

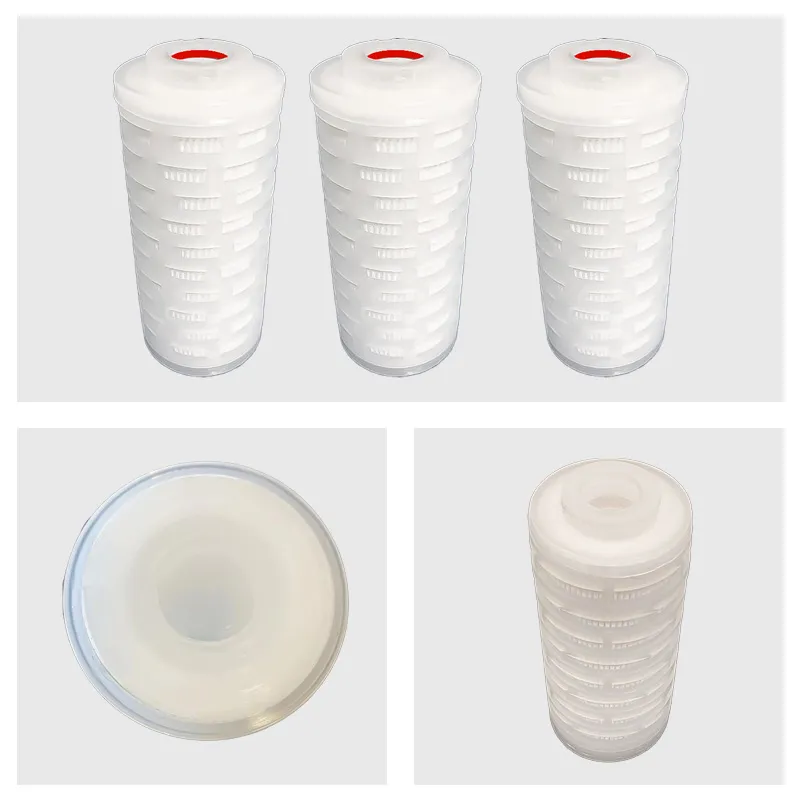

PTFE Filter Cartridge

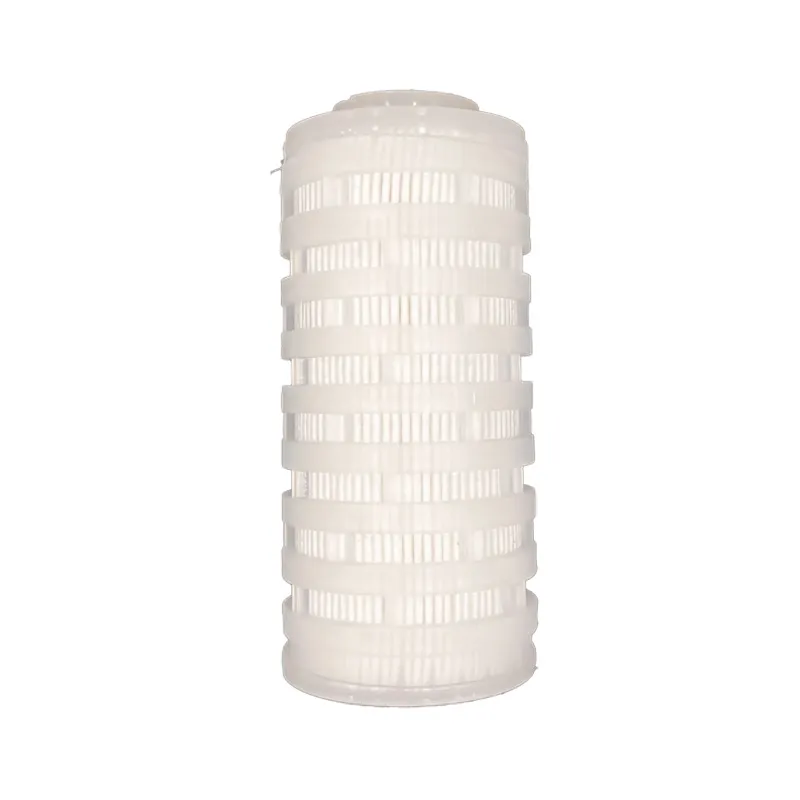

PTFE Pleated Filter Cartridge

This PTFE pleated cartridge is designed for depth filtration of fluids and serves as an ideal pre-treatment unit in the filter industry. It plays a critical role in media filtration and water treatment across various industries, effectively removing particles and bacteria in high-purity water, electronic chemicals, and the food & beverage sectors.

Available in both hydrophilic and hydrophobic membranes, providing cost-effective solutions for diverse filtration requirements.

Features & Benefits
  • Natural hydrophilic membrane
  • High bacterial retention rate
  • High porosity and large water flow rate
  • Low pressure drop
  • Low adsorption capacity and good chemical compatibility
  • Easy to wet with water and easy integrity testing
  • Multiply sterilizable at high temperatures
Applications
Applications Diagram
  • Filtration of strong acid and alkali solutions
  • Chemical intermediate water prefiltration
  • Prefiltration of water biological products
  • Pre-filtration of beverage and liquor
  • Fine filtration of high purity chemical reagents
  • Fine filtration of process water

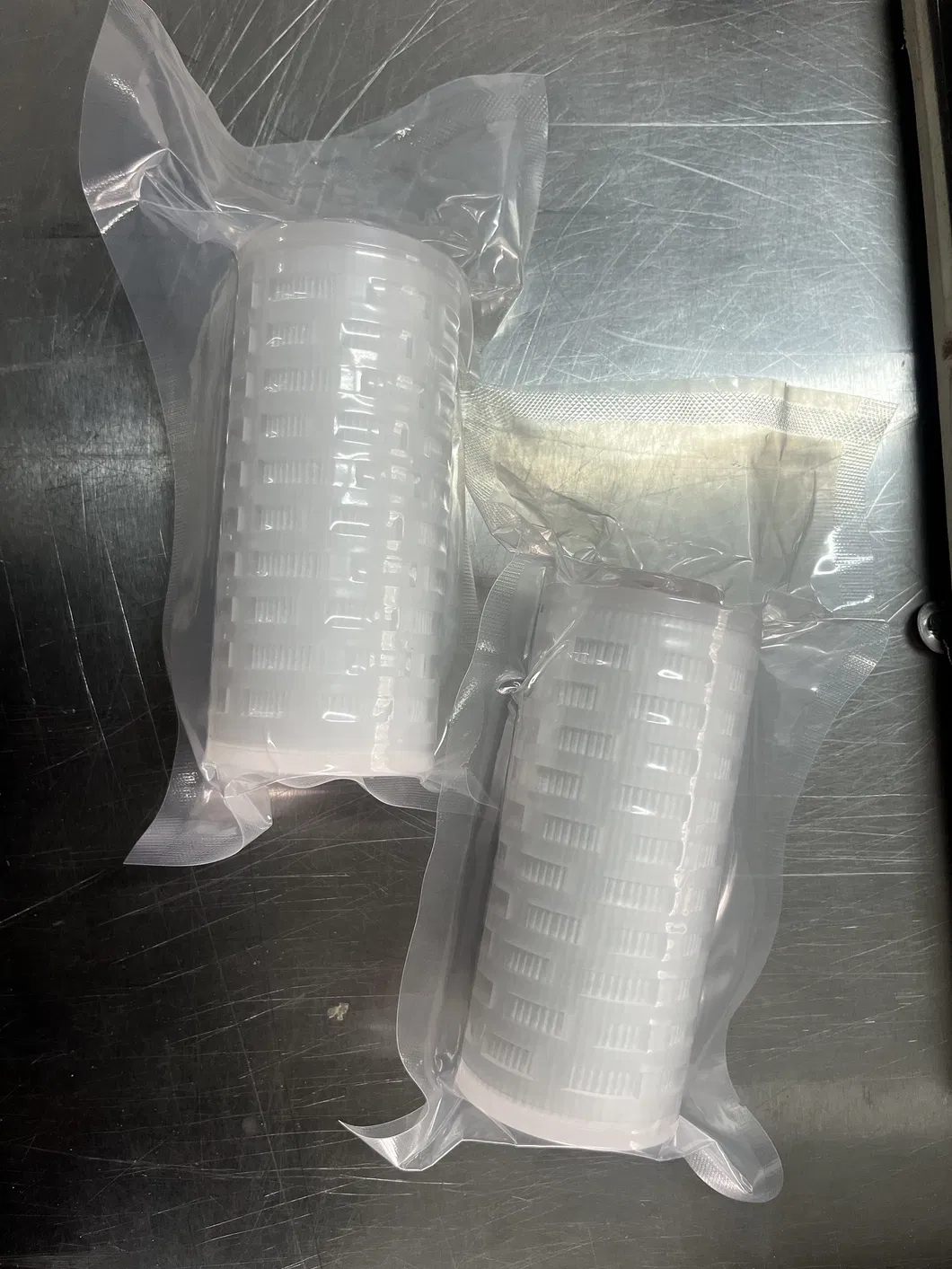

Packaging & Shipping
Recommended Products
Exhibition
Exhibition Display
Frequently Asked Questions
What is the main filtration material used?
The main filtration media is Hydrophobic or Hydrophilic PTFE, which offers excellent chemical compatibility and high porosity.
What are the available sizes for the filter cartridges?
We offer a wide range of sizes including 5 inch, 10 inch, 20 inch, 30 inch, and 40 inch to fit various industrial housing requirements.
What is the maximum operating temperature for this filter?
The filter can operate up to a maximum temperature of 90℃ with a pressure differential of ≤0.10MPa.
Can these filters be used for strong acids or bases?
Yes, the PTFE material and pH tolerance range of 1-14 make these filters ideal for the filtration of strong acid and alkali solutions.
Are different O-ring materials available?
Yes, we provide multiple O-ring options including Silicone, EPDM, and Nitrile to ensure compatibility with different fluids.
What is the typical production capacity?
Our current production capacity is approximately 50,000 pieces per month to ensure steady supply for large-scale projects.

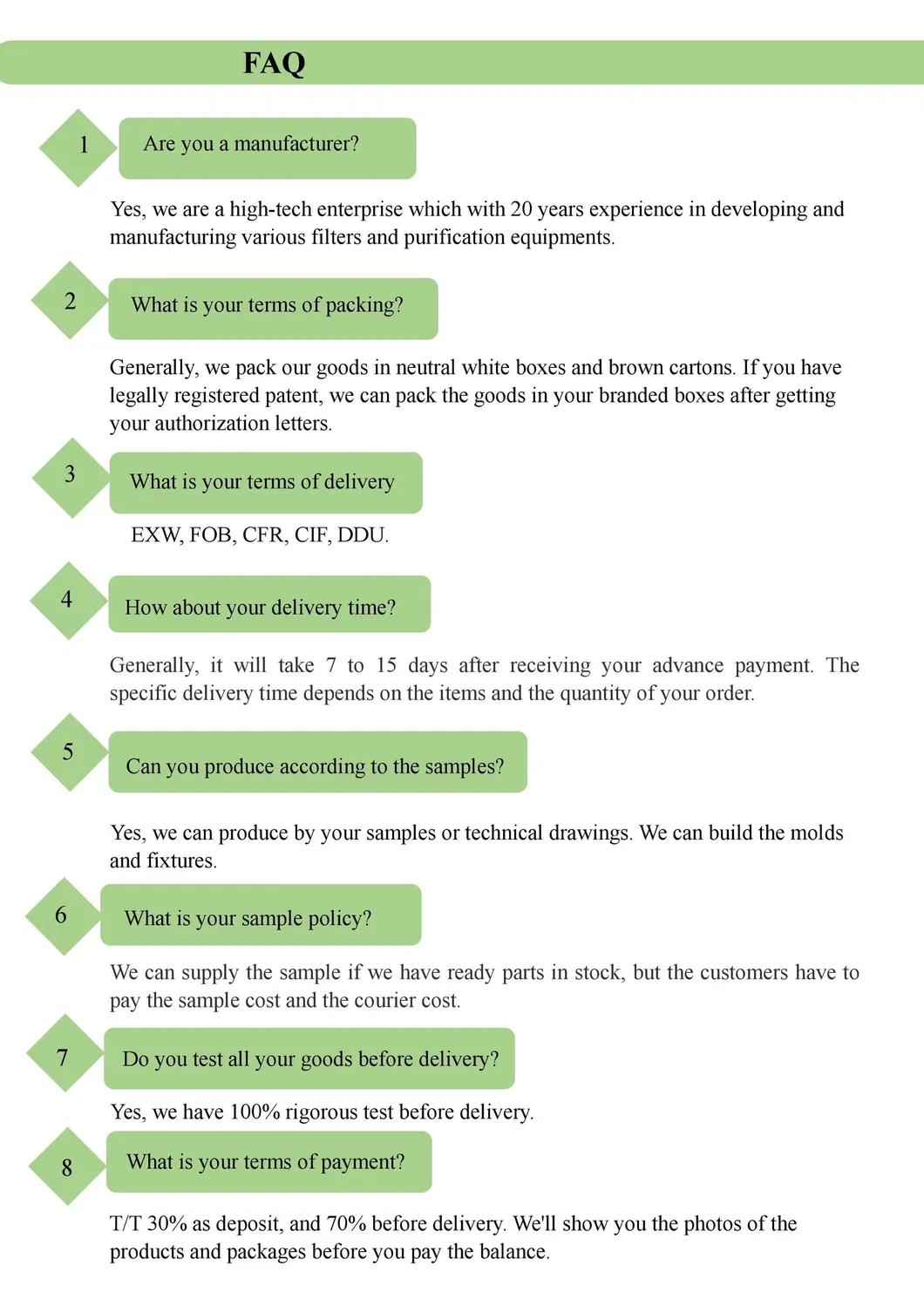

Process Info
