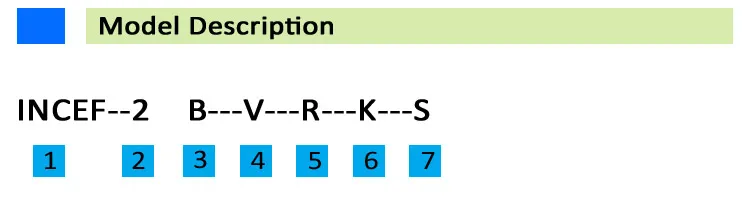

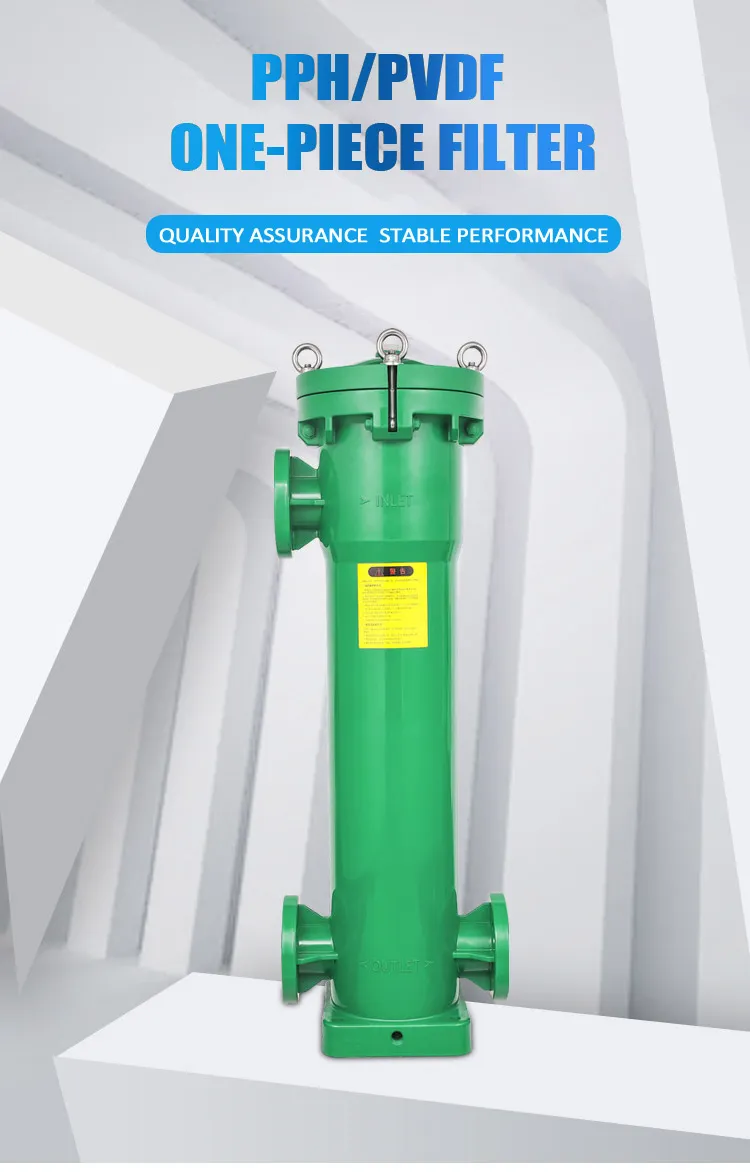

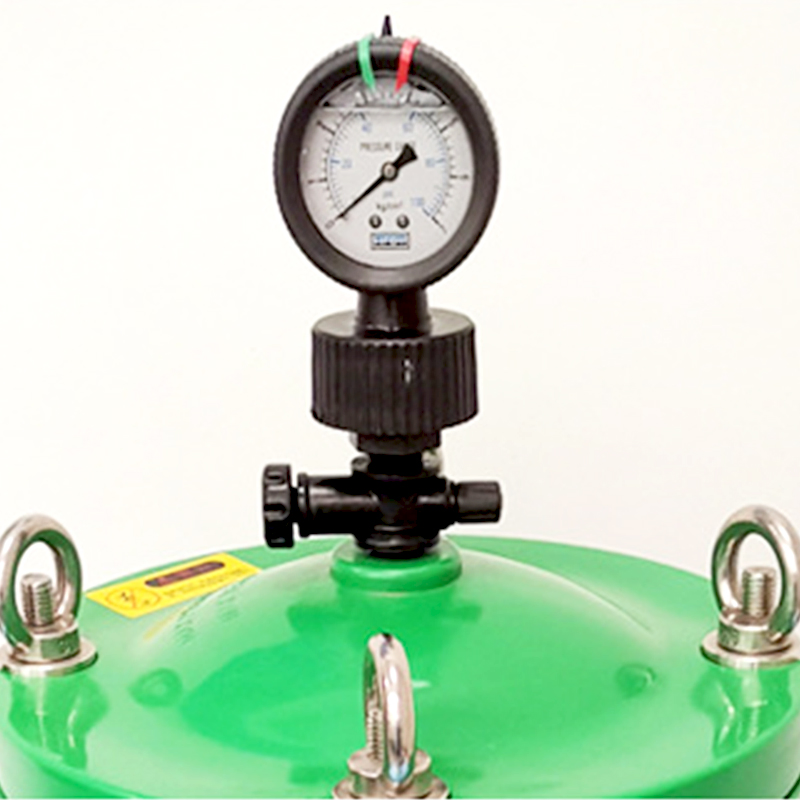

| Model Coding | Specifications |
|---|---|
| 1. Series | F: One-piece filter housing |
| 2. Filter bag size | 1: φ7"x17"L, 2: φ7"x32"L, 4: φ4"x15"L, 5: φ6"x20"L, 6: φ7"x22"L |
| 3. Upper cover style | A: Screw top cover, B: Lifting ring gland, AX: Union type inlet/outlet |
| 4. Main material | P: PPH, V: PVDF |
| 5. Upper cover joint | D: PT1/2 internal, R: PT1/2 external (with gauge), E: Exhaust valve |
| 6. Protection switch | K: Install protection switch (micro switch type) |
| 7. Special code | S: SUS316 metal accessories, T: Ti metal accessories |

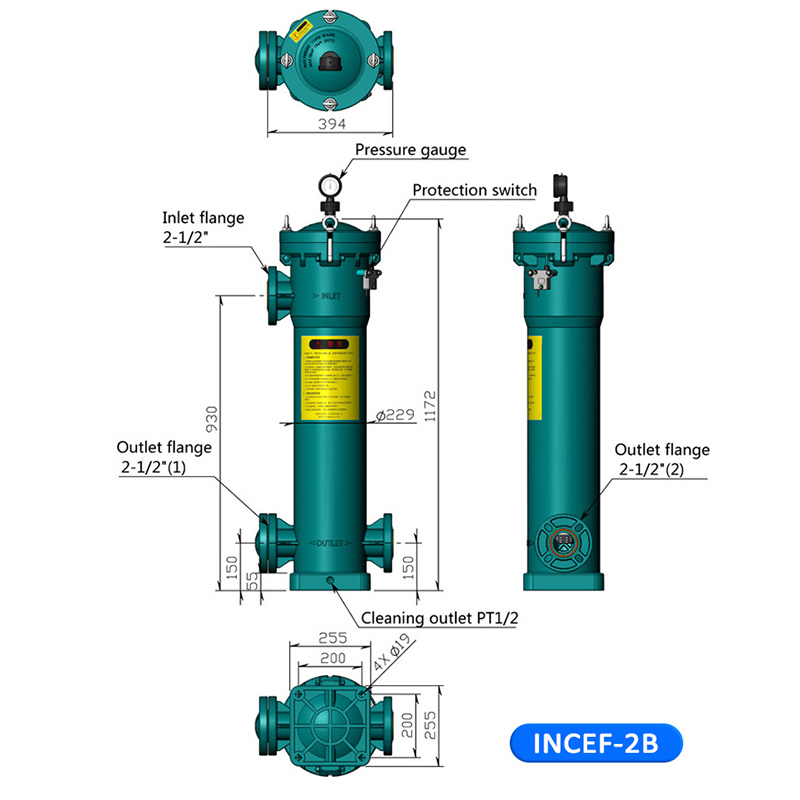

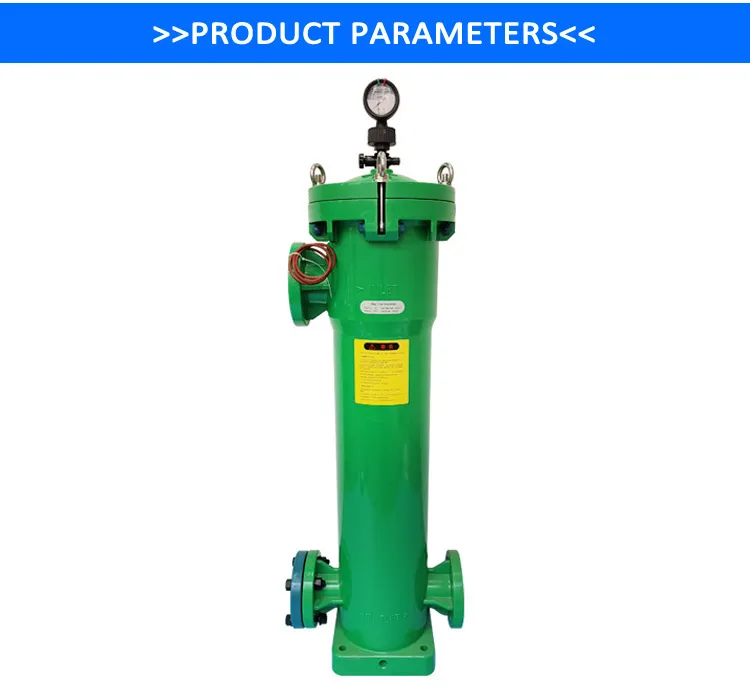

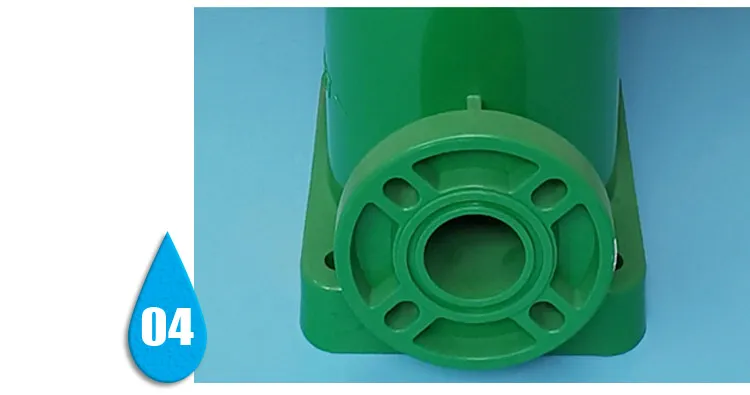

| Model | In-outlet (mm) | Bag Size (mm) | Filter Area (m²) | Capacity (l/kg) | Flow (m³/h) | Temp (ºC) | Pressure (Mpa) |
|---|---|---|---|---|---|---|---|
| INCEF-1A-P | 50x50 | 180x430 | 0.25 | 20.3/15.3 | 20 | 90 | 0.8 |
| INCEF-2A-P | 65x65 | 180x810 | 0.5 | 32/24.2 | 40 | 90 | 0.8 |
| INCEF-2B-V | 65x65 | 180x810 | 0.5 | 32/24.2 | 40 | 90 | 0.8 |
| INCEF-4A-P | 40x40 | 105x380 | 0.12 | 6.5/5.9 | 12 | 90 | 0.8 |
| INCEF-5A-P | 50x50 | 150x510 | 0.3 | 2.8/10.8 | 22 | 90 | 0.8 |

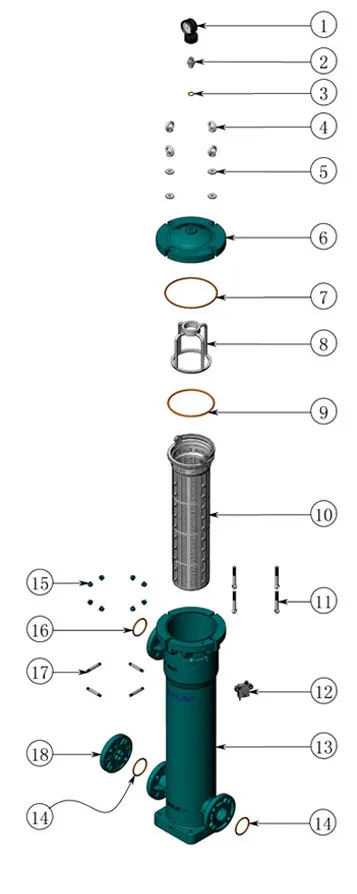

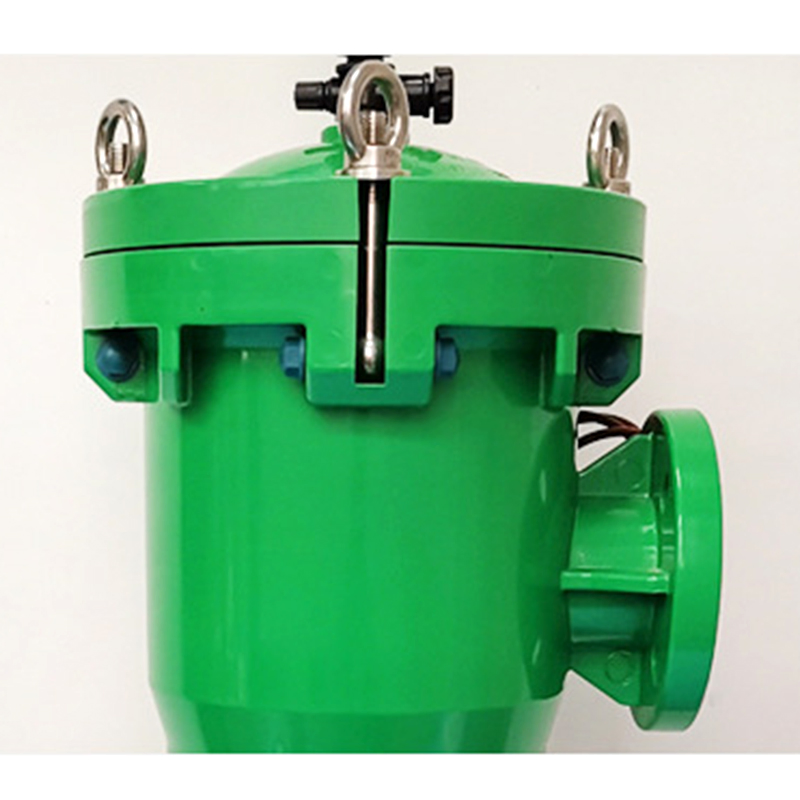

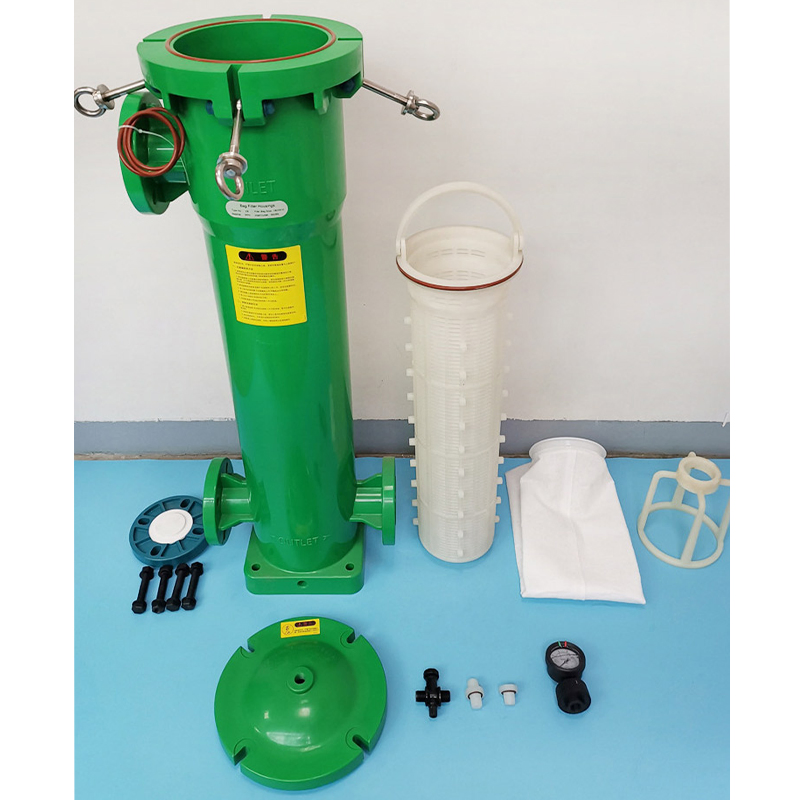

| No. | Component | Material |
|---|---|---|
| 1 | Pressure Gauge | Spec. Confirmed |
| 6 | Upper Cover | PVDF |
| 10 | Basket | PPH |
| 13 | Filter Body | PVDF |
| 15 | Nut | PVDF |

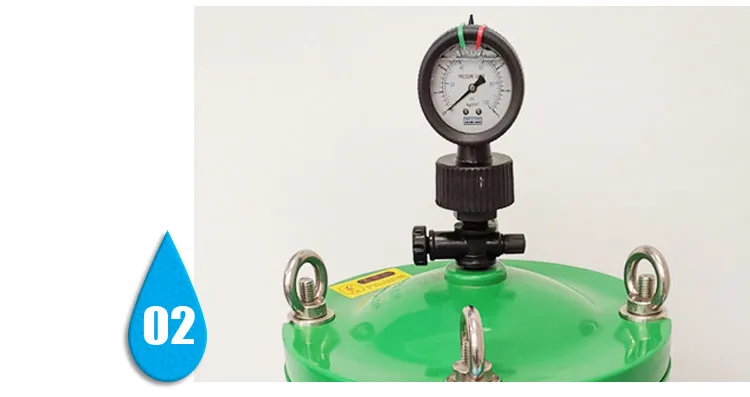

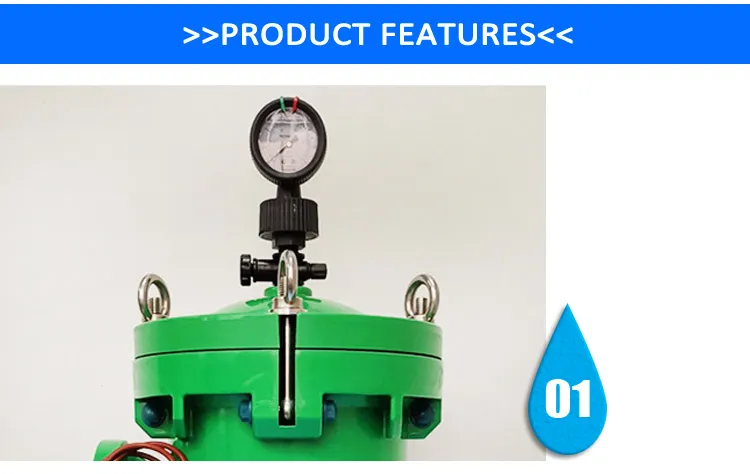

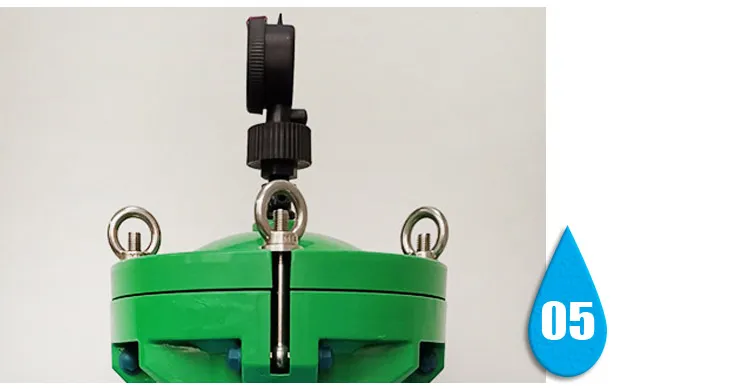

Installation: 1. Clean sealing rings. 2. Place bag into mesh basket. 3. Press ring vertically. 4. Tighten cover clockwise. 5. Install gauge and start pump.
Replacement: 1. Stop pump and drain liquid. 2. Open cover counterclockwise. 3. Clean parts and replace bag.
