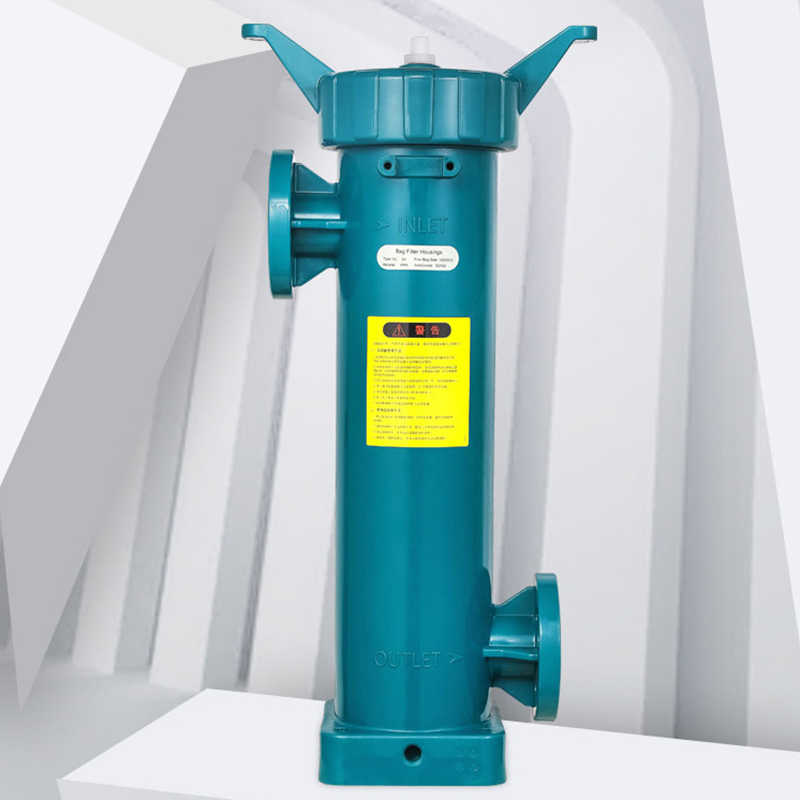

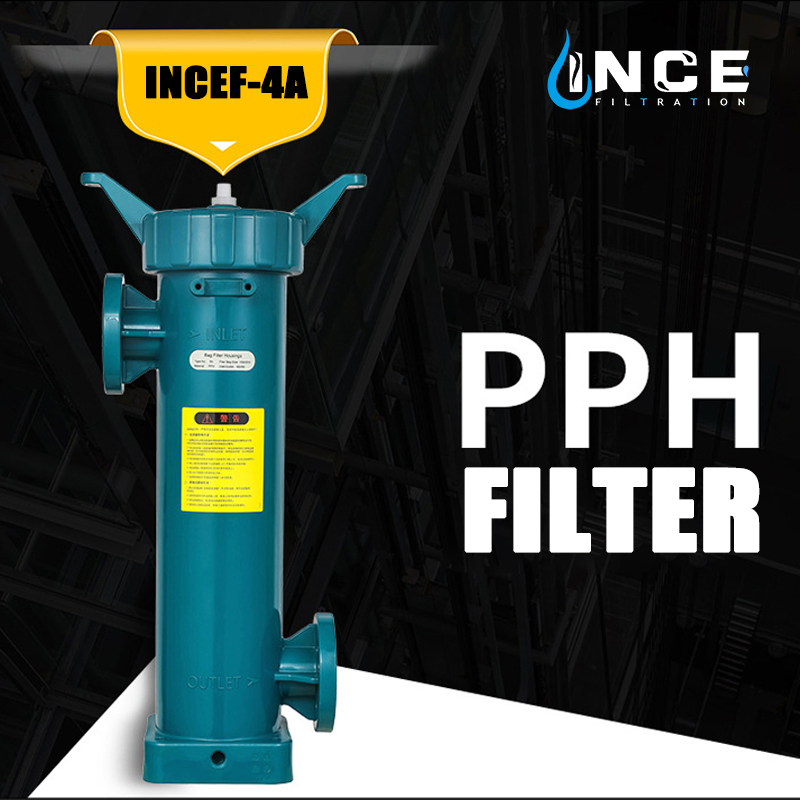

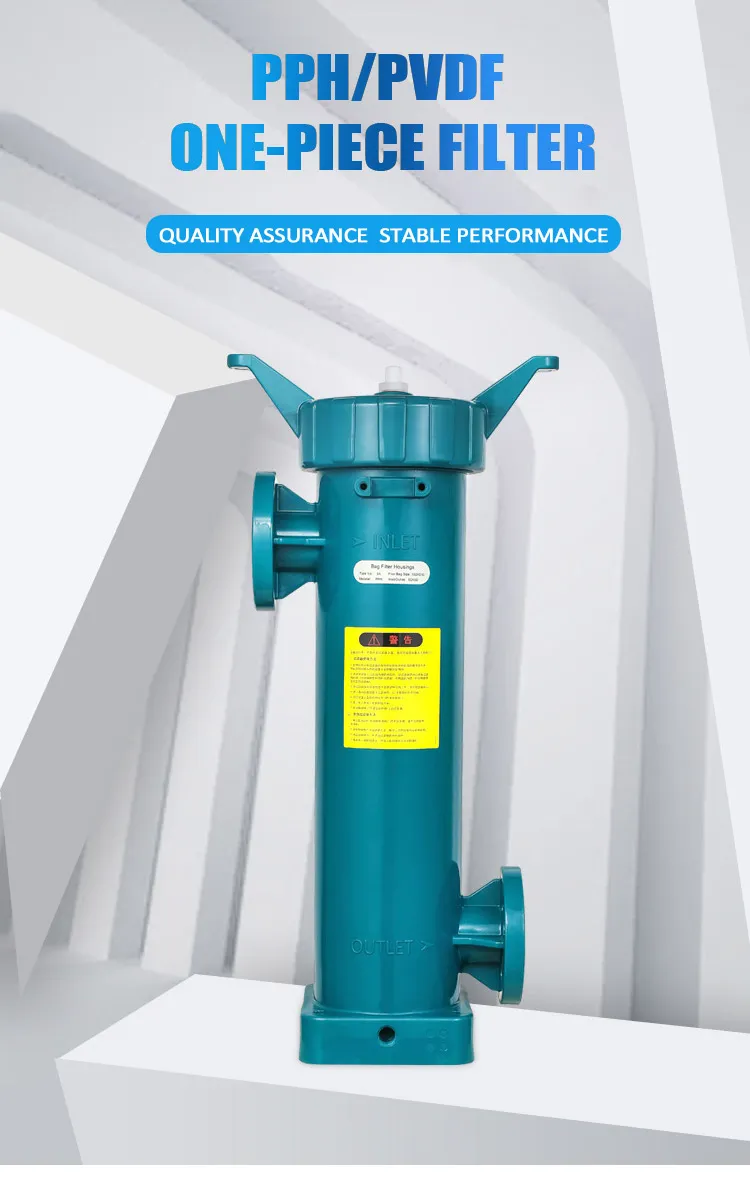

Product Overview

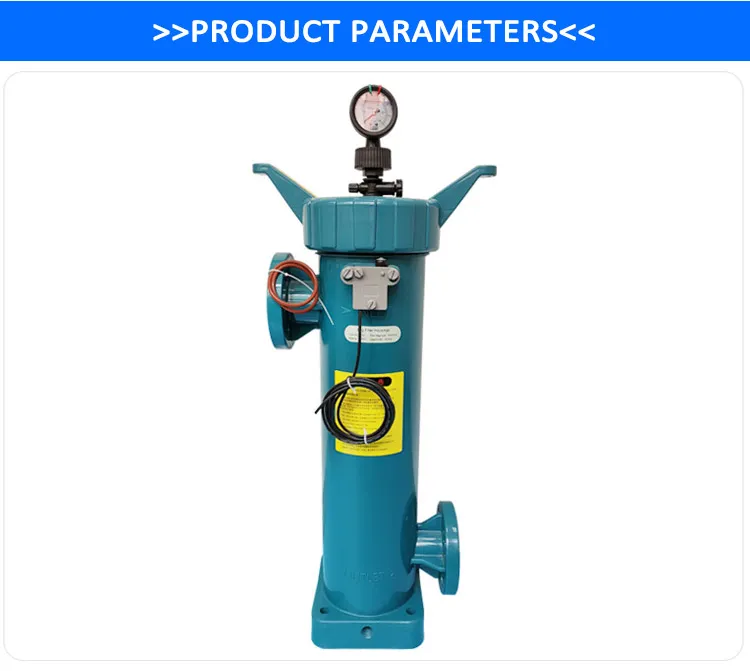

| Parameter |
Specifications |

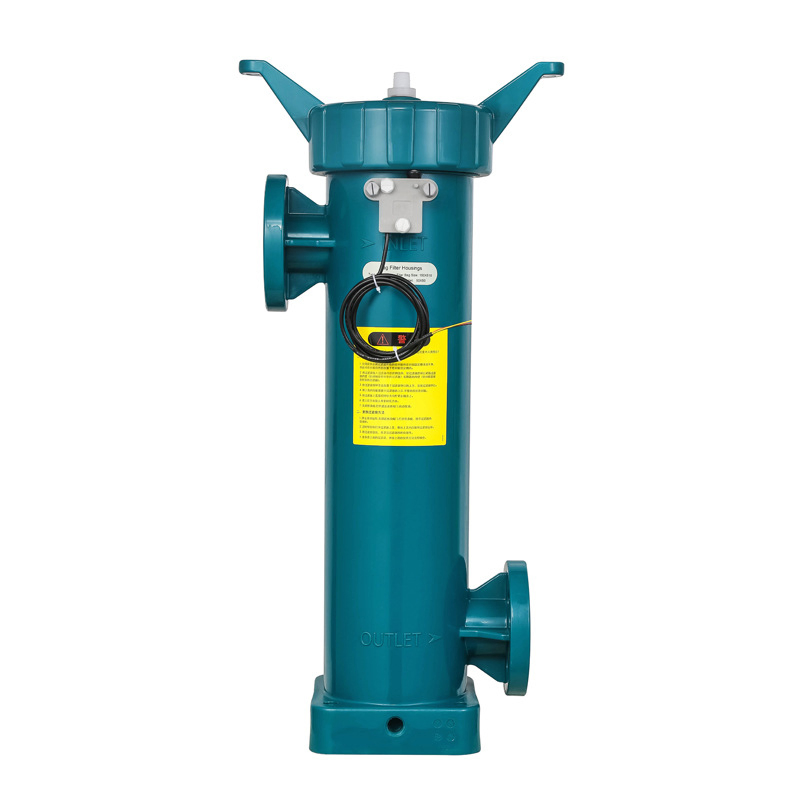

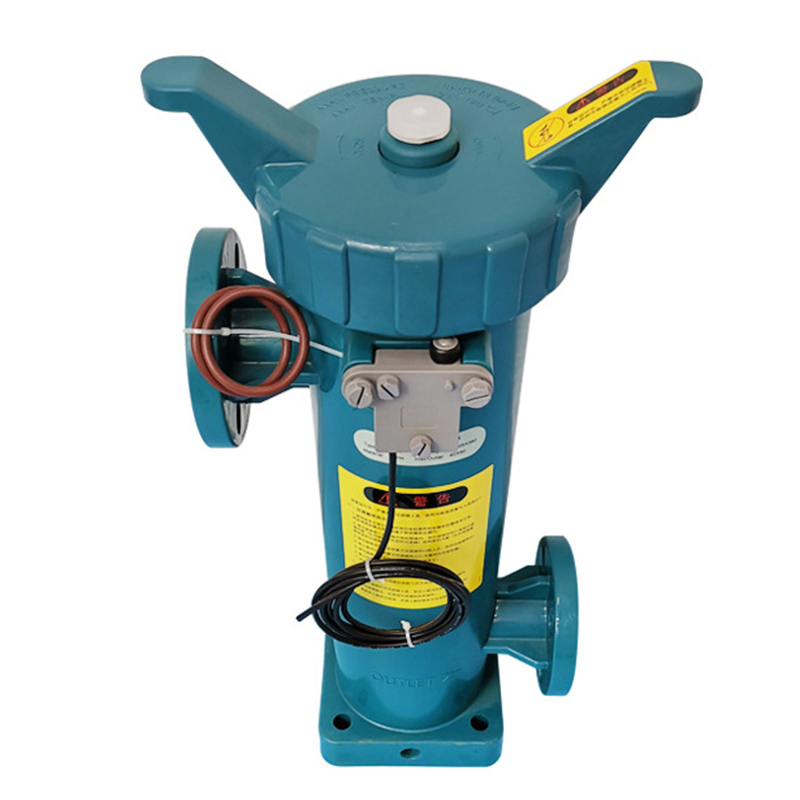

| Model Definition | One-piece filter housing |
| Filter Bag Size Options | φ7"x17"L, φ7"x32"L, φ4"x15"L, φ6"x20"L, φ7"x22"L |
| Upper Cover Style | A: Screw top cover, B: Lifting ring gland |
| Main Material | PPH (Standard), PVDF (Optional) |
| Joint Type | Internal/External tooth PT1/2, Exhaust valve options |
| Safety Switch | Micro switch type available |
Technical Specifications
| Model |
In-outlet (mm) |
Bag Size (mm) |
Area (m²) |
Capacity (L) |
Max Flow (m³/h) |
Temp (°C) |
Max Pressure |

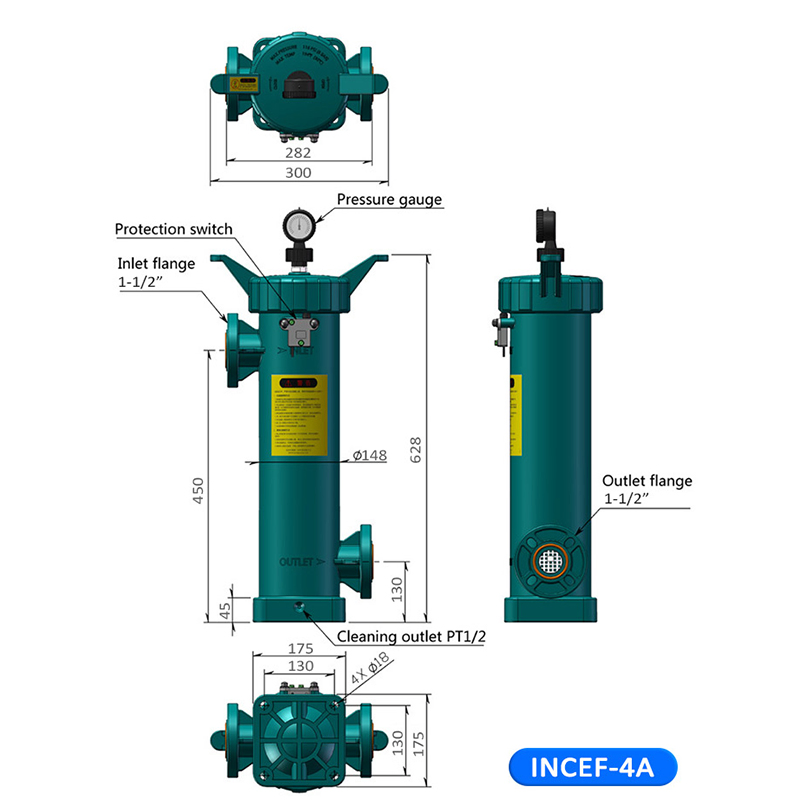

| INCEF-1A-P | 50x50 | 180x430 | 0.25 | 20.3 | 20 | 90 | 0.8 Mpa |
| INCEF-2A-P | 65x65 | 180x810 | 0.5 | 32.0 | 40 | 90 | 0.8 Mpa |
| INCEF-4A-P | 40x40 | 105x380 | 0.12 | 6.5 | 12 | 90 | 0.8 Mpa |
| INCEF-5A-P | 50x50 | 150x510 | 0.3 | 2.8 | 22 | 90 | 0.8 Mpa |
| INCEF-6A-P | 65x65 | 180x560 | 0.35 | 24.0 | 25 | 90 | 0.8 Mpa |

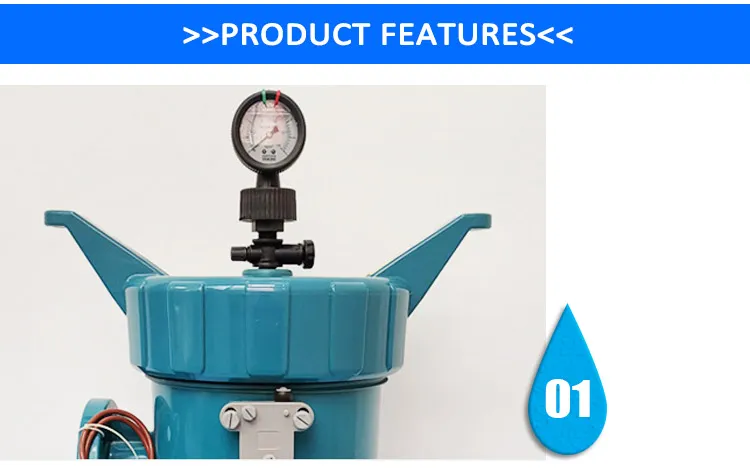

Core Features
1. Multi-functional Design: Equipped with standard 4# filter bags (φ105*380MM), convertible to 10"*1 cotton core filters.
2. International Compatibility: Matches global brands like EATON and FSI.

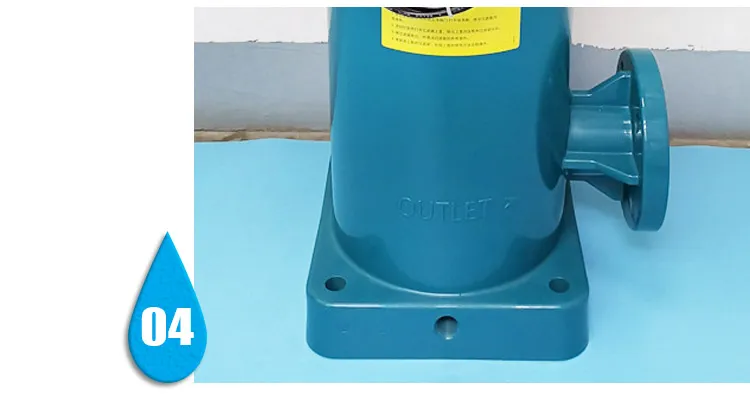

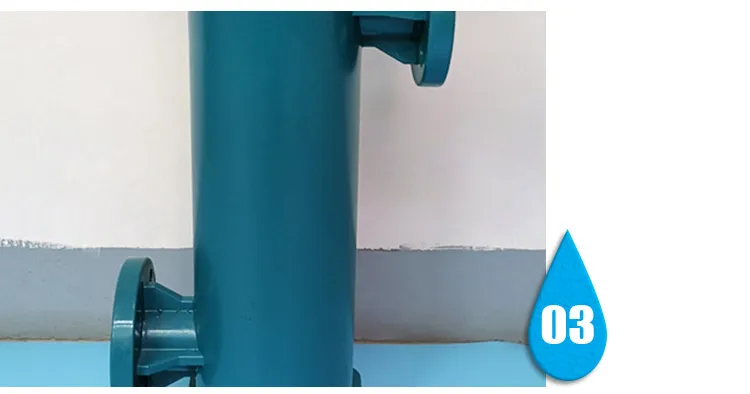

3. One-Piece Molding: No welding points, ensuring zero leakage and easy cleaning.
4. Corrosion Resistance: Made of imported PPH; PVDF and ETFE options available.

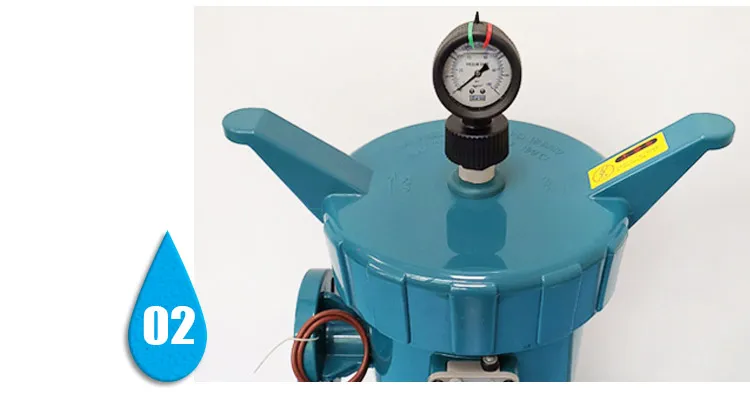

5. Tool-free Maintenance: Screw-in upper cover allows quick bag replacement.
Component Structure

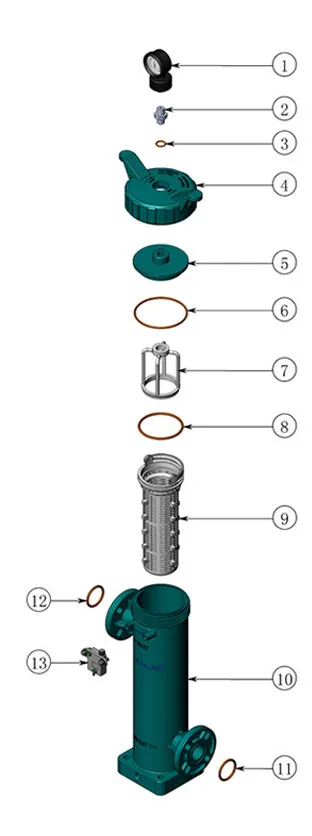

| No. | Components | Material |
|---|
| 1 | Pressure gauge | Custom |

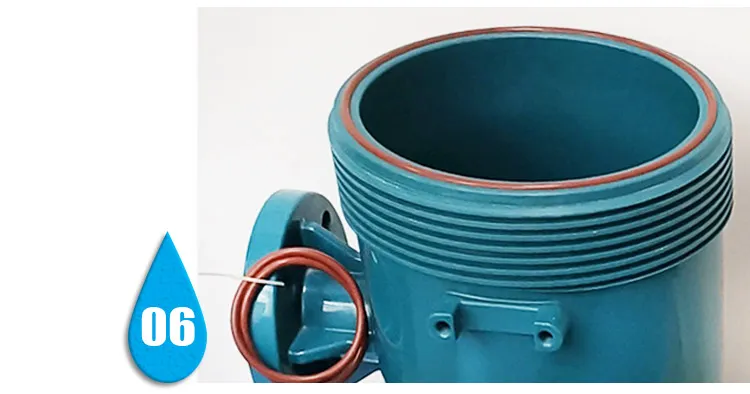

| 3 | O-ring | FKM |
| 4 | Upper cover | PPH |
| 9 | Basket | PPH |
| 10 | Filter body | PPH |
Operation & Maintenance
Installation Steps:
- Clean all sealing rings and grooves before placement.
- Insert the filter bag into the mesh basket.
- Place the pressure ring vertically above the bag.
- Tighten the upper cover clockwise.
- Open valves and start the pump.
WARNING: IT IS STRICTLY PROHIBITED TO OPEN THE UPPER COVER WHILE THE EQUIPMENT IS RUNNING.
FAILURE TO COMPLY MAY CAUSE SERIOUS CASUALTIES.
Frequently Asked Questions
What is the maximum operating temperature for the PPH housing?
The housing can operate at temperatures up to 176°F (80°C), making it suitable for a wide range of industrial chemical applications.
Does the filter housing support outdoor installation?
Yes, the material contains UV-resistant additives, ensuring durability and performance in various climates and outdoor environments.
What is the pressure rating for these filters?
The filters are designed to operate safely within a pressure range of up to 116 PSI (8 BAR).
Are tools required to replace the filter bags?
No, the screw-in top cover design allows for manual opening and closing without the need for specialized tools, facilitating quick maintenance.
Can I use different types of filter bags?
Absolutely. It supports standard size 4# filter bags and is compatible with internationally renowned brands such as EATON and FSI.
How does the leakage protection work?
The unit features a one-piece molded barrel design with no welding points, combined with high-quality FKM O-rings to ensure a complete seal and zero leakage.
