Customizable Bag Filter Housing for Chemical, Food and Water Industries

1 / 5

Customizable Bag Filter Housing for Chemical, Food and Water Industries

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

BJD101AKT304

Applications

Water Treatment/Paints, Inks Plating Solutions

Max. Operating Temp.

130ºC

Max. Pressure Resistance

0.8 MPa

Bag Size

#1, #2, #3, #4

Material

304 / 316L Stainless Steel

Transport Package

Carton / Wooden Case

Package Size

93.00cm * 44.00cm * 46.00cm

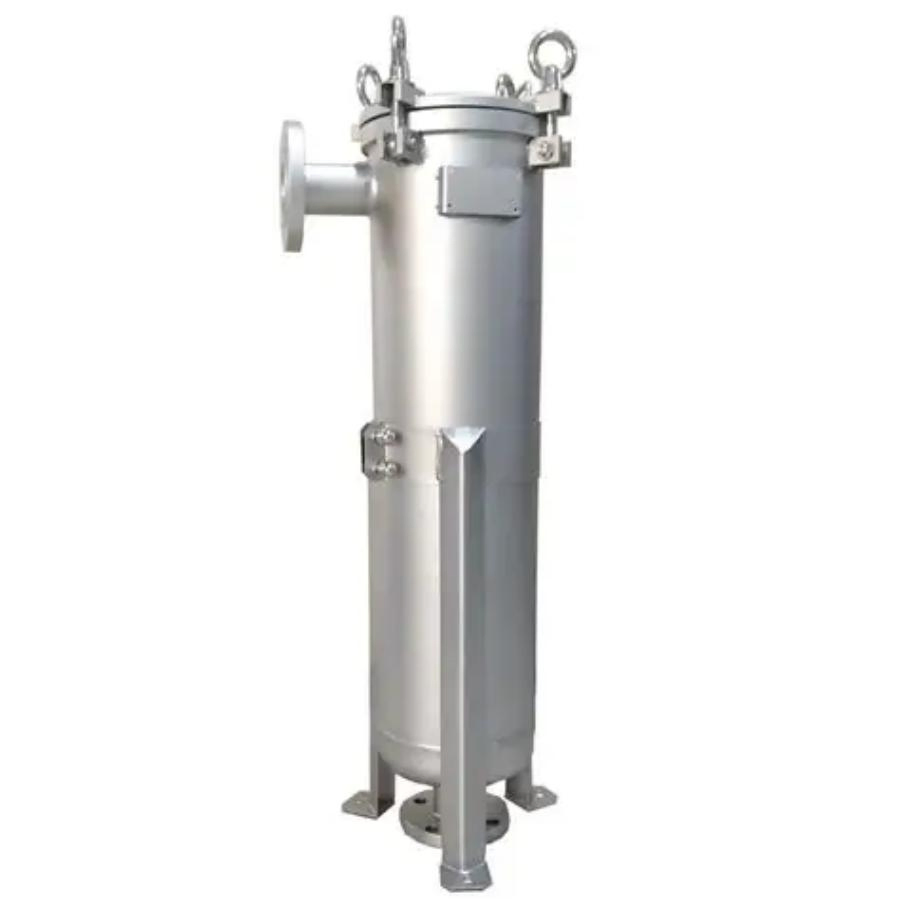

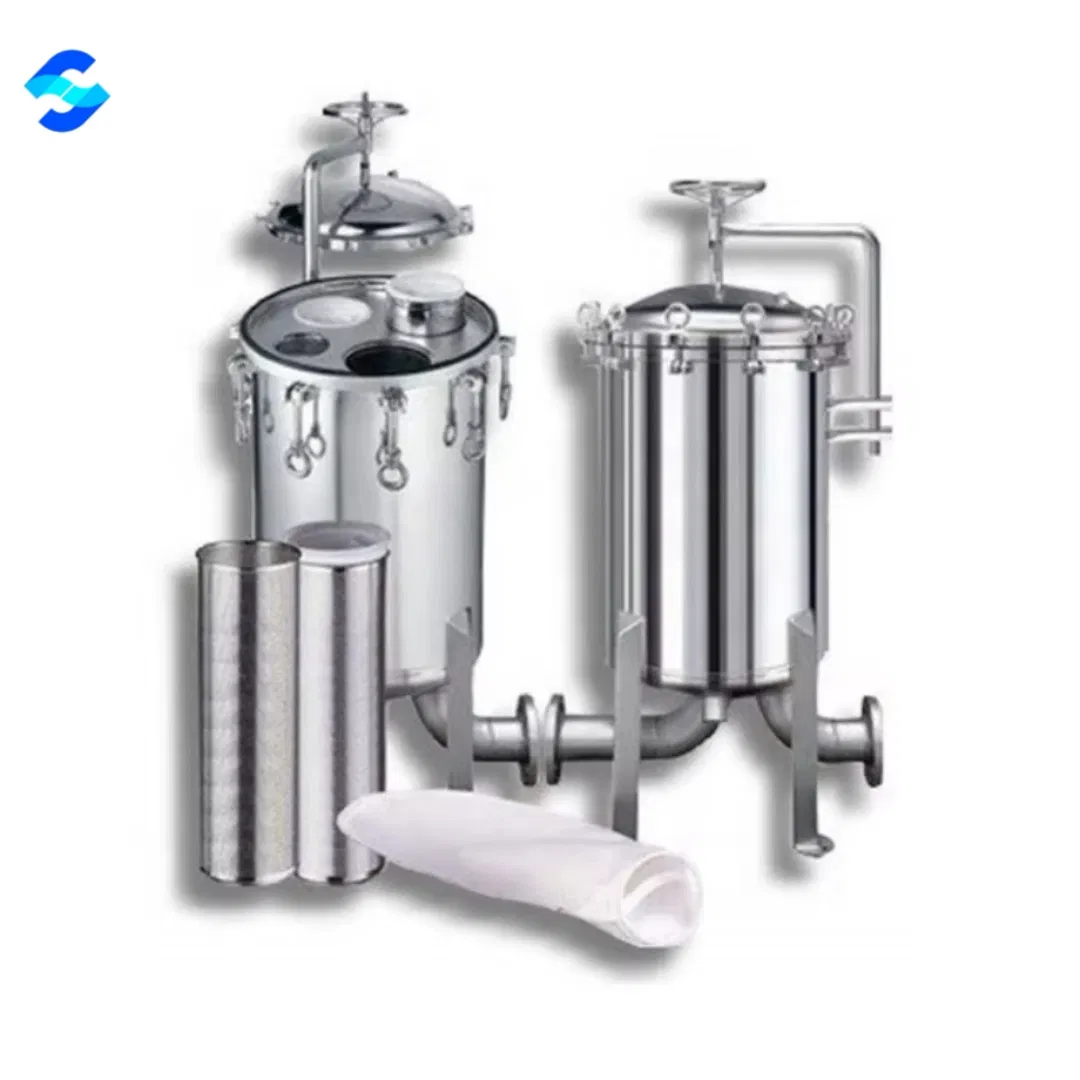

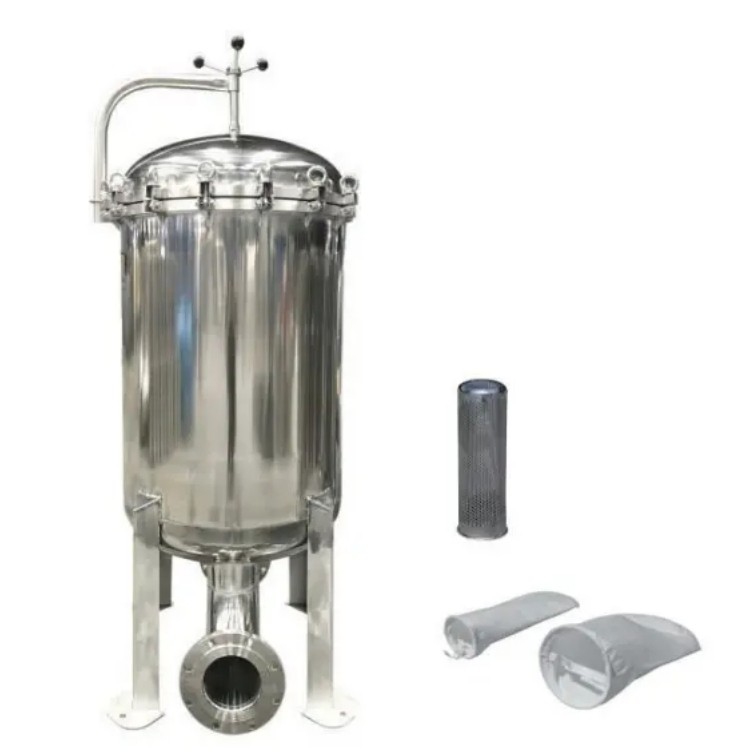

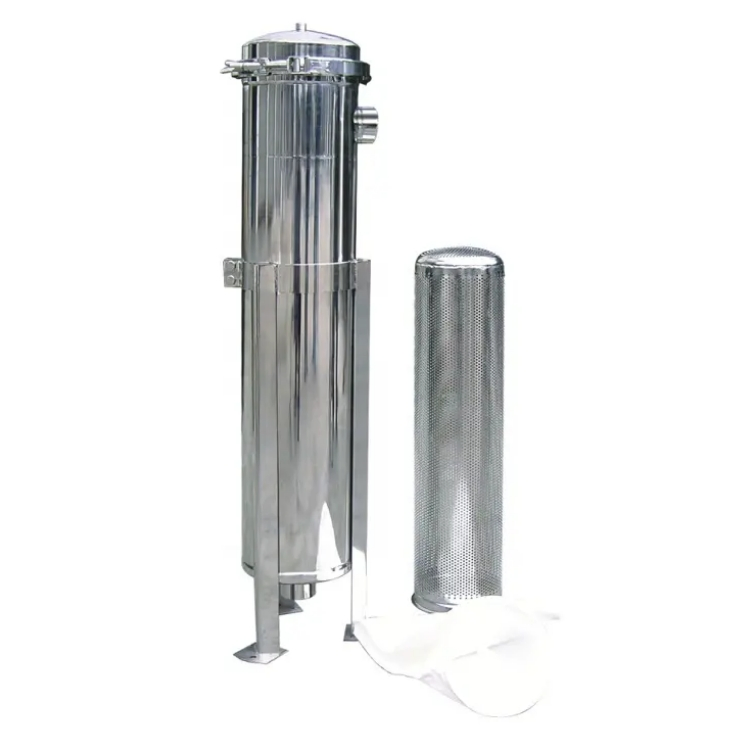

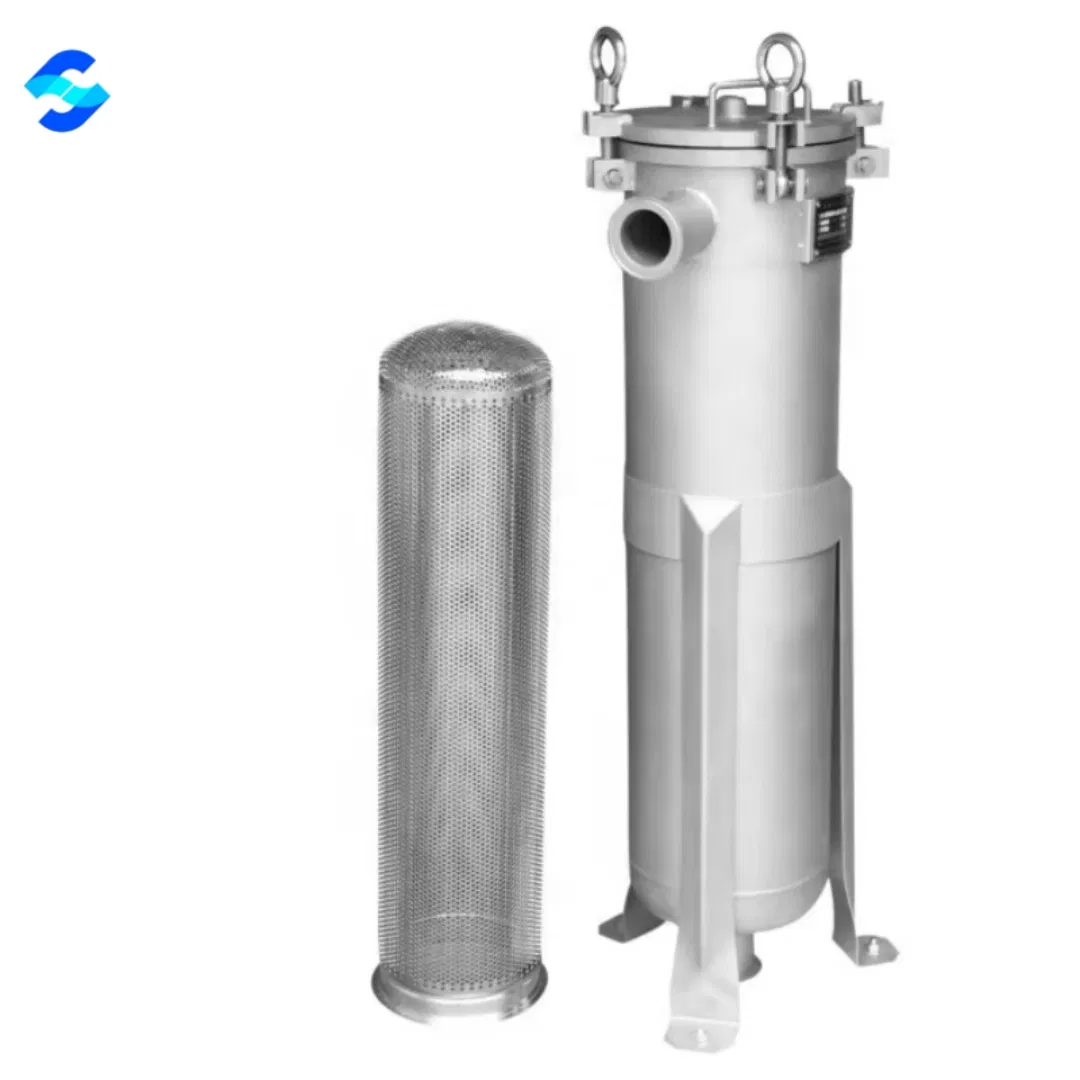

🔍 PSFG SERIES BAG FILTER HOUSING

The PSFG series is a sanitary grade bag filter housing. It adopts a filtration structure design with a side inlet and bottom outlet, meeting the strict filtration requirements of sanitary grades.

🎯 Typical Applications

Liquid prefiltration
Particularly suitable for large volume applications
Handling high viscosity liquids

⭐ Features and Benefits

Scientific structure with excellent sealing and no dead angles
Complete liquid discharge capability
Upper opening structure for easy disassembly and use
Compact design requiring minimal floor space

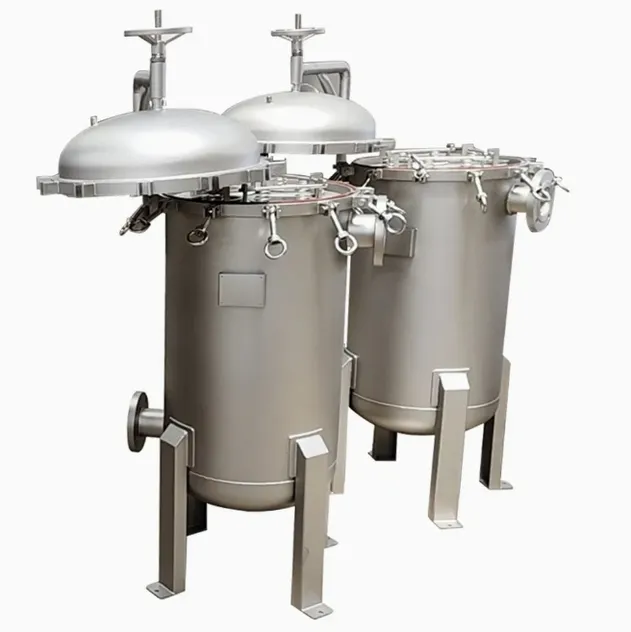

🎬 Operation & Structure Showcase

⚙️ Key Configurations

Materials

Housing: 304/316L
Vent / Drain: 304/316L
Eye Bolt: 304
Standing Leg: 304

Connections

Cage: Ring
Inlet/Outlet: Flange
Vent: G1/4"
Drain: G1/4"
Manometer: M14*1.5

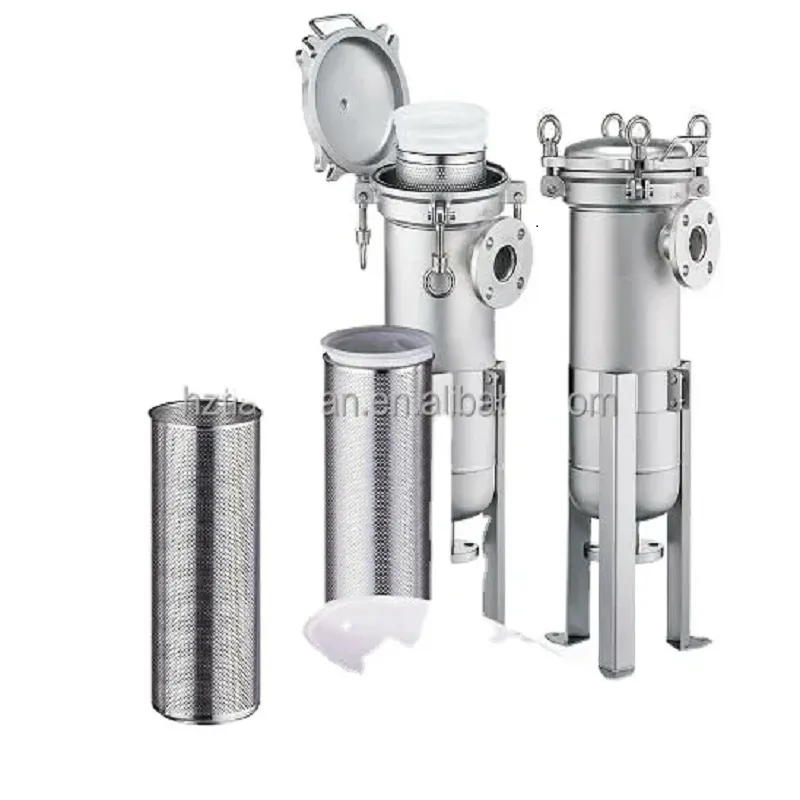

📊 Technical Data Sheet

BAG Q'TY	BAG SIZE	MATERIAL	CONNECTION	INLET/OUTLET	O-RING	SURFACE FINISH
01	1# (180*480)	S (304)	AO (DOE)	F50 (DN50)	S (Silicone)	M (Mirror Polished)
02	2# (180*810)	L (316L)	BN (222)	F80	V (Viton)	P (Sand Blasting)
03	3# (102*229)	C (C-276)	CN (226)	F125	E (EPDM)	-
04	4# (102*381)	T (TA2)	-	F150	T (PTFE)	-

🏢 Professional Manufacturing

Founded in 2019, our facility is an innovative enterprise specializing in the development, production, and sales of pleated filters, capsule filters, filter membranes, filter bags, and stainless steel filter housings.

Our research and development team possesses rich experience in industrial filtration technology, collaborating with recognized institutions to secure numerous utility and invention patents.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs support
Turnkey project solutions

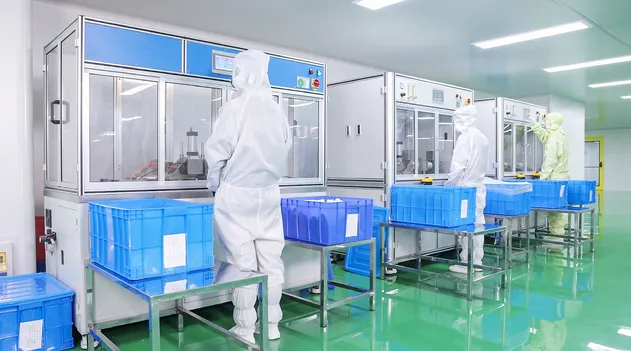

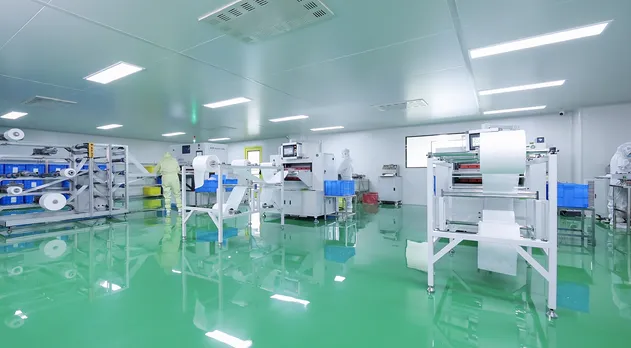

Factory Capability

Area: 2000 m²
Clean Room: 100,000 Grade
Capacity: 50,000 PCS/Month

❓ Frequently Asked Questions

What is the lead time for bag filter housing orders?

Standard models typically ship within 15–30 days, while customized units require 30–45 days depending on the complexity.

What materials are available for the filter housing?

We primarily use high-grade 304 and 316L stainless steel to ensure durability and chemical resistance.

Can the surface finish be customized?

Yes, we offer multiple finishing options including Mirror Polished (Interior 0.3μm/Exterior 0.4μm) and Sand Blasting.

What is the maximum operating temperature and pressure?

The maximum operating temperature is 130°C, and the housing is designed for a pressure resistance of up to 0.8 Mpa.

What documentation do you provide for international exports?

We provide a complete export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Do you support customized bag sizes?

Absolutely! We support standard sizes #1, #2, #3, and #4, and can offer tailored attachments to meet specific requirements.
