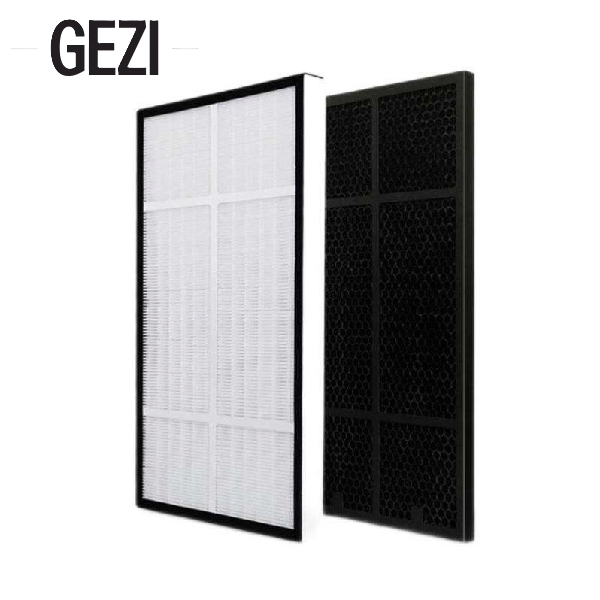

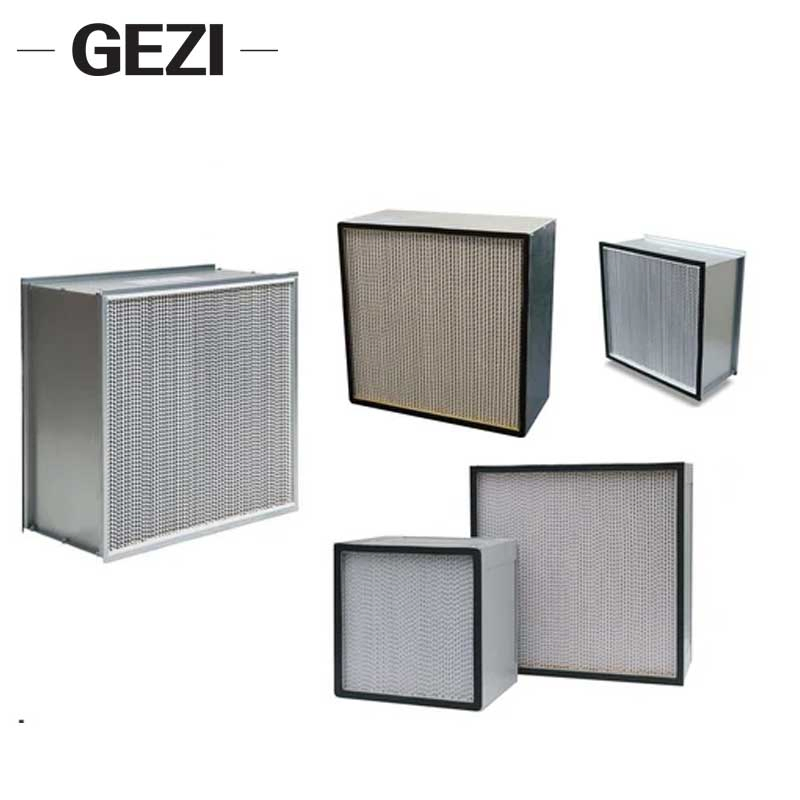

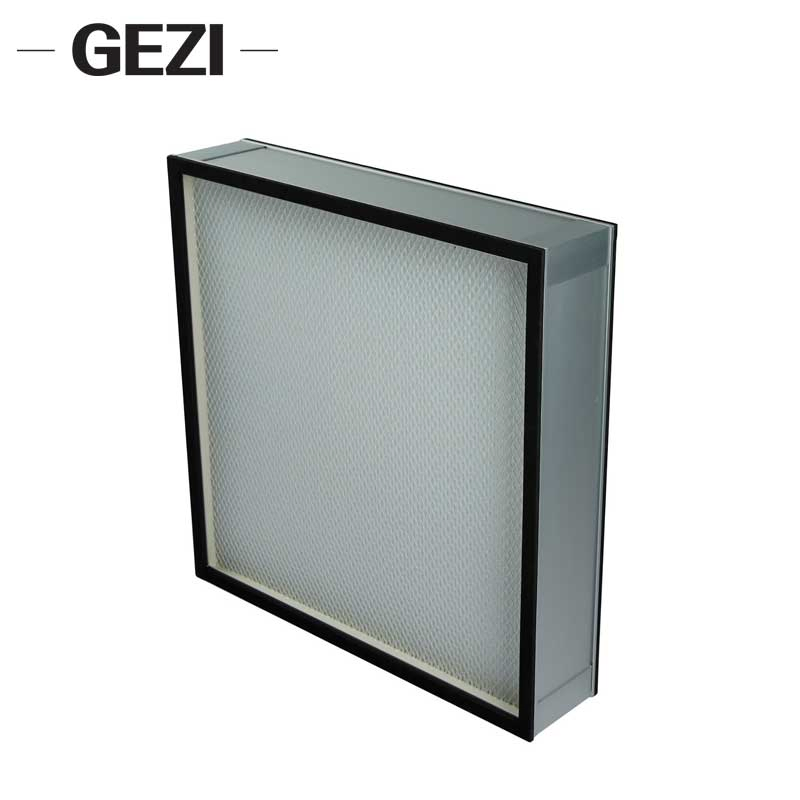

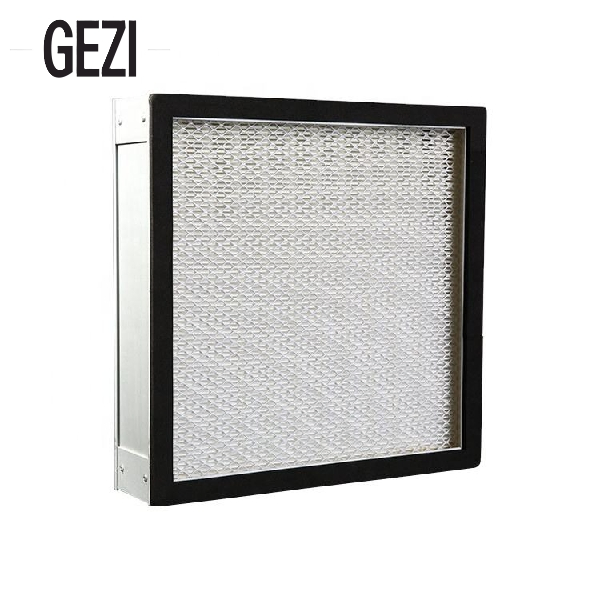

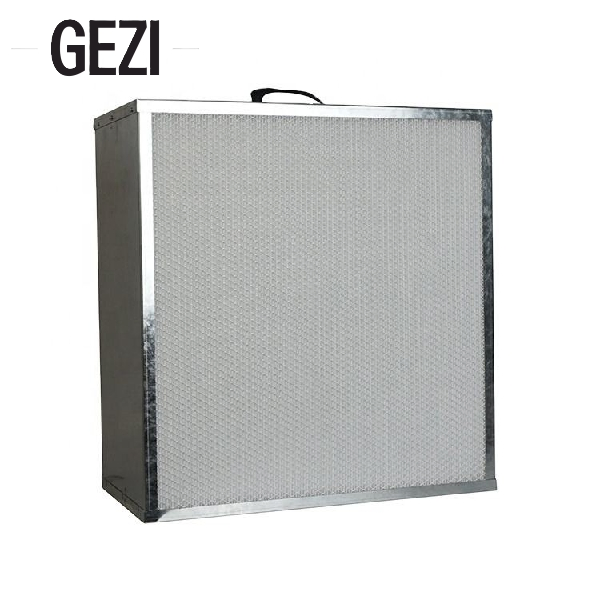

Custom Depth Aluminum Frame 99.99% Efficiency H13 Grade HEPA Filter

1 / 5

Custom Depth Aluminum Frame 99.99% Efficiency H13 Grade HEPA Filter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Medium Material

Fiberglass

Filtration Grade

HEPA Filter

Type

Folded Filter

Filter Media

Glass Fiber / Synthetic Fiber

Particle Size

≥0.3um Customized

Frame Material

Galvanized Steel / Aluminum / ABS / MDF

Sealant

Polyurethane / Hot-Melt Glue

Gasket Type

EVA / PU / Neoprene / None

Dimensions

Customized

Application

Cleanroom, HVAC, Pharmaceutical, Hospital

Origin

China

Production Capacity

500,000 Pieces/ Year

Product Description

Factory 99.95% Industrial Efficient HEPA Filter Mini Pleated HEPA Filter H13 Grade

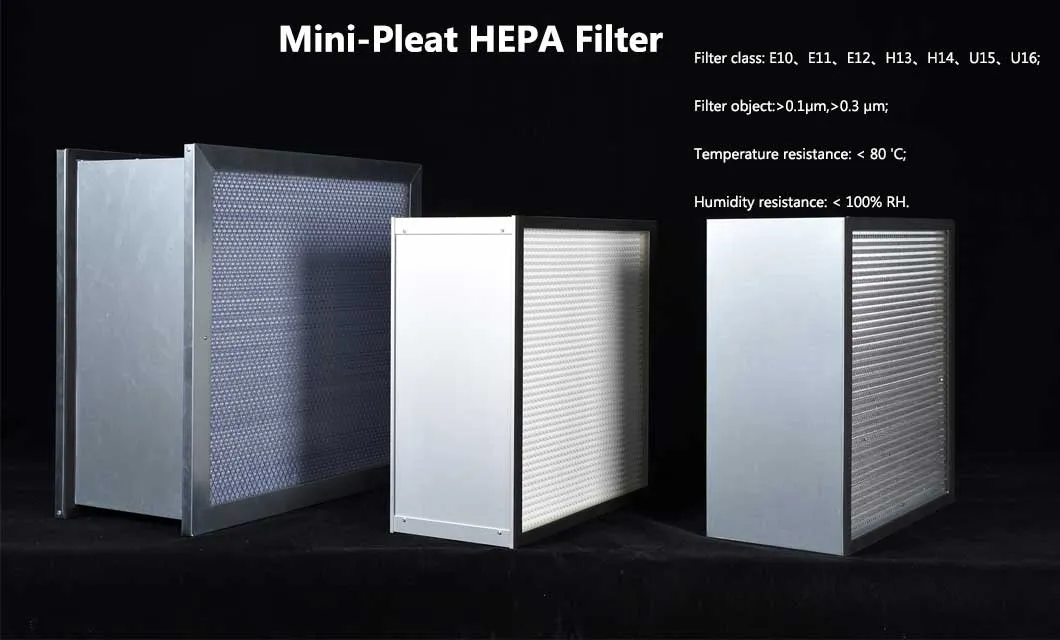

Mini-Pleat Hepa Filter Specifications
Grade	Standard (EN1822 / ISO 29463)	Efficiency (0.3µm)
H10-H12	E10-E12	≥85-99.5%
H13	HEPA	≥99.95%
H14	HEPA	≥99.995%

Technical Parameters

Air Volume and Size Range:
• Thickness (D): 25mm (ultra-thin), 50mm, 69mm
• Panel sizes (W×H) typical: 305×305mm, 610×610mm, 915×610mm, 1170×570mm

Rated Air Volume:
• 305×305 (25mm): ≈250m³/h
• 610×610 (69mm): ≈1000m³/h
• 1170×570 (69mm): ≈1800m³/h

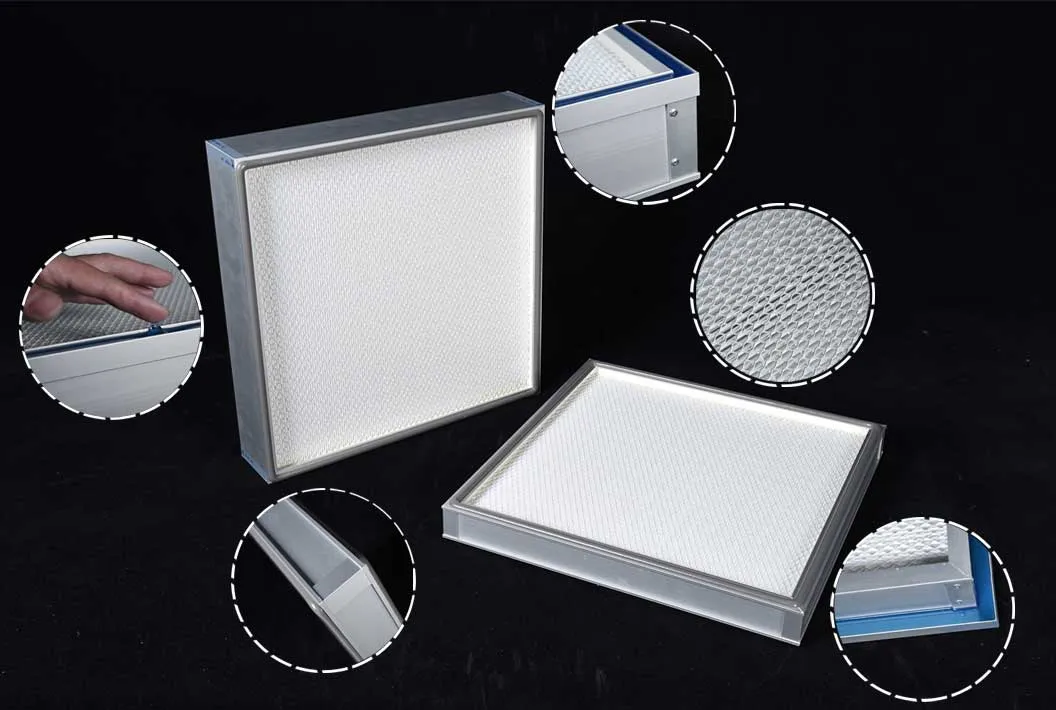

Resistance:
• Initial resistance: ≤0.45m/s (Customizable ≤120Pa)
• Final resistance: Recommended ≤400-600Pa

Advantages & Features

Design without partitions: Hot melting and molding replaces traditional aluminum partitions for a self-supported structure.
High-Quality Media: Options include ultrafine glass fiber, synthetic fiber, PTFE, and PP.
Superior Sealing: Hot melt EVA or PU foam ensures zero leakage at the edges.
Frame Strengthening: Double-sided metal mesh support for enhanced structural stability.
Environmental Adaptation: Continuous operation up to 80°C and 100% RH humidity adaptation.

Application Scenarios

Clean room terminal air filtration (Pharmaceuticals, Semiconductors, Medical).
Air treatment devices such as AHU and FFU systems.
High-demand public spaces and commercial buildings.
Commercial appliances including vacuum cleaners and air purifiers.

Frequently Asked Questions

What is the filtration efficiency of an H13 HEPA filter?

The H13 grade filter provides a high filtration efficiency of ≥99.95% for particles as small as 0.3μm, making it ideal for cleanrooms and medical environments.

What is the advantage of a mini-pleat design over traditional filters?

The mini-pleat design uses hot-melt spacing instead of aluminum separators. This reduces the filter's weight and depth while providing a larger filtration surface area and lower resistance.

Can these filters be customized for specific dimensions?

Yes, we offer fully customized services for frame materials (Aluminum, ABS, Stainless Steel) and dimensions (Width, Height, and Depth) to fit your specific equipment.

How often should the HEPA filter be replaced?

While it depends on the air quality, we recommend replacing the filter once the resistance reaches the final threshold of 400-600Pa to ensure optimal airflow and system protection.

Are these filters suitable for high-humidity environments?

Yes, our HEPA filters are designed with 100% RH humidity adaptation, making them suitable for various industrial and medical humidity conditions.
