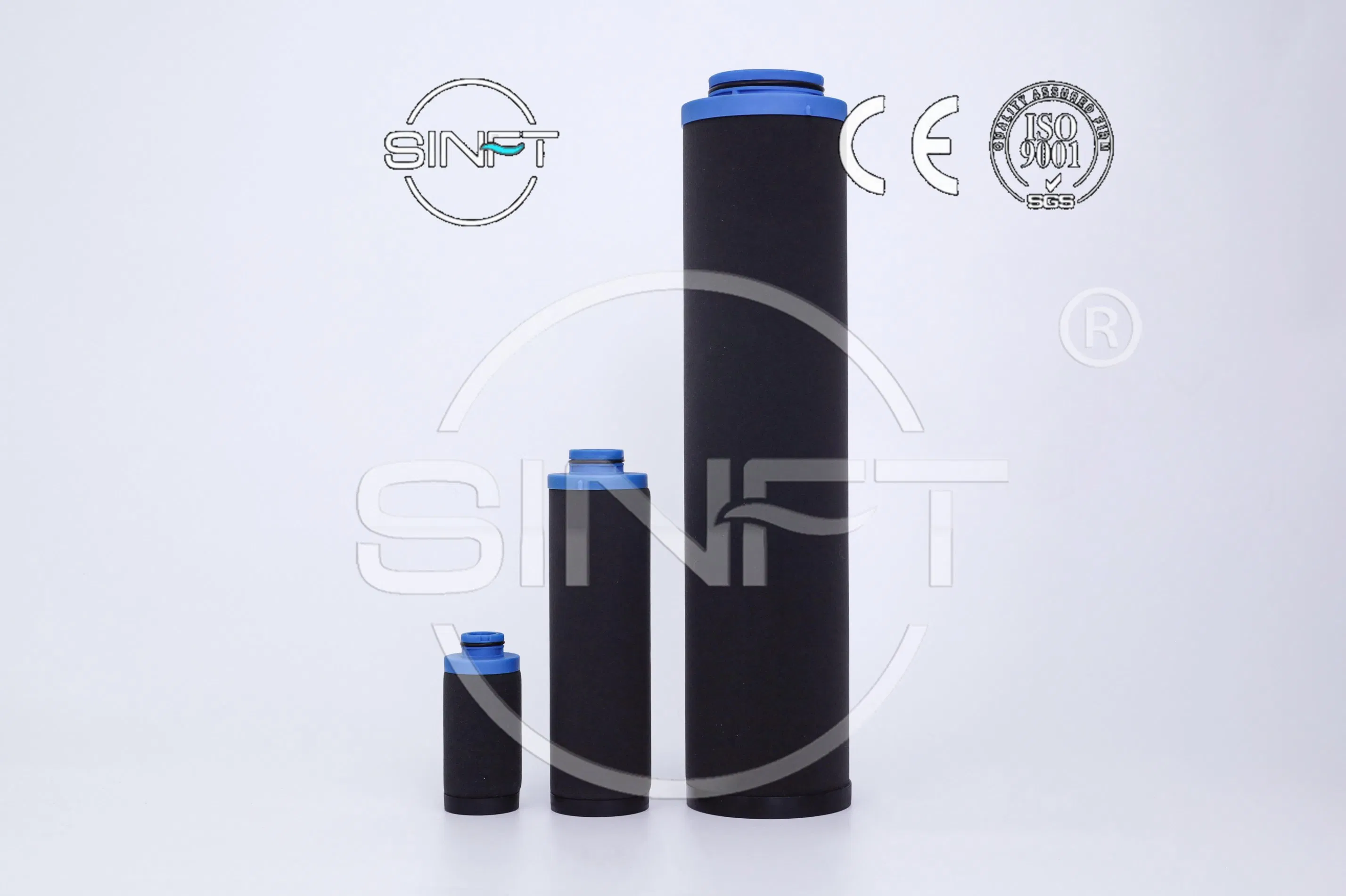

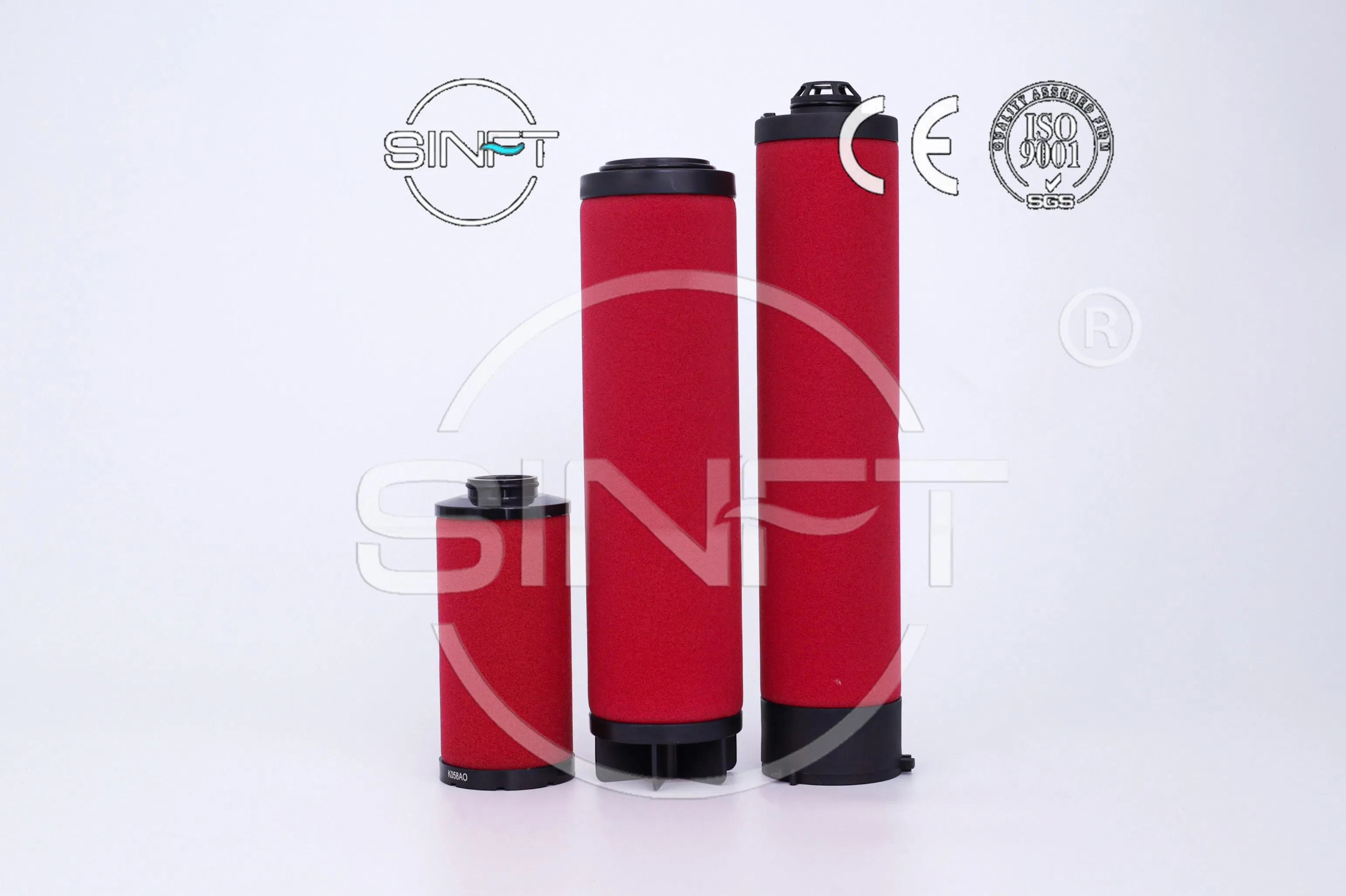

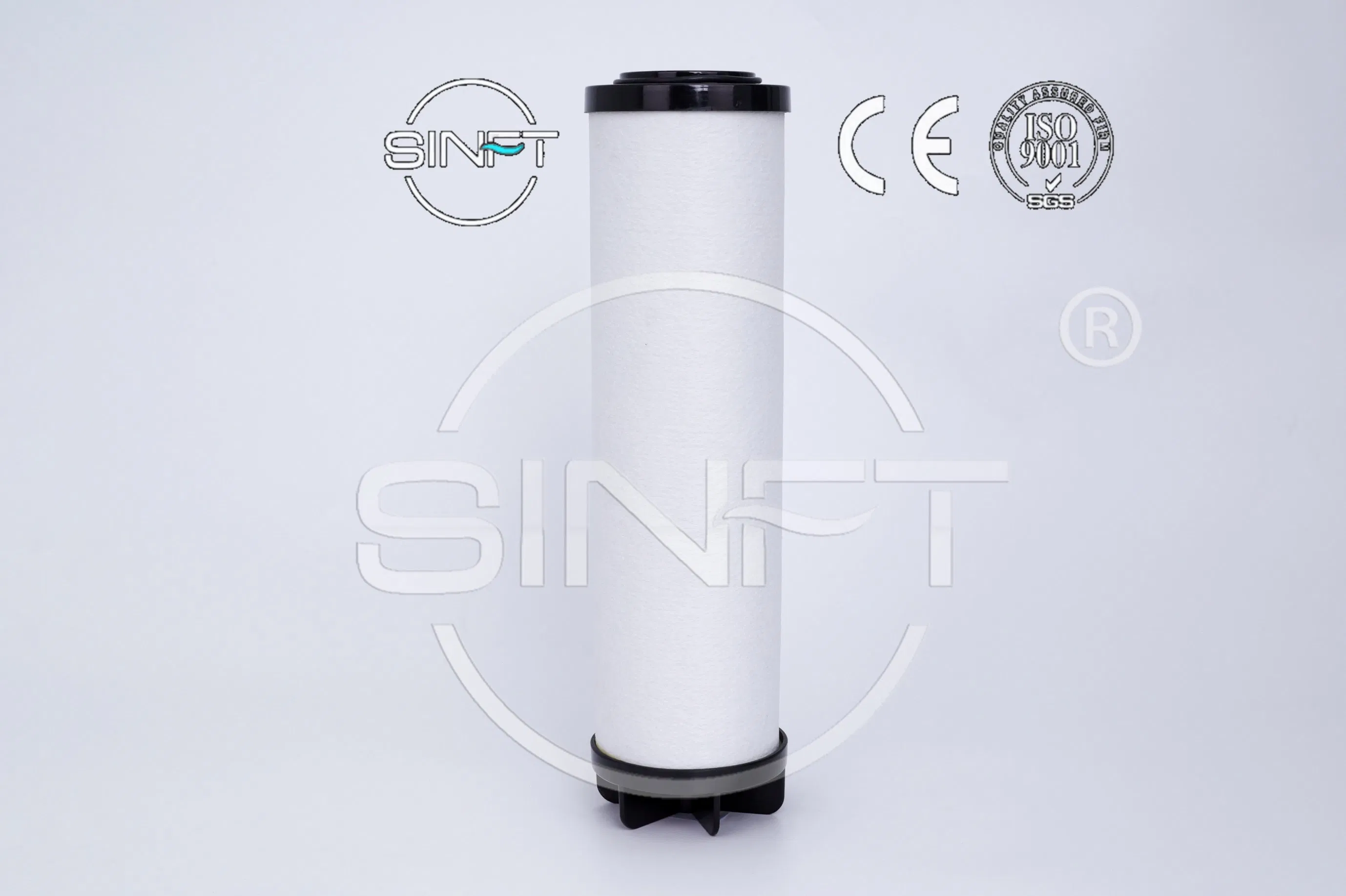

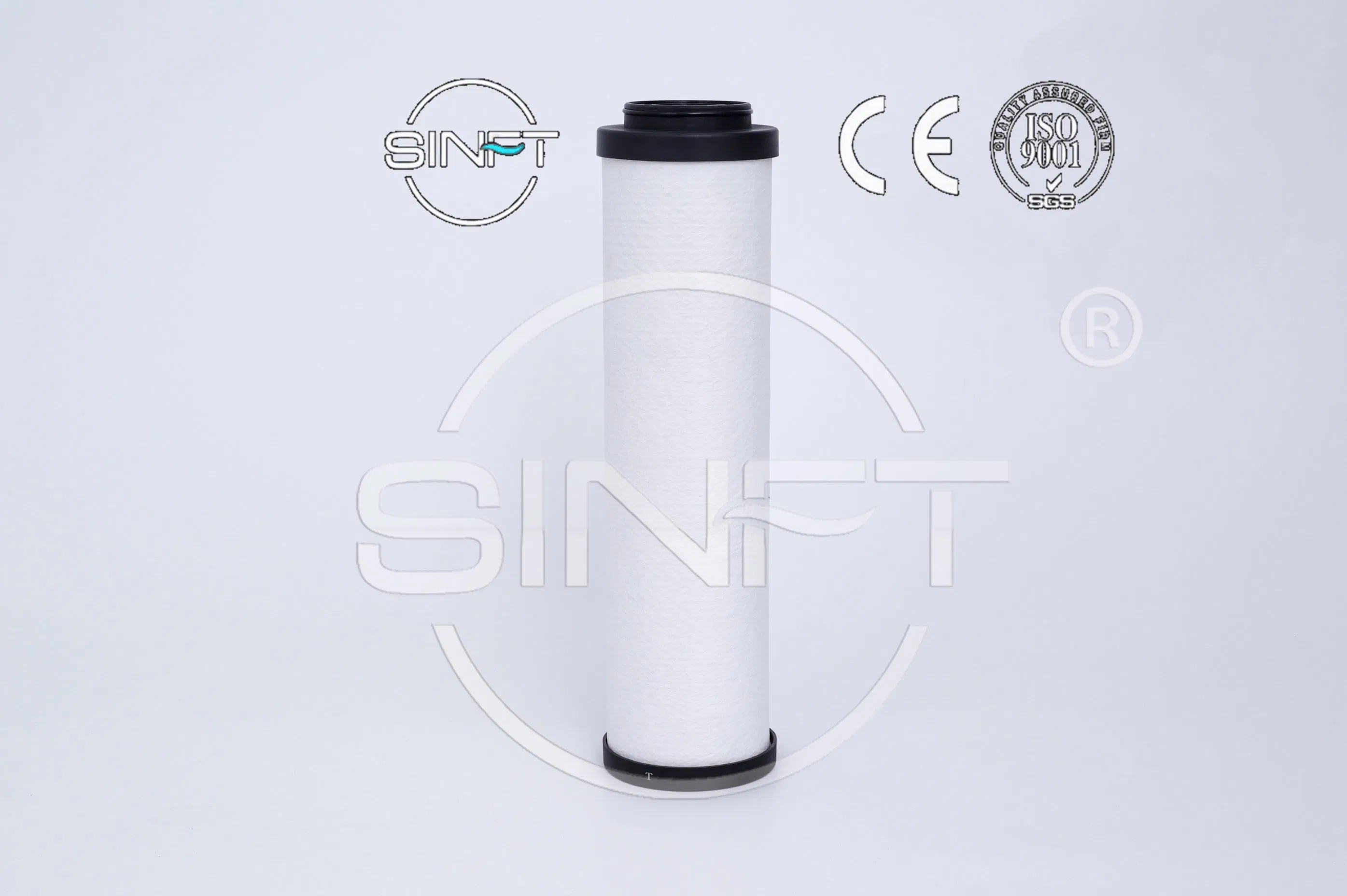

Replacement Compressed Air Line Filter Element for Atlas Dd60

1 / 5

Replacement Compressed Air Line Filter Element for Atlas Dd60

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DD60

Type

Air Filter

Filter Connector

Filtration Grade

1μm

Activated Carbon

Residual Oil

1ppm

After Warranty

Online Support

Application

Compressed Air HEPA Filters

Transport Package

Carton

Specification

glassfiber

Origin

China

HS Code

84219990

Application and Function

Compressed air line filter elements are widely used in compressor air systems. They are installed at the front and back of drying machines to effectively filter out oil, water, tiny particles, and other contaminants, ensuring the cleanliness of the compressed air.

◈

Contaminant Removal: Effectively removes oil, water, and debris to provide high-quality air supply.

◈

System Protection: Safeguards downstream pipes, valves, and pneumatic components from damage.

◈

Advanced Construction: Manufactured from epoxy resin and silicon-free fibers, reducing pressure drop by up to 40%.

◈

Efficiency: Designed for low maintenance costs and low energy consumption.

Performance Characteristics

✔

Complies with international standards for compressed air quality ISO8573-1:2010.

✔

Fluororubber sealing ring ensures absolute sealing and temperature resistance from -20 ºC to 280 ºC.

✔

Composite filtration medium technology provides excellent efficiency and high pollution absorption capacity.

✔

Advanced design with bottom support circular discharge for lower pressure drop and easy maintenance.

✔

Multilayer borosilicate fiber material is resistant to high temperatures and chemical corrosion with high void ratio.

Frequently Asked Questions

Q1: What is the filtration grade of the DD60 filter element? A1: The DD60 features a 1μm filtration grade, making it highly effective at removing fine particles.

Q2: How does this element help reduce energy costs? A2: The silicon-free epoxy resin fiber construction is designed to minimize pressure drop by up to 40%, leading to lower energy consumption.

Q3: What is the temperature range for the sealing ring? A3: The fluororubber sealing ring is designed to withstand temperatures ranging from -20 ºC to 280 ºC.

Q4: Does the filter comply with international quality standards? A4: Yes, the element complies with the international standard for compressed air quality, ISO8573-1:2010.

Q5: What material is used for the filtration medium? A5: It utilizes multilayer borosilicate fiber, which provides excellent resistance to chemical corrosion and high temperatures.

Q6: Where should this filter element be installed? A6: It is typically installed at the front and back of drying machines within a compressed air system to maximize protection.
