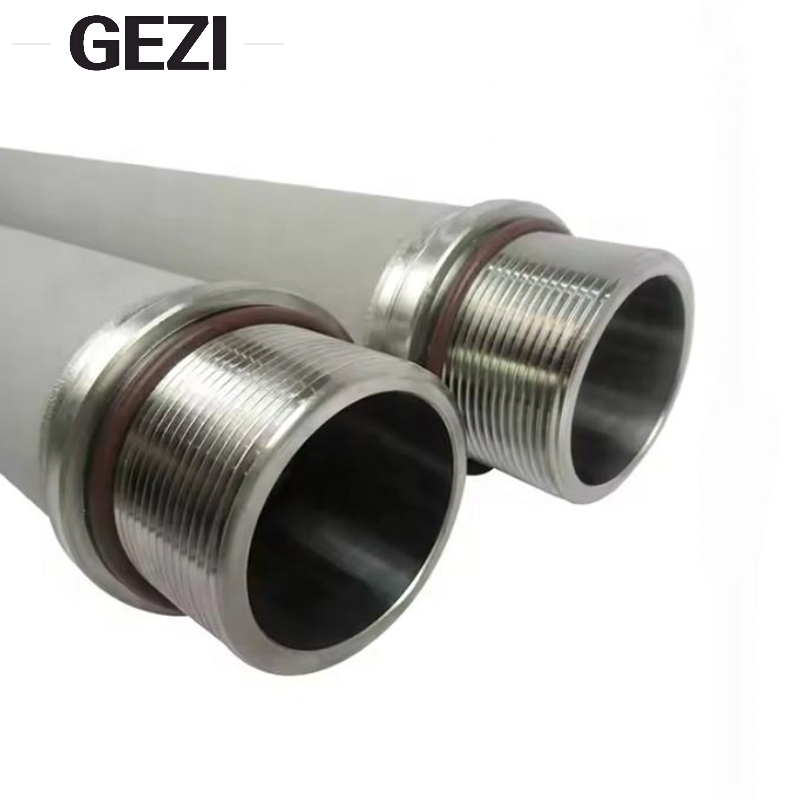

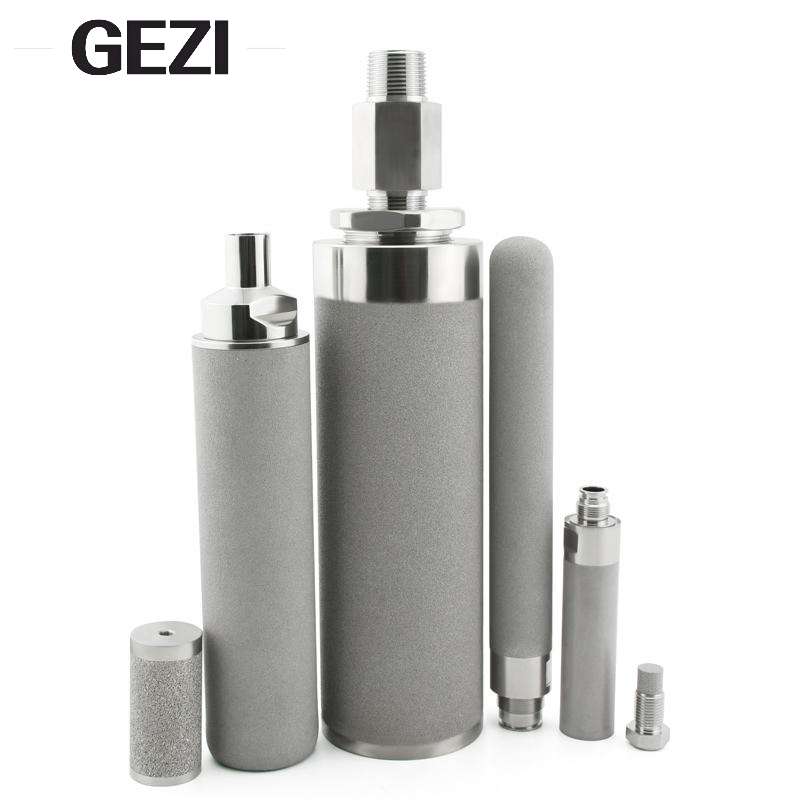

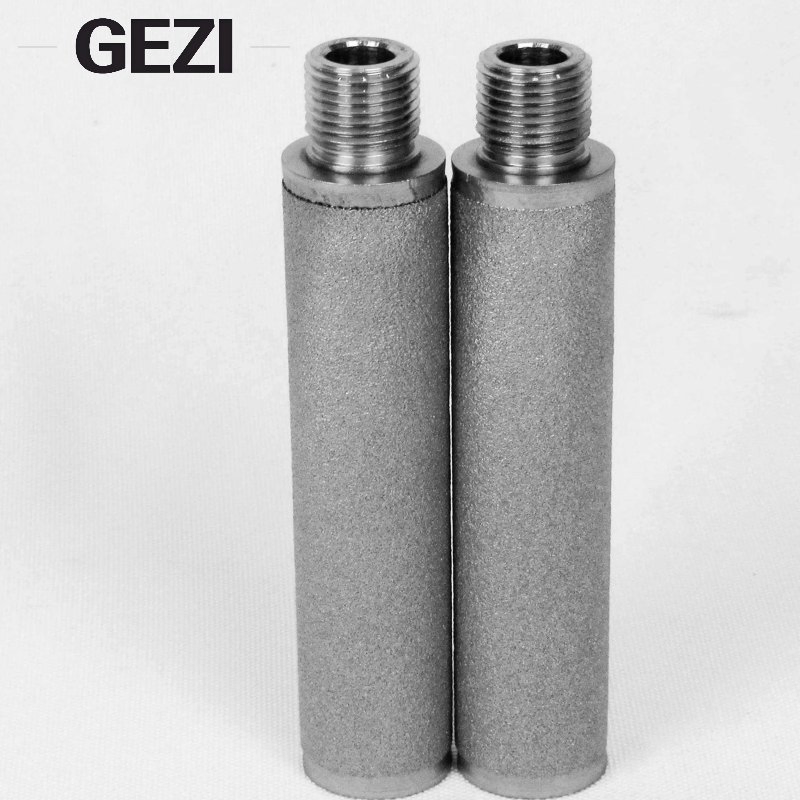

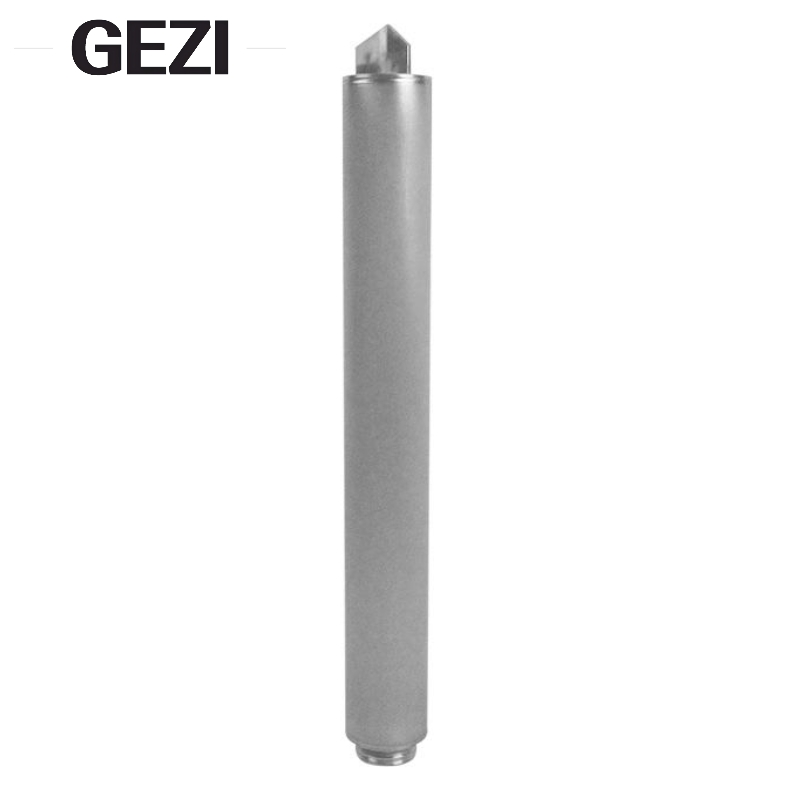

Custom Sizes Sintered Stainless Steel Filter Element for Air Compressors

1 / 5

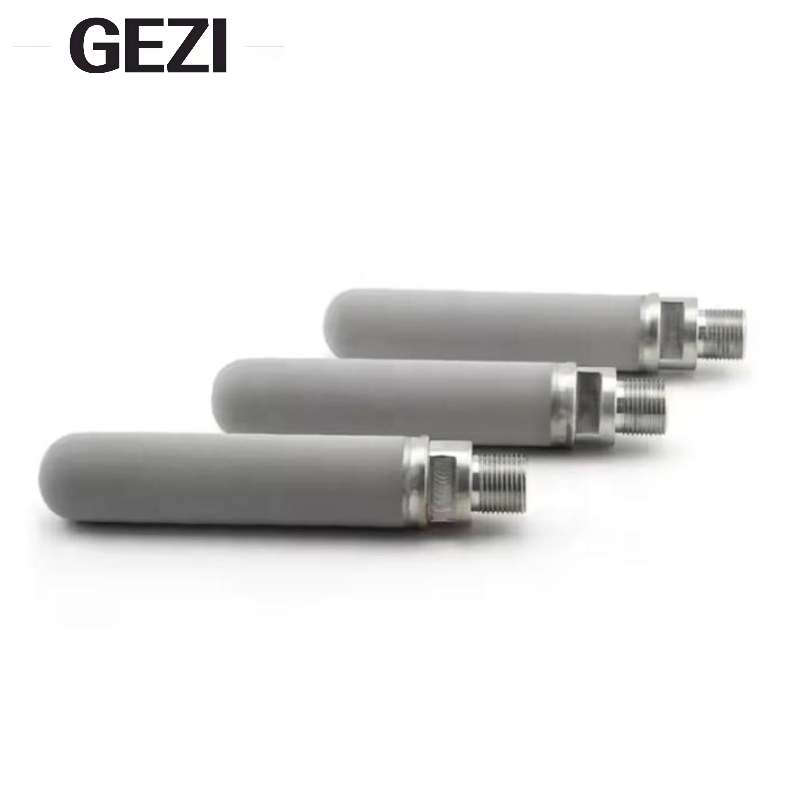

Custom Sizes Sintered Stainless Steel Filter Element for Air Compressors

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Type:

Air Filter

Filter Connector:

Threaded, Flanged, Clamp

Filtration Grade:

Medium Filter

Pore Size:

10-100 Microns

Porosity:

30%-60%

Filtration Rating:

1, 5, 10, 25, 50, 100 Microns

Surface Treatment:

Nickel-Plated, Chrome-Plated, Polished

Filter Material:

Sintered Stainless Steel Powder

Seal Material:

Silicone, FKM, EPDM, etc.

Package Size:

15.00cm * 10.00cm * 10.00cm

Origin:

China

HS Code:

730799

★

Product Description

High Temperature Resistant Stainless Steel Sintered Filter Element
Factory custom micron metal sintered powder filter for air compressors and industrial fluid filtration.

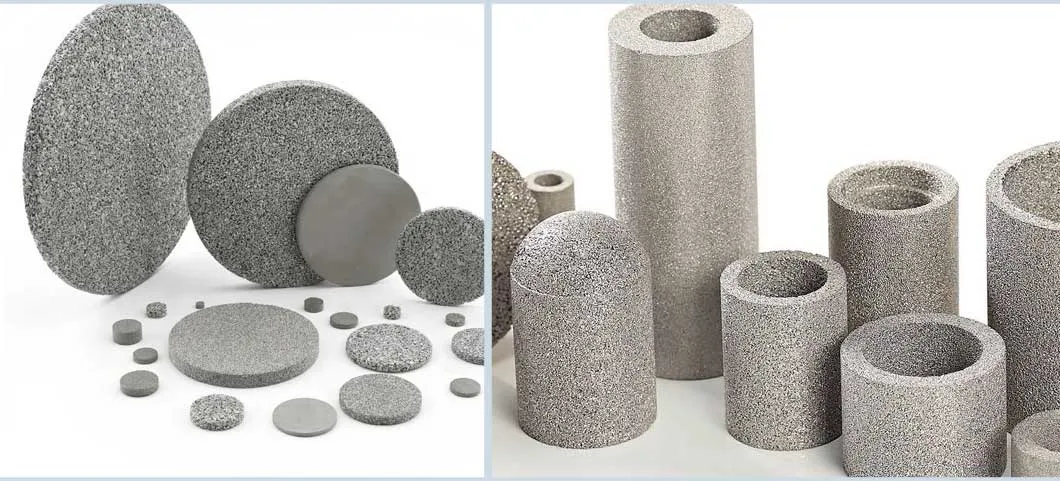

Sintered Stainless Steel Filter Element Technical Data
Material	Sintered Stainless Steel Alloy (304/316)
Filtration Rating	1, 5, 10, 25, 50, 100 microns
Working Temperature	-200°C to +800°C (-328°F to +1472°F)
Flow Rate	1-100 L/min (Depending on filter size)
Application Scenarios	Steam, hot oil, natural gas, strong acids, organic solvents, Pharmaceutical/Food/Electronics.

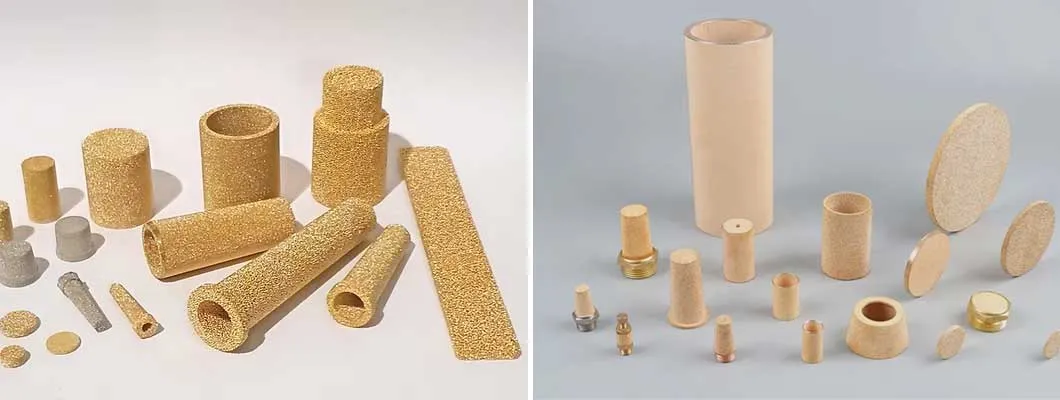

Sintered Bronze Filter Element Technical Data
Material	Sintered Bronze Alloy
Filtration Efficiency	Particle interception rate up to 99.98% at 5 µm
Working Pressure	0.3-5MPa (Up to 30MPa for specific cylinders)
Temperature Range	-250°C ~ 200°C (Oxidation); up to 450°C (Reduction)
Application Scenarios	Oil/water chemical filtration, Silencing, Compressed air purification, Precision instrumentation.

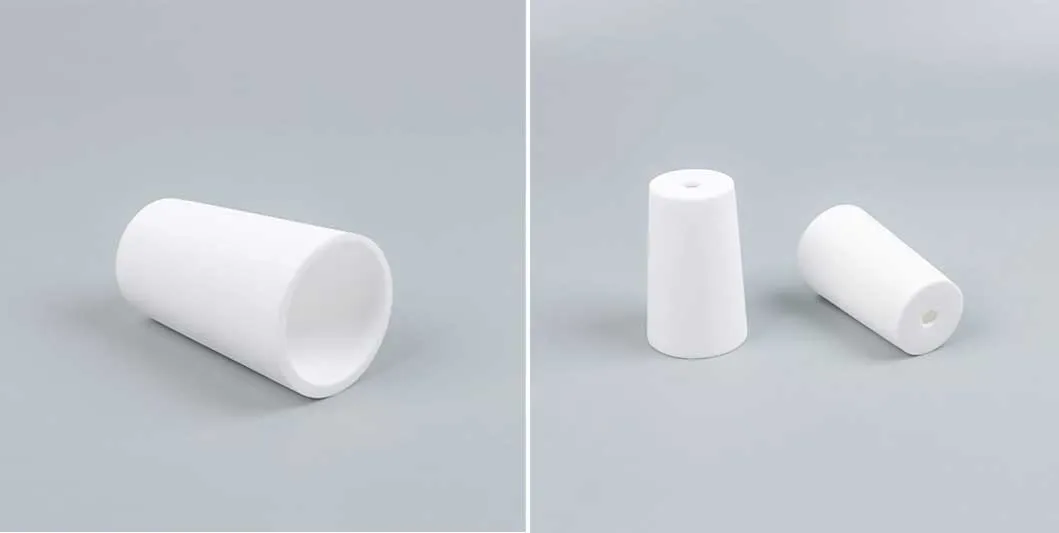

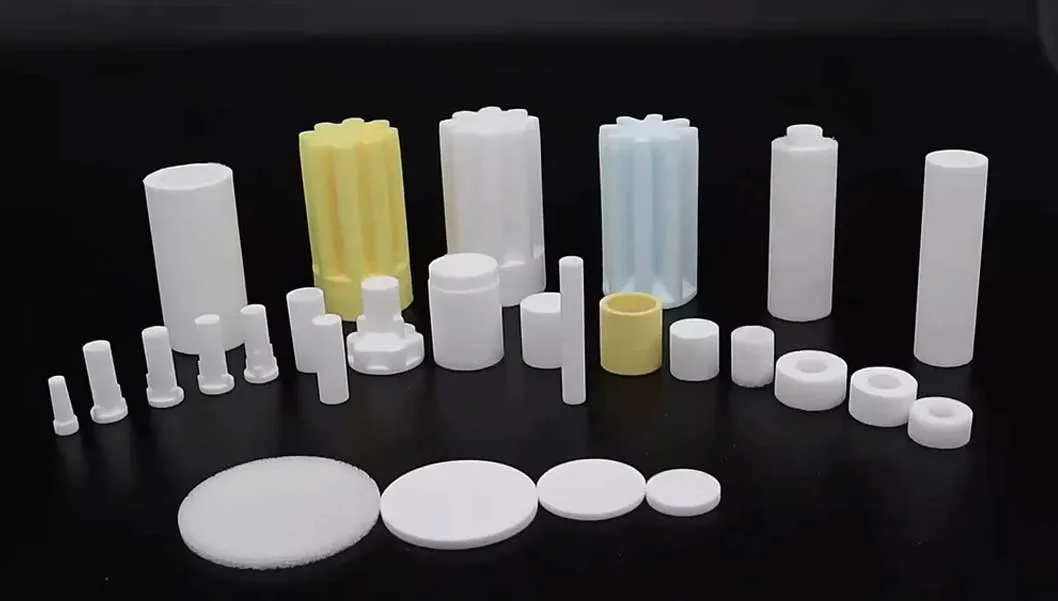

Sintered Plastic Filter Element Technical Data
Material	Polypropylene, Polyethylene, PTFE, etc.
Working Temperature	-50°C to 150°C
Connection Type	Threaded, Flanged, Clamp
Shape	Cylindrical

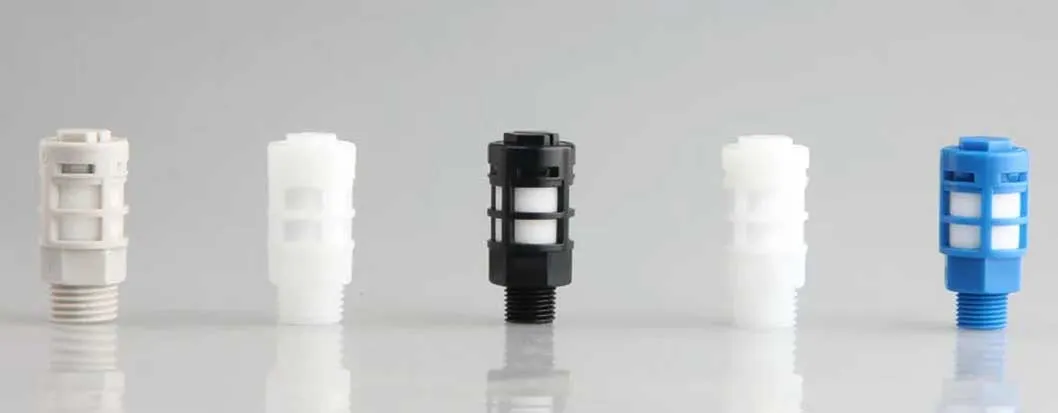

Application Scenarios	Gas filtration, Sound absorption, Medical laboratory equipment, Industrial dust-proof mufflers.

Frequently Asked Questions

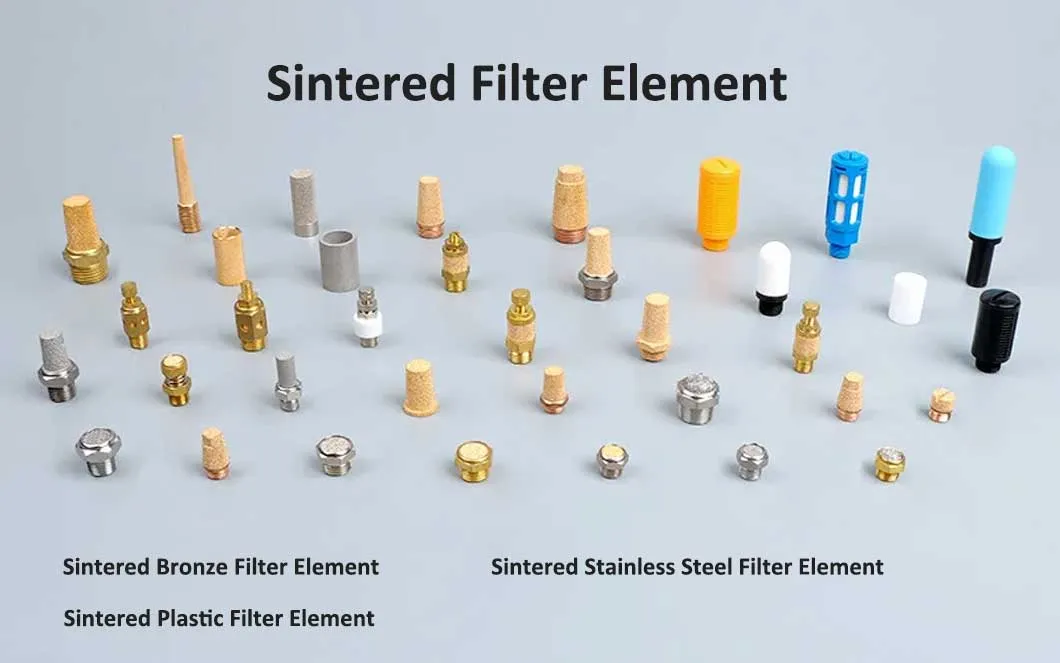

What materials are available for the sintered filter elements?

We offer a variety of materials including Sintered Stainless Steel (304, 316), Sintered Bronze Alloy, and various Sintered Plastics like Polypropylene, Polyethylene, and PTFE to suit different industrial environments.

What is the maximum temperature these filters can withstand?

The Sintered Stainless Steel elements are highly heat resistant, capable of operating in temperatures ranging from -200°C up to +800°C (-328°F to +1472°F).

Can the size and filtration rating be customized?

Yes, we provide custom sizes based on your specifications. The standard filtration ratings range from 1 to 100 microns, with customizable pore sizes between 10-100 microns.

What are the primary applications for Sintered Bronze filters?

Sintered Bronze filters are widely used for liquid and gas filtration, noise reduction (silencing), pressure stabilization, and removing water or oil mist from compressed air systems.

Are these filter elements suitable for corrosive media?

Absolutely. Our stainless steel sintered elements are designed to handle chemical corrosive media, including strong acids, alkalis, and various organic solvents without shedding particles.

What types of connections are supported?

To ensure easy integration into existing systems, our filters come with multiple connection options, including Threaded, Flanged, and Clamp connectors.
