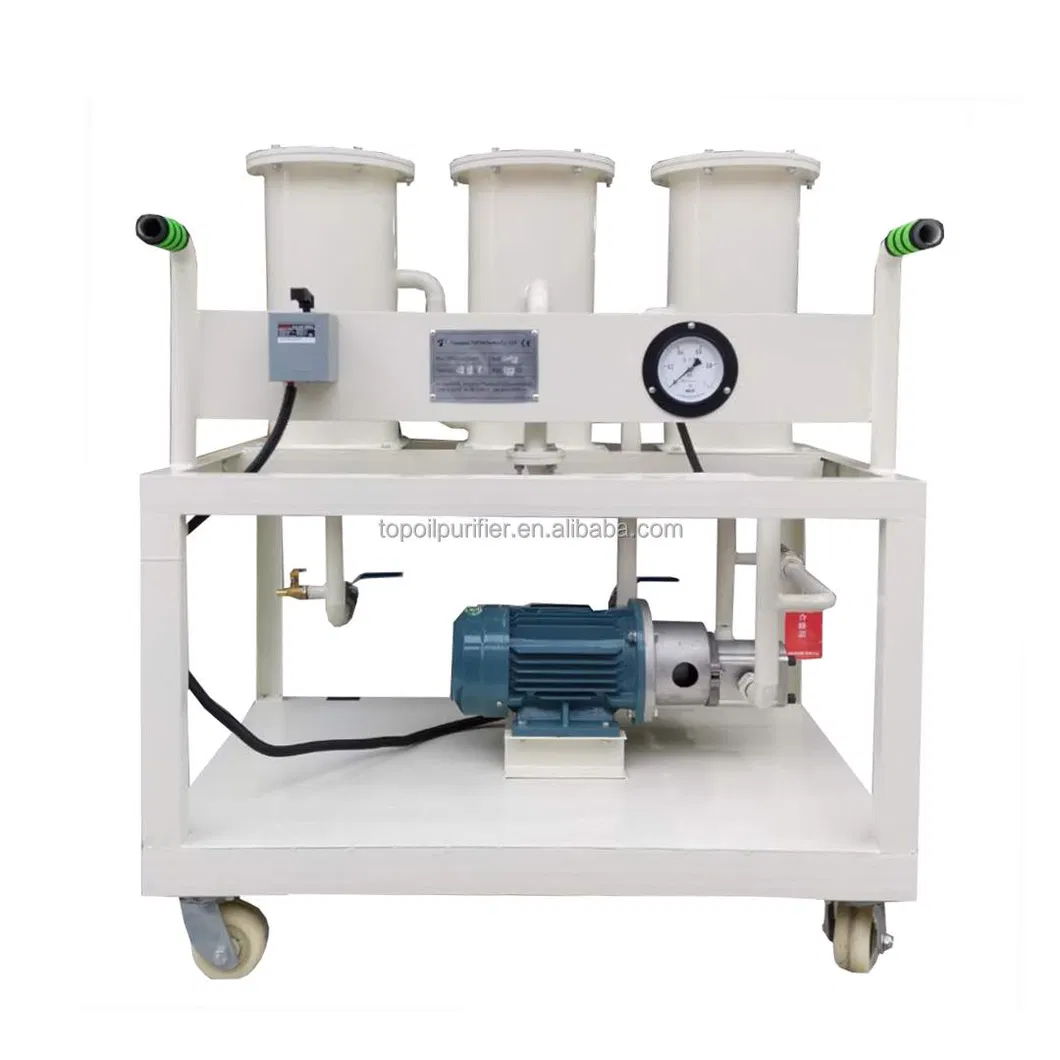

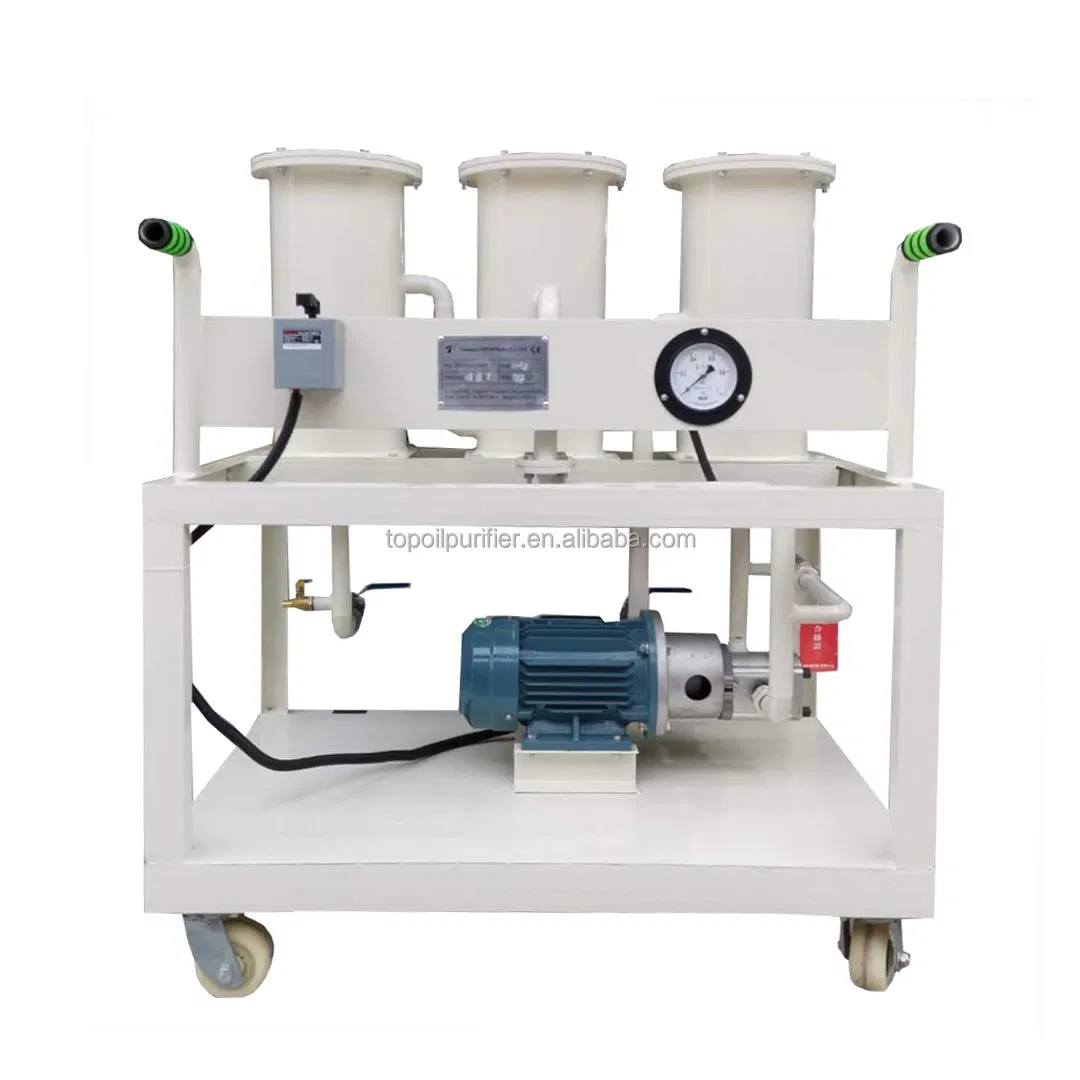

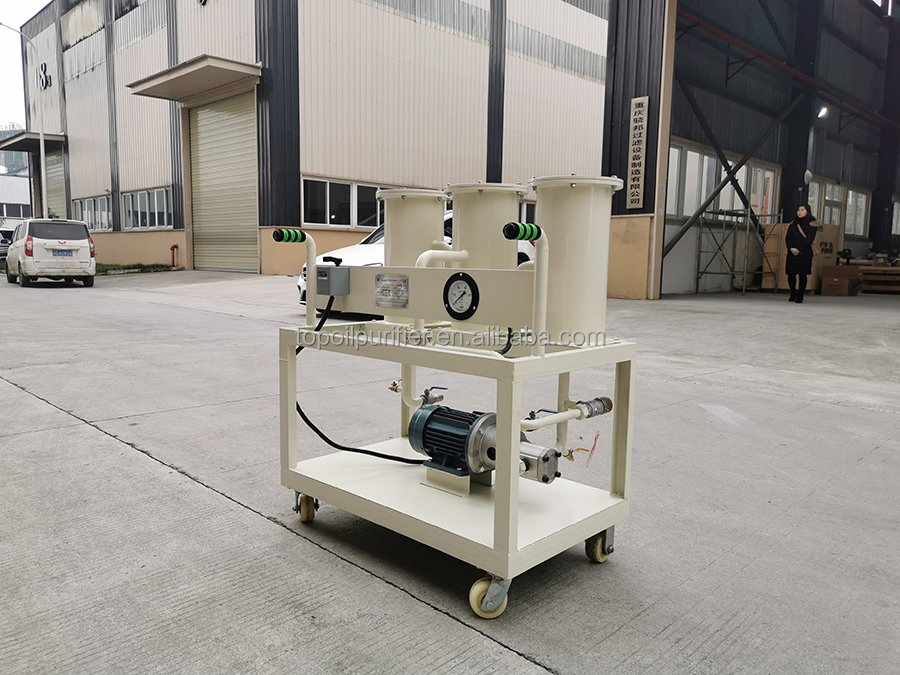

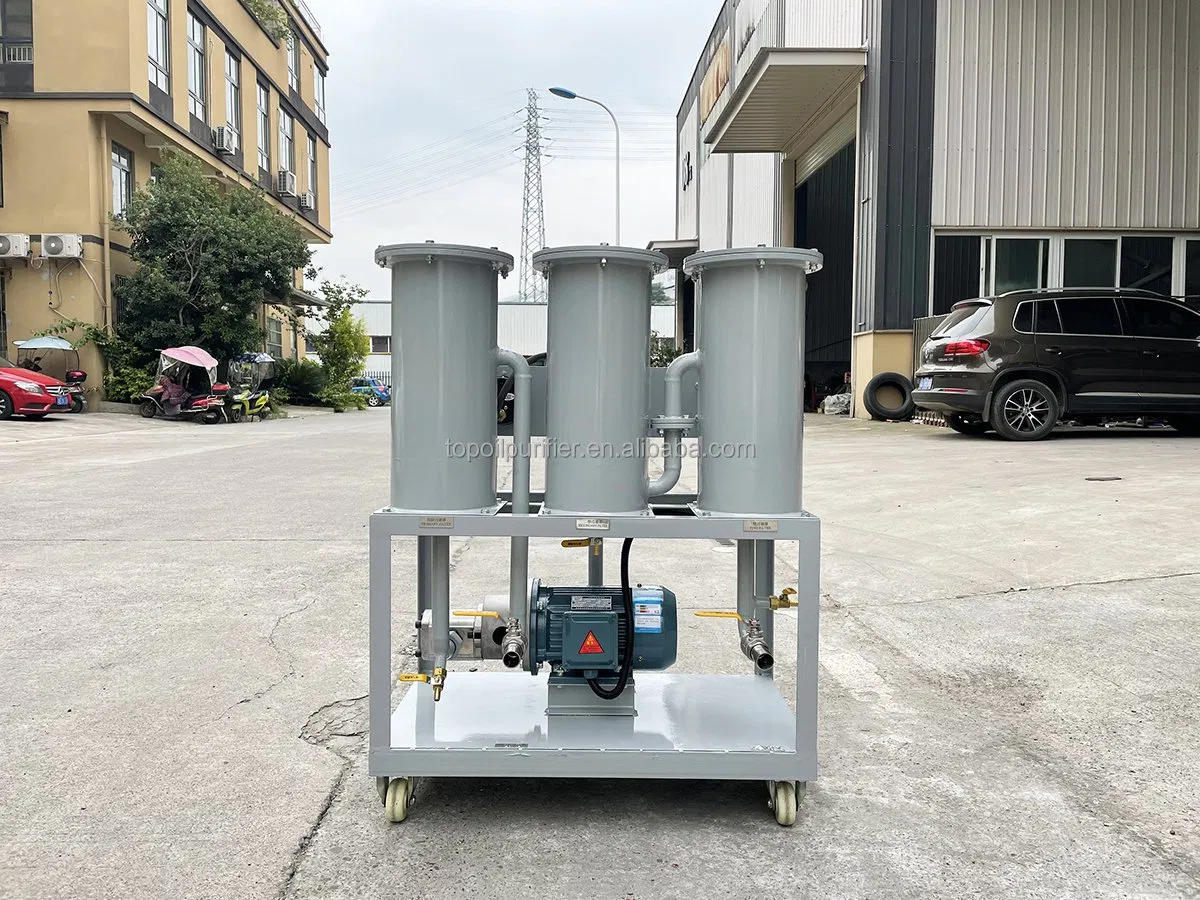

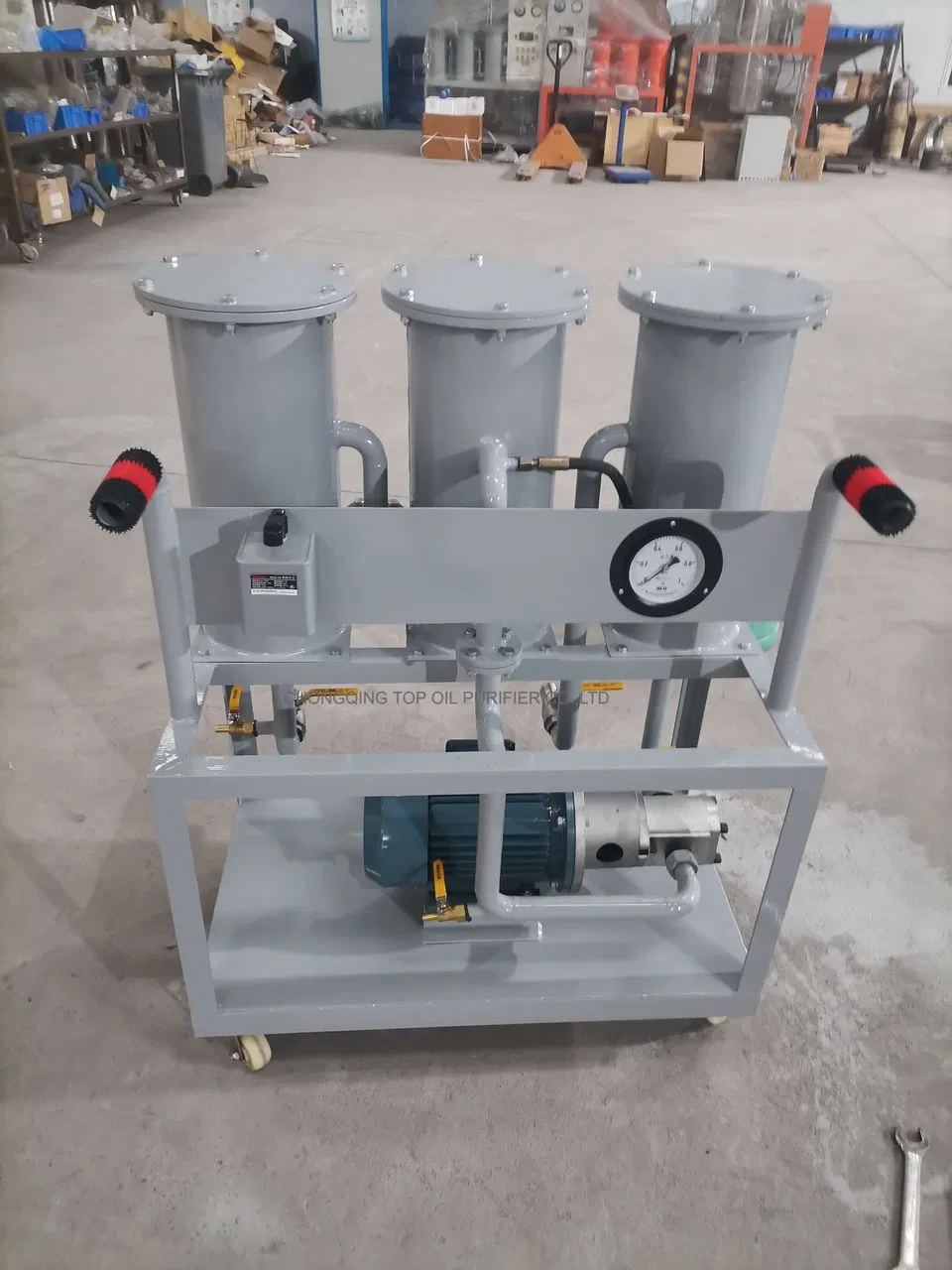

Waste Oil High Efficiency Impurity Removal Oil Filter System

Portable oil purifier JL is applied to insulation oil, lubricant oil, all kinds of mineral oil and vegetable oil filtering and delivery. This machine is low cost and easy to use with small size, portable, and light weight. It is widely used for machine tool, vehicle, oil tank, oil switch and mutual inductor's oil filling and filtering. The process cost is low, and there is no need to use paper filters.

Usage Applications

JL series portable oil purifier is widely used in factories, power plants, oil storage facilities, laboratories, and aviation. This machine can be used for motor oil, hydraulic oil, compressor oil, turbine oil, insulation oil, diesel oil, light oil, and vegetable oil.

Key Features

• Precise Filtration System: Multi-stage filters with step-by-step encryption to accommodate a large amount of pollutants and effectively remove mechanical impurities.
• Superior Material: Acid-resistance, alkali-resistance, and high-temperature resistance with excellent mechanical strength for a long service life.
• Portable Design: Small size, light weight, and cart design for easy and flexible operation without the need for filter paper.

Operation Steps

1. Ensure the grounding device is properly grounded.
2. Connect three-phase power supply (AC220V / 60HZ) and verify inlet/outlet oil hoses.

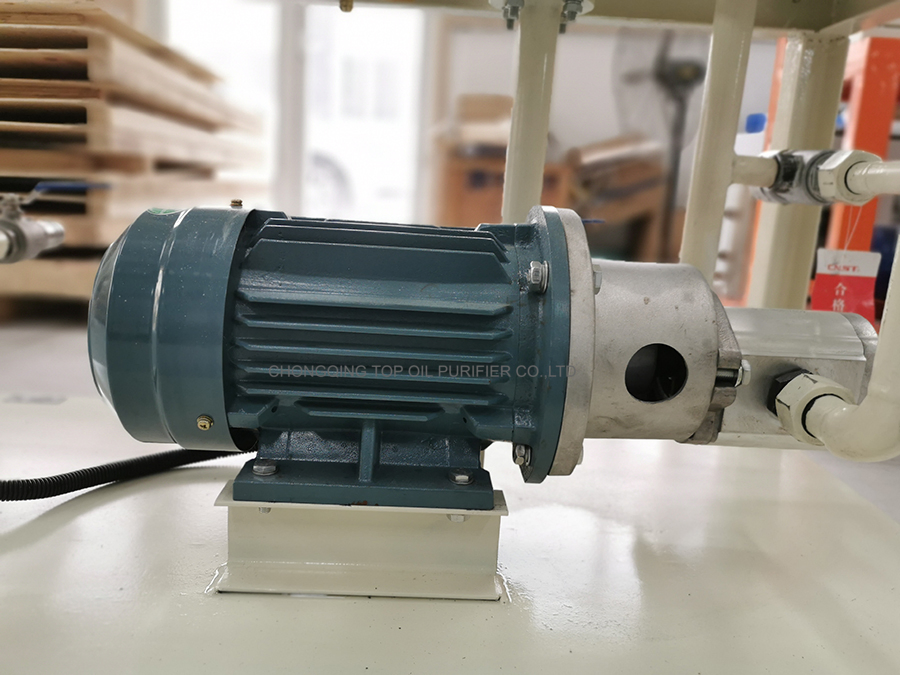

3. Check oil pump rotation direction (should be clockwise from motor side).
4. Start the oil pump and slowly open the inlet valve to begin filtration.
5. Monitor pressure; if gauge exceeds 0.3MPa, clean or replace the filter.
6. Shutdown: Close the oil pump and discharge remaining oil after processing.

Maintenance Tips

• Regularly observe the running condition of the motor and pump.
• When the pressure gauge exceeds 0.3MPa, it indicates a filter blockage that requires immediate cleaning.
• If the machine is stored for more than a month, place it in a dry environment with a protective cover.
