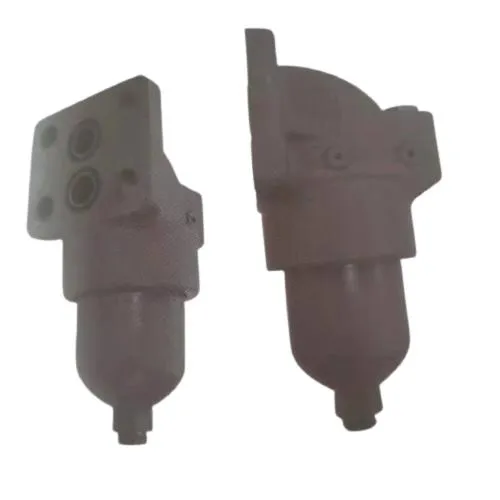

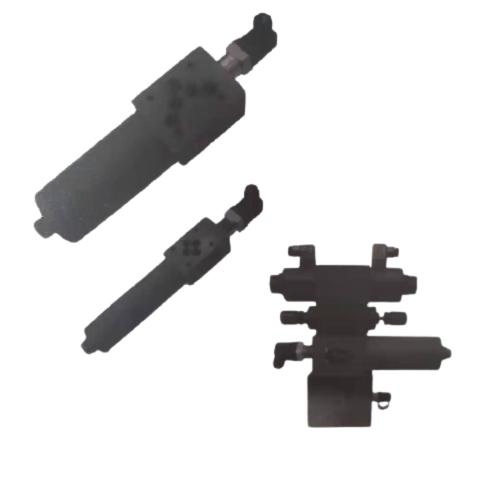

VKCH Side Plate Connection High Pressure Oil Filter
Our expertise lies in hydraulic and lubricating oil filtration, separation, and purification. We provide high-quality filter solutions widely used in industrial manufacturing, oil, and gas sectors.
Purpose: Used in hydraulic and lubrication systems to filter mechanical impurities and chemical reaction products. Keeps medium clean to prevent pollution, abrasion, and blockage.
Design pressure rating: 31.5Mpa
Filtration accuracy: 3um/5um/10um/25um
Alarm Device: Plug, Electrical switch or SPDT / 0.35bar sending
| Model | Way (mm) | Nominal Flow (L/min) | Pressure (MPa) | Accuracy (um) | O-ring | Element Model |
|---|---|---|---|---|---|---|
| VKCH30DN*GMH | 16 | 30 | 32 | 3 | 24×2.4 | VED2102K*4H |
| VKCH60DN*GMH | 20 | 60 | 32 | 5 | 32×3.1 | VED9802K*3H |
| VKCH110DN*GMH | 20 | 110 | 32 | 10 | 32×3.1 | VED9802K*6H |
| VKCH160DN*GMH | 32 | 160 | 32 | 25 | 40×3.1 | VED1624K*4H |
| VKCH240DN*GMH | 32 | 240 | 32 | 25 | 40×3.1 | VED1624K*7H |
| VKCH330DN*GMH | 32 | 330 | 32 | 25 | 40×3.1 | VED3300K*6H |
Purpose: Fine filtration of return oil in hydraulic systems to keep the oil tank clean.
Features: Compact design, convenient installation, high flow rate, small pressure loss, and easy element replacement.

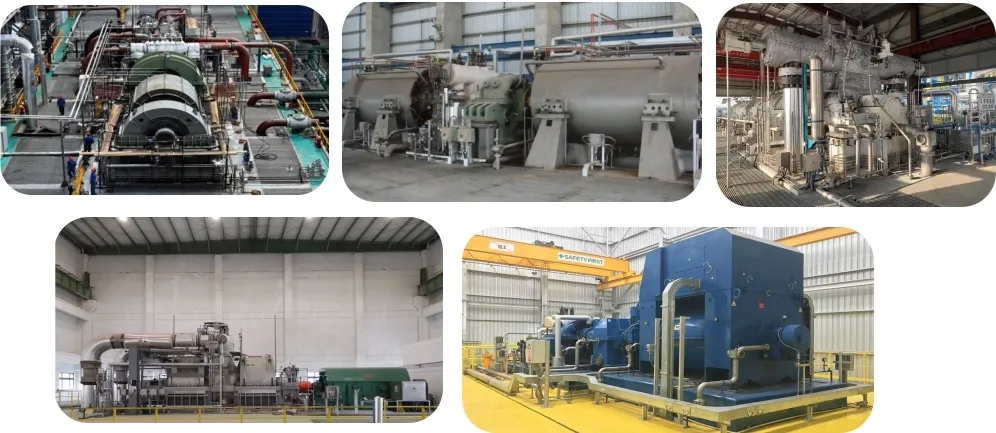

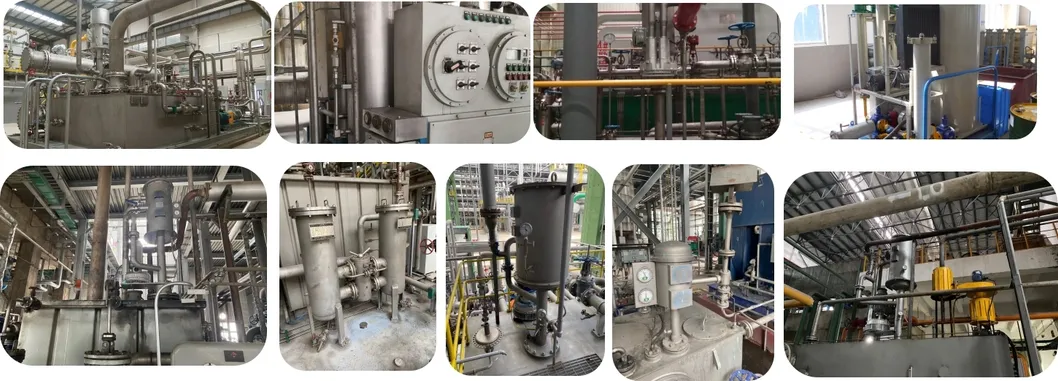

Widely applied in metallurgy, petrochemical, electric power, engineering machinery, and mining industries.
