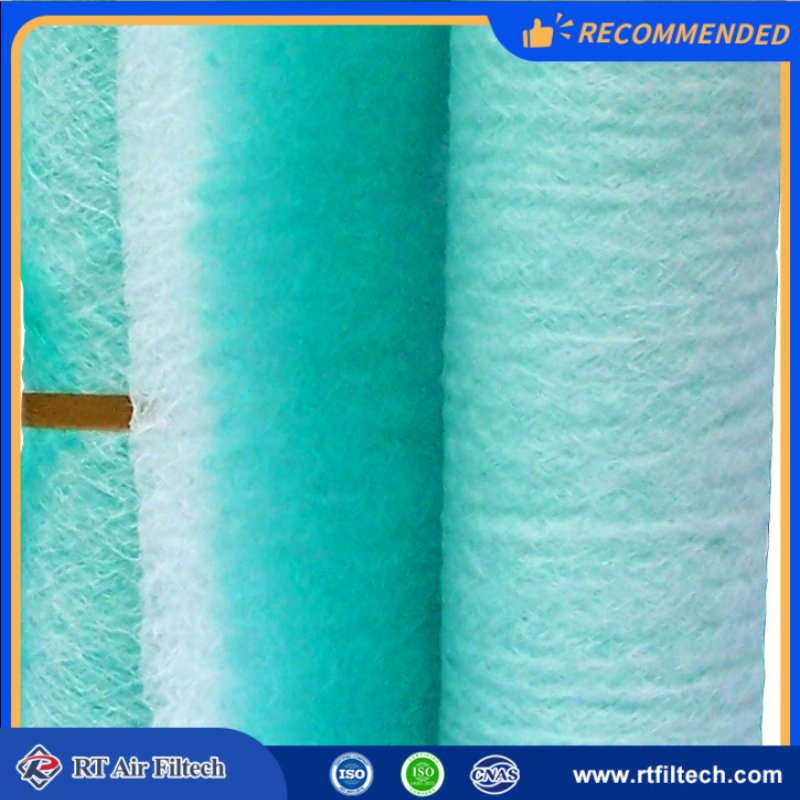

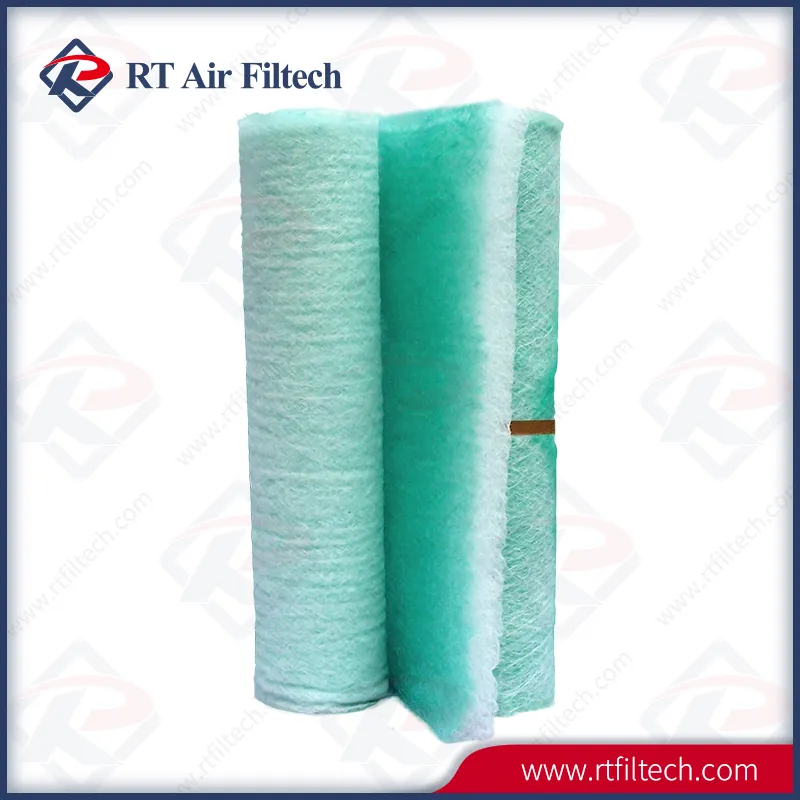

Paint Stop Floor Filter Rolls for Spray Booth Synthetic Fiberglass Material

Technical Parameters

Model NO.

PA-60

Medium Material

Fiberglass

Efficiency

G4

Filtration Grade

Pre Filter

Filtration Class

G3(En779) EU3(Eurovent)

Moisture Resistance

≤99%Rh

Final Pressure

200PA

Temp. Resistance

≤170℃

Package Size

25.00cm * 25.00cm * 100.00cm

Package Weight

8.000kg

Product Description

Spray Booth Filter Fiberglass Filter Paint Stop Filter Painting Room Filtration

Made of long fibreglass in non-woven way, large ventilation quantity and small resistance.
Good efficiency of the dust arrestance for the over-spray.

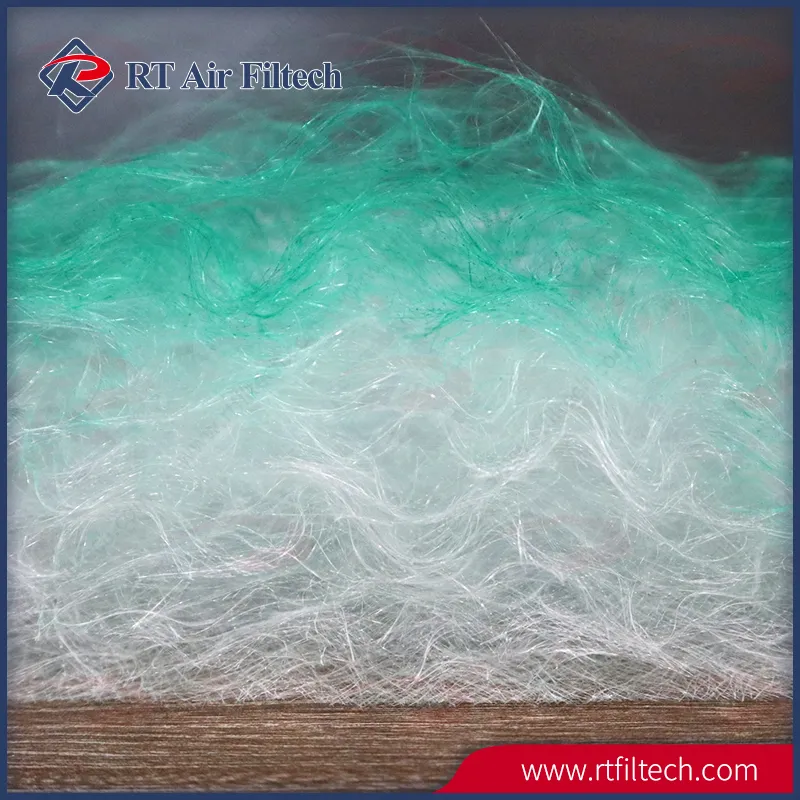

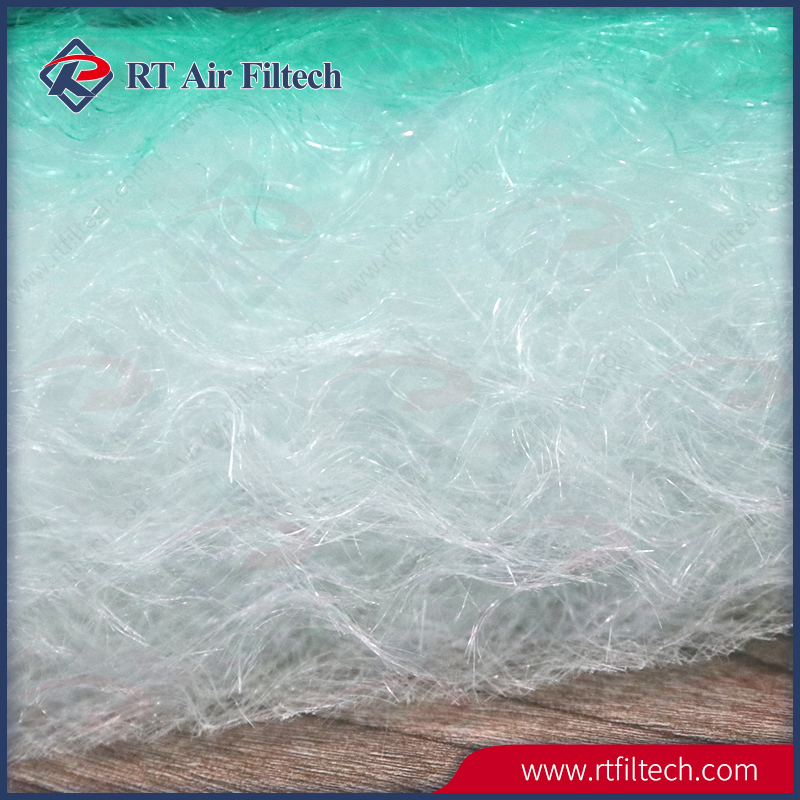

Fluffy fiberglass material with a progressive structure for efficient filtration.

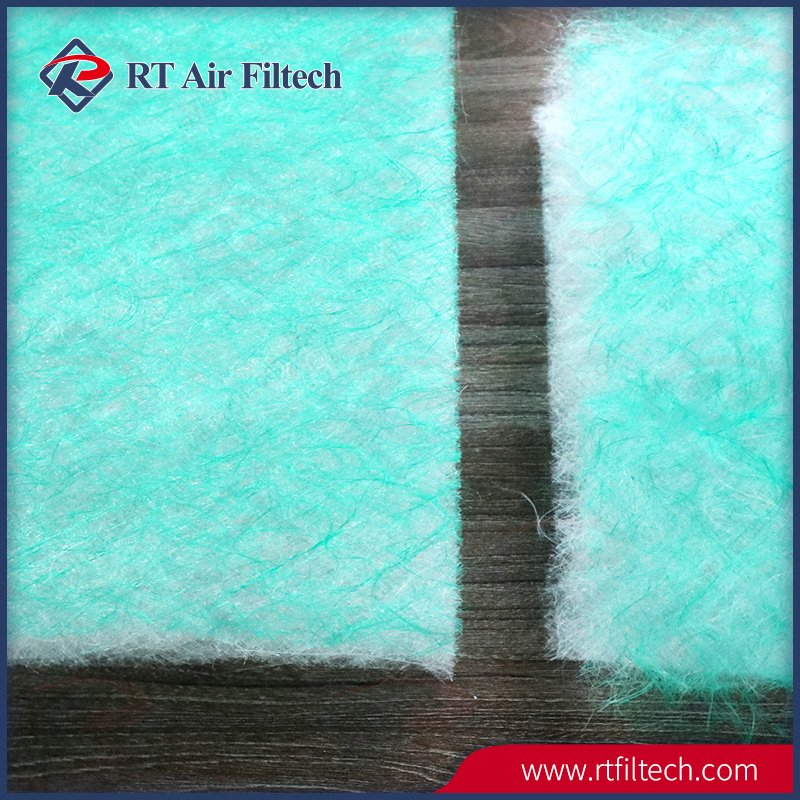

Dual color design: Windward side is green, leeward side is white.
Nonflammability with heat resistance up to 170ºC.
Flame retardant point in accordance with industrial standard DIN 4102 F1.
100% moisture resistant.
Compression packing saves transportation fare and storage space; regains original condition after decompression.

Specifications & Data

Model	Dimensions			Rated Velocity (m/s)	Initial Pressure (Pa)	Air Flow (m3/h)
Model	Length(m)	Width(m)	Thickness(mm)	Rated Velocity (m/s)	Initial Pressure (Pa)	Air Flow (m3/h)
PA-50/60	20	0.8/1/2	50~60	2.0	≤30	>3500
PA-75	20	0.8/1/2	70~80	1.75	≤40	>4000
PA-100	20	0.8/1/2	90~100	1.5	≤50	>4500

Filtration class	G3(EN779), EU3	Flammability	F1(DIN 53438), B1
Moisture resistance	≤99%RH	Filter particles	Paint mist, oil mist, dust
Avg. arrestance	PA-50/60 ≥90%, PA-75 ≥95%, PA-100 ≥98%

Frequently Asked Questions

What are your terms of packing?

Generally, we pack our goods in neutral PE bags to ensure protection during transit.

What are your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What are your terms of delivery?

We offer multiple delivery terms including EXW, FOB, CFR, CIF, and DDU.

How about your delivery time?

Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Can you produce according to samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures as required.

Do you test all your goods before delivery?

Yes, we conduct 100% testing on all products before delivery to ensure consistent quality.
