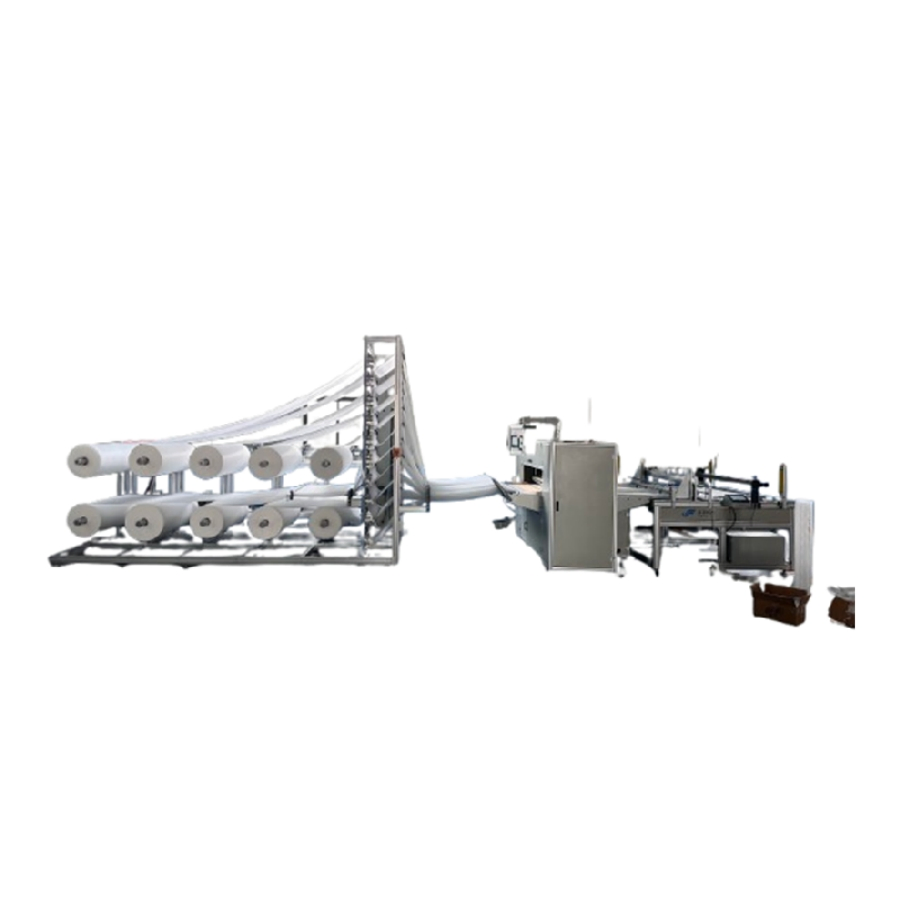

| Maximum product width | 1250mm |
| Fold height range | 4-50mm |
| Folding speed | 150 folds/min |
| Temperature control | Room temperature - 180°C (separate upper/lower control) |
| Operating voltage | AC 380V (three-phase, four-wire) |
| Total machine power | 14.5kW |
| Servo motor brand | Xinjie |
| Touch screen brand | Xinjie |
| Motion controller brand | Xinjie |
| Low-voltage electrical brand | Chint Electric |
| Fold height adjustment | Automatic adjustment by servo system |

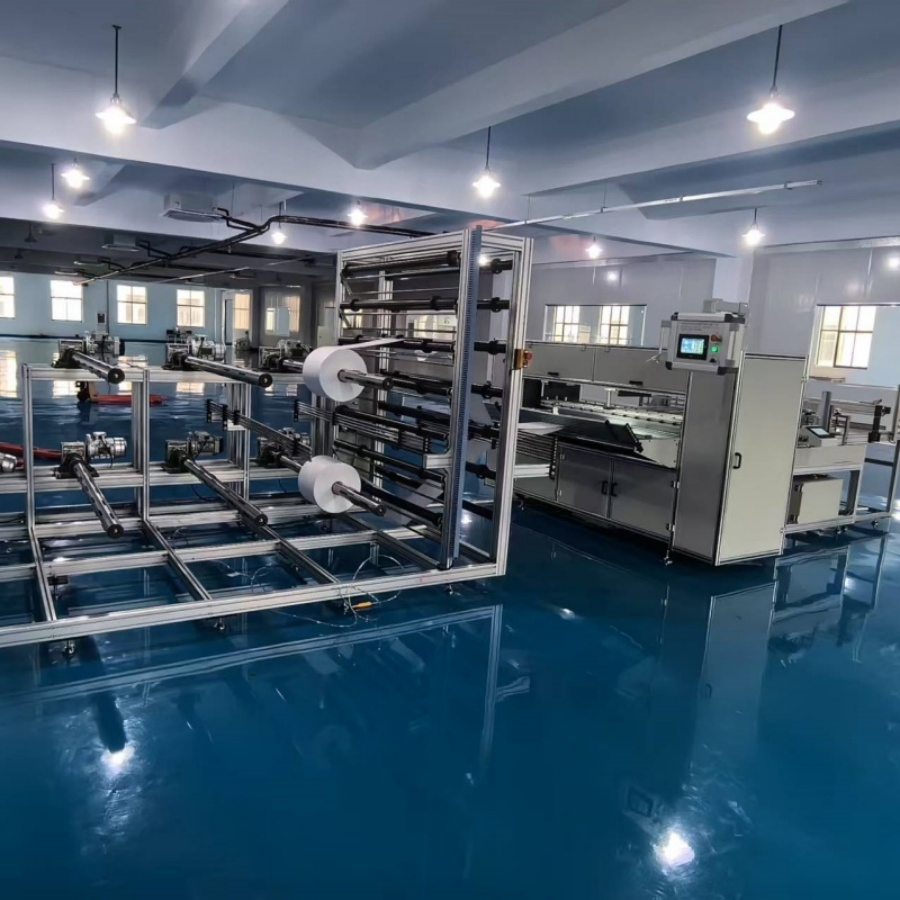

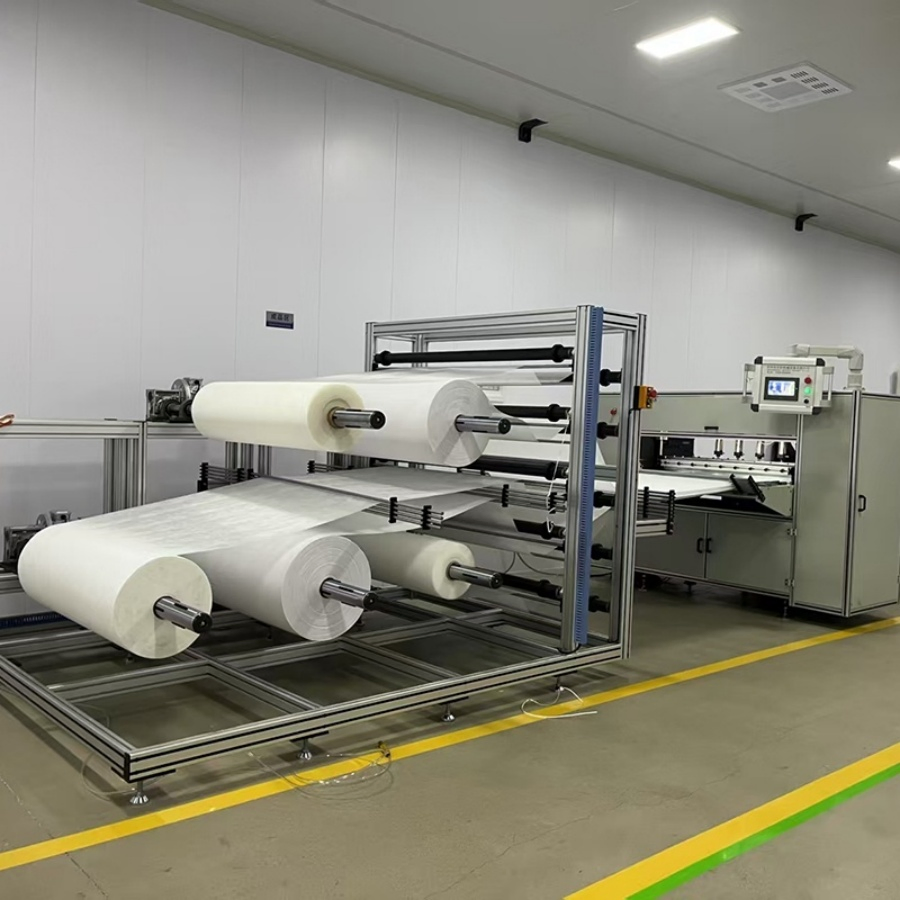

| 7-axis automatic unwinder technical parameters | |
| Effective unwinding width | 1050mm |
| Unwinding coil diameter | 600mm |
| Overall dimensions | 1700*3100*2100 mm |
| Packaging Weight | 600kg |
| Capacity for 7 coils with independent control | |
| Slitting and cross-cutting machine technical parameters | |
| Operating voltage | AC220V/50Hz |
| Number of slitting blades | 5 |
| Effective width | 1250mm |
| Overall dimensions | 2000*1750*1260 mm |
| Packaging Weight | 450kg |
| Equipped with light barrier protection | |

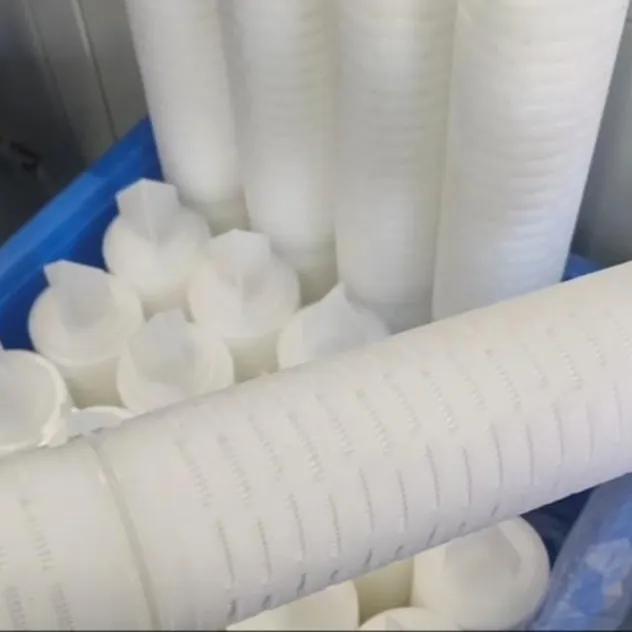

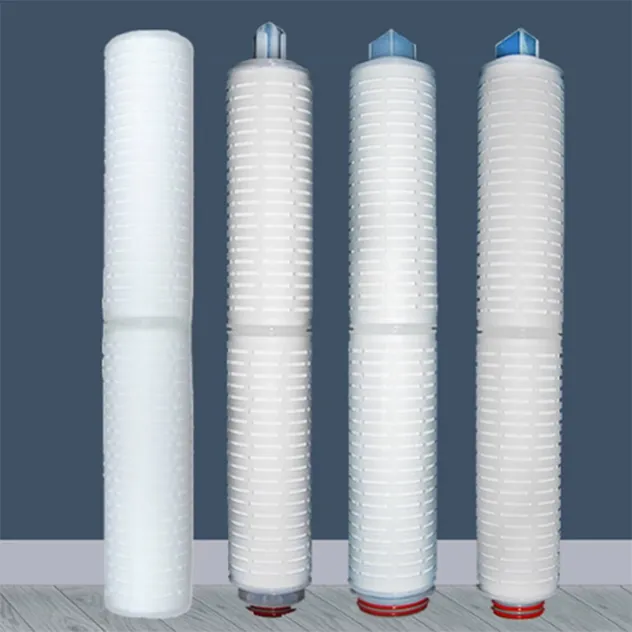

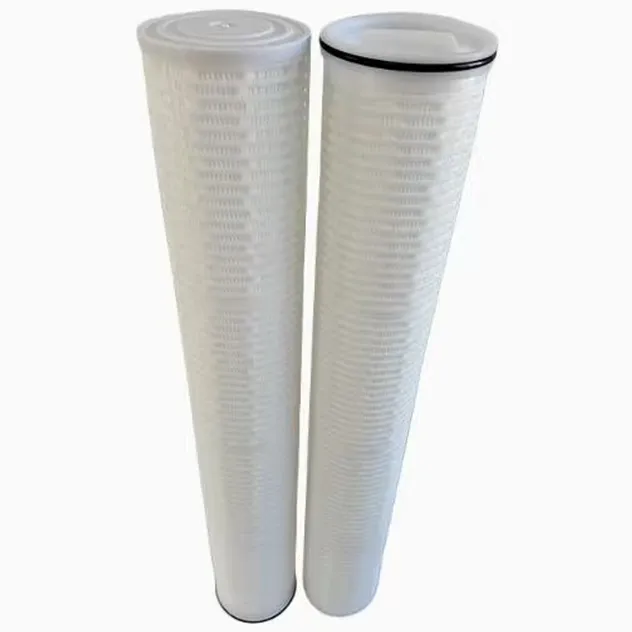

The filtration area of a single high-flow filter element is significantly greater than multiple standard elements, reducing equipment investment, space requirements, and maintenance workload.
Smooth water flow with minimal resistance results in lower initial pressure drop and stable operating pressure, extending pump life and reducing energy consumption.
Large effective filtration area allows for more pollutant storage, extending replacement cycles and saving on labor and filter costs.
With over 20 years of experience in the industrial filter field, we specialize in research, development, and production of equipment tailored to user requirements. Our production line includes 6th and 2nd generation knife folding machines, filter paper folding machines, aluminum foil corrugation machines, primary filter cotton rewinding machines, and spiral winding machines.
